Mesh Clear View 358 Security Fencing Anti Climb / Anti Theft 3" × 0.5" × 8 Gauge

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Mesh Clear View 358 Security Fencing Anti Climb / Anti Theft 3" × 0.5" × 8 Gauge

Mesh Clear View 358 Security Fencing Anti Climb / Anti Theft 3" × 0.5" × 8 Gauge
Mesh Clear View 358 Security Fencing Anti Climb / Anti Theft 3" × 0.5" × 8 Gauge Mesh Clear View 358 Security Fencing Anti Climb / Anti Theft 3" × 0.5" × 8 Gauge

Large Image :  Mesh Clear View 358 Security Fencing Anti Climb / Anti Theft 3" × 0.5" × 8 Gauge

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-ACF
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: Negotiable
Packaging Details: 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability: 500PCS PER MONTH
Detailed Product Description
Material: Low Carbon Steel Wire Hole Size: 3"x0.5" / 76.2*12.7mm
Wire Diameter: 4.0mm Feature: Anti-corrosion/Anti-climb/Anti-cut
Post Size: 60x60mm, 60x80mm, 80x80mm Surface Treatment: Galvanized,powder Coated,PVC Coated
Usage: Garden Fence, Highway Fence, Type: Fencing, Trellis & Gates
Fence Topping: Razor Wire, Barbed Wire, Anti Climb Spikes Fence Height: 3.0m, 2.4m, 2.2m, 2.0m Or Customized
Certification: ISO9001:2015 Brand Name: Yuanhai
Welded Strength: Range 540–690 N/m2. Color: Green RAL 6005/Black RAL 9005.
High Light:

mesh clear view 358 security fencing

,

358 security fencing anti theft

,

358 security mesh fencing 8 gauge

Clear View 358 Anti Climb / Anti-theft Fencing For Security 3" × 0.5" × 8 gauge





Description of 358 Security Fencing



358 extra high security mesh fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 76.2 mm × 12.7 mm × 4 mm mesh opening.

  • Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
  • Wire diameter: 4 mm horizontal wire and vertical Wire.
  • Weld strength: range 540–690 N/m2.
  • Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
  • Colors: Green RAL 6005, or Black RAL 9005.
  • Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.

Specifications of 358 Security Fencing



                                          Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')
3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.



358 fence 2.1m 2.4m 3.0m
358 fence hight 2134mm 2438mm 2997mm
358 fence width 2515mm 2515mm 2515mm
358 fence hole size 12.7*76.2mm 12.7*76.2mm 12.7*76.2mm
wire 4mm 4mm 4mm
wire if need other wire diameter can order
358 fence posts 60*60*3mm 60*60*3mm 60*60*3mm
358 fence posts length 2.8m 3.1m 4.0m
no of fixings 8 9 11



Features of 358 Security Fencing

  • Anti-climbing: more small openings, no toe or finger holds.
  • Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
  • High strength welded at each intersection.
  • Durable: covering Galfan and polymer powder coating ensure a long service life.
  • Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.

Surface treatment of 358 Security Fencing


1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)

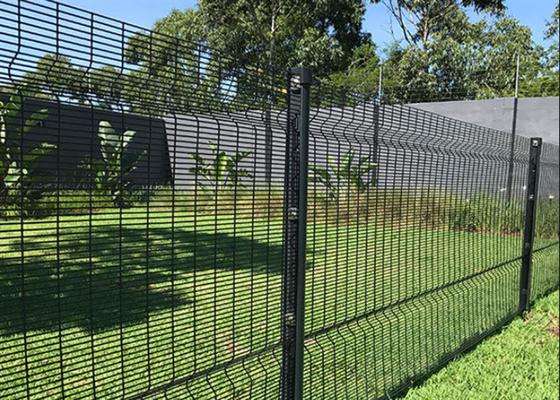

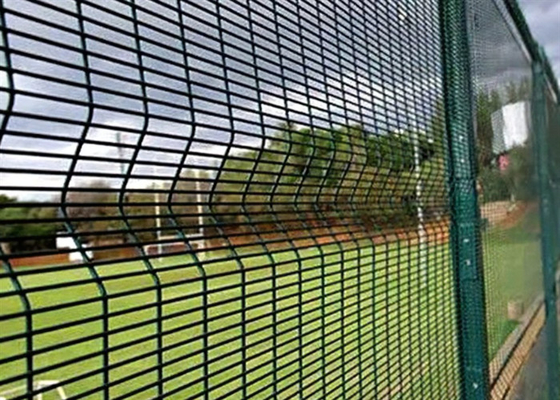

Display of 358 Security Fencing



Mesh Clear View 358 Security Fencing Anti Climb / Anti Theft 3" × 0.5" × 8 Gauge 0



Mesh Clear View 358 Security Fencing Anti Climb / Anti Theft 3" × 0.5" × 8 Gauge 1



Packing of 358 Security Fencing



Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.




Mesh Clear View 358 Security Fencing Anti Climb / Anti Theft 3" × 0.5" × 8 Gauge 2







Mesh Clear View 358 Security Fencing Anti Climb / Anti Theft 3" × 0.5" × 8 Gauge 3



FAQ


Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
