Anti Cut / Anti Climb 358 Security Fencing Prison Private 76.2*12.7mm Hot Dip Galvanized

Large Image : Anti Cut / Anti Climb 358 Security Fencing Prison Private 76.2*12.7mm Hot Dip Galvanized

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-ACF

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability:	500PCS PER MONTH

Contact Now

Detailed Product Description

Material:	Low Carbon Steel Wire	Hole Size:	3"x0.5" / 76.2*12.7mm
Wire Diameter:	4.0mm	Post Size:	60x60mm, 60x80mm, 80x80mm
Surface Treatment:	Galvanized,powder Coated,PVC Coated	Type:	Fencing, Trellis & Gates
Fence Topping:	Razor Wire, Barbed Wire, Anti Climb Spikes	Fence Height:	3.0m, 2.4m, 2.2m, 2.0m Or Customized
Certification:	ISO9001:2015	Brand Name:	Yuanhai
Welded Strength:	Range 540–690 N/m2.	Color:	Green RAL 6005/Black RAL 9005.
Feature:	Easily Assembled, Sustainable, ECO FRIENDLY	Application:	Garden Fence, Highway Fence, Sport Fence, Anti-thief
Highlight:	anticut anticlimb 358 security fencing , prison private 358 security fencing , hot dip 358 prison mesh fencing

Hot Dip Galvanized Anti-cut / Anti-climb Fencing For Private 76.2*12.7mm

Description of 358 Security Fencing

"358" comes from its measurements 3"*0.5"*8" gauges which equates to approx.76.2mm*12.7mm*4mm(Length*Height*Diameter) in metric.

358 security fences are extremely difficult to penetrate.with the small mesh aperture being effectively finger proof,and extremely difficult to attack using conventional hand tools.

Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540–690 N/m2.
Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: Green RAL 6005, or Black RAL 9005.
Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.

Specifications of 358 Security Fencing

Specification of 358 Security Fencing
Mesh Opening	Wire Diameter	Panel Height	Panel Width	Post Type
12.7x76.2mm (0.5'' x 3'')	3/3.5/4mm	1.2-6m	2.0-3.1m	Square Post(SHS) 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm	Rectangular Post(RHS) 40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm 60x80x2.0/2.5/3.0mm 80x100x2.0/2.5/3.0mm



Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.

358 fence	2.1m	2.4m	3.0m
358 fence hight	2134mm	2438mm	2997mm
358 fence width	2515mm	2515mm	2515mm
358 fence hole size	12.7*76.2mm	12.7*76.2mm	12.7*76.2mm
wire	4mm	4mm	4mm
wire	if need other wire diameter can order
358 fence posts	60603mm	60603mm	60603mm
358 fence posts length	2.8m	3.1m	4.0m
no of fixings	8	9	11

Features of 358 Security Fencing

Good viewing visibility, it is a type of high security clear view fencing.
Welded well at each intersection.
Intrusion resistant, with extremely strong double vertical wire design.
Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
Corrosion resistant with zinc aluminum alloy and PVC powder coating.
Surface finish after welding, every weld-point are protected well.
High strength with fully integrated with posts and anti-tamper fixings.
Fence security toppings are optional.
Easy for installation and free maintenance.
5 year warranty.

Surface treatment of 358 Security Fencing

1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)

Application of 358 Security Fencing

Bridge anti-climb guarding & guard ety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area and private field fence.

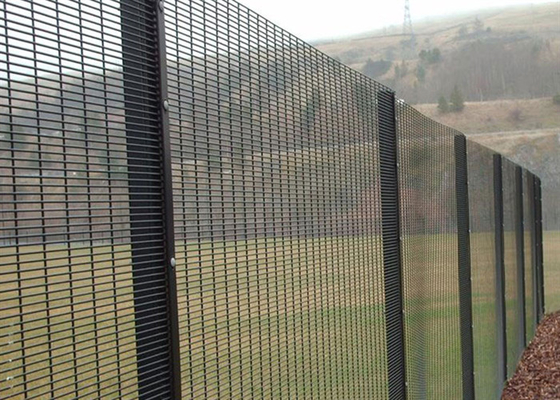

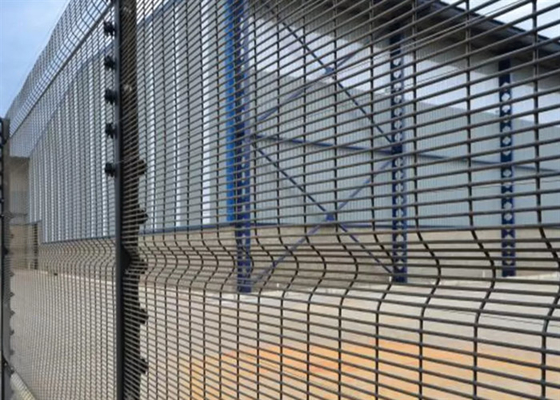

Display of 358 Security Fencing

Anti Cut / Anti Climb 358 Security Fencing Prison Private 76.2*12.7mm Hot Dip Galvanized 0

Packing of 358 Security Fencing

Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.

Anti Cut / Anti Climb 358 Security Fencing Prison Private 76.2*12.7mm Hot Dip Galvanized 2

Anti Cut / Anti Climb 358 Security Fencing Prison Private 76.2*12.7mm Hot Dip Galvanized 3

Anti Cut / Anti Climb 358 Security Fencing Prison Private 76.2*12.7mm Hot Dip Galvanized 4

Anti Cut / Anti Climb 358 Security Fencing Prison Private 76.2*12.7mm Hot Dip Galvanized 5

Anti Cut / Anti Climb 358 Security Fencing Prison Private 76.2*12.7mm Hot Dip Galvanized 6

FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
