3d Curved 358 Mesh Fence Anti Climb Powder Coated Garden / Railway Station

Name: 3d Curved 358 Mesh Fence Anti Climb Powder Coated Garden / Railway Station
Brand: YUANHAI
SKU: YH-ACF
Rating: 4.6 (110 reviews)

Large Image : 3d Curved 358 Mesh Fence Anti Climb Powder Coated Garden / Railway Station

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-ACF

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability:	500PCS PER MONTH

Contact Now

Detailed Product Description

Material:	Low Carbon Steel Wire	Hole Size:	3"x0.5" / 76.2*12.7mm
Wire Diameter:	4.0mm	Post Size:	60x60mm, 60x80mm, 80x80mm
Surface Treatment:	Galvanized,powder Coated,PVC Coated	Type:	Fencing, Trellis & Gates
Fence Topping:	Razor Wire, Barbed Wire, Anti Climb Spikes	Fence Height:	3.0m, 2.4m, 2.2m, 2.0m Or Customized
Certification:	ISO9001:2015	Brand Name:	Yuanhai
Welded Strength:	Range 540–690 N/m2.	Color:	Green RAL 6005/Black RAL 9005.
Feature:	Easily Assembled, Sustainable, ECO FRIENDLY	Application:	Garden Fence, Highway Fence, Sport Fence, Anti-thief
MOQ:	50 Pcs	Sample:	Provide
High Light:	curved 358 mesh fence , anticlimb 358 mesh fence , garden 358 security fencing

Powder Coated 3D Curved Anti-climb Fencing For Garden / Railway Station

Description of 358 Security Fencing

"358" comes from its measurements 3"*0.5"*8" gauges which equates to approx.76.2mm*12.7mm*4mm(Length*Height*Diameter) in metric.

358 security fences are extremely difficult to penetrate.with the small mesh aperture being effectively finger proof,and extremely difficult to attack using conventional hand tools.

Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540–690 N/m2.
Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: Green RAL 6005, or Black RAL 9005.
Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.

Specifications of 358 Security Fencing

Specification of 358 Security Fencing
Mesh Opening	Wire Diameter	Panel Height	Panel Width	Post Type
12.7x76.2mm (0.5'' x 3'')	3/3.5/4mm	1.2-6m	2.0-3.1m	Square Post(SHS) 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm	Rectangular Post(RHS) 40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm 60x80x2.0/2.5/3.0mm 80x100x2.0/2.5/3.0mm



Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.

358 fence	2.1m	2.4m	3.0m
358 fence hight	2134mm	2438mm	2997mm
358 fence width	2515mm	2515mm	2515mm
358 fence hole size	12.7*76.2mm	12.7*76.2mm	12.7*76.2mm
wire	4mm	4mm	4mm
wire	if need other wire diameter can order
358 fence posts	60603mm	60603mm	60603mm
358 fence posts length	2.8m	3.1m	4.0m
no of fixings	8	9	11

Features of 358 Security Fencing

More cost effective for long term

Long service life

Low maintenance

Corrosion resistant - a protective coat of armor

Less inspection required on job sites

Self healing (scratches and cuts in coating)

Surface treatment of 358 Security Fencing

1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)

Application of 358 Security Fencing

With excellent see through visibility makes anti climb fencing is very suitable to use on commercial, governmental and industrial properties.And it is also suitable for premium housing estate development, apartments and condominium surroundings, schools, business parks, warehouses, power plants, military sites, education facilities, hospitals and residential areas.

Packing of 358 Security Fencing

Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.

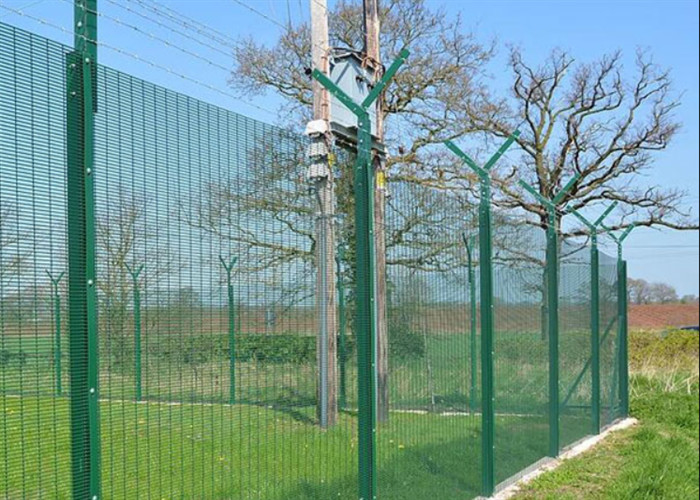

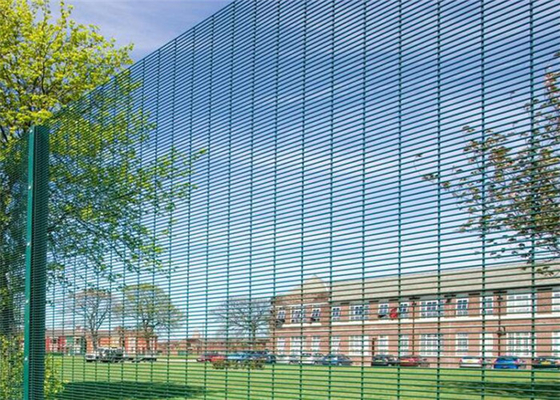

Display of 358 Security Fencing

3d Curved 358 Mesh Fence Anti Climb Powder Coated Garden / Railway Station 0

3d Curved 358 Mesh Fence Anti Climb Powder Coated Garden / Railway Station 1

3d Curved 358 Mesh Fence Anti Climb Powder Coated Garden / Railway Station 2

3d Curved 358 Mesh Fence Anti Climb Powder Coated Garden / Railway Station 3

3d Curved 358 Mesh Fence Anti Climb Powder Coated Garden / Railway Station 4

3d Curved 358 Mesh Fence Anti Climb Powder Coated Garden / Railway Station 5

3d Curved 358 Mesh Fence Anti Climb Powder Coated Garden / Railway Station 6

FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
