Clearvu Railway Station Prison Mesh Fencing 3"*0.5"*8 Gauge Powder Coated

Clearvu Railway Station Prison Mesh Fencing 3"*0.5"*8 Gauge Powder Coated
Clearvu Railway Station Prison Mesh Fencing 3"*0.5"*8 Gauge Powder Coated Clearvu Railway Station Prison Mesh Fencing 3"*0.5"*8 Gauge Powder Coated

Large Image :  Clearvu Railway Station Prison Mesh Fencing 3"*0.5"*8 Gauge Powder Coated

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-ACF
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability: 500PCS PER MONTH
Detailed Product Description
Material: Low Carbon Steel Wire Hole Size: 3"x0.5" / 76.2*12.7mm
Wire Diameter: 4.0mm Post Size: 60x60mm, 60x80mm, 80x80mm
Surface Treatment: Galvanized,powder Coated,PVC Coated Fence Topping: Razor Wire, Barbed Wire, Anti Climb Spikes
Fence Height: 3.0m, 2.4m, 2.2m, 2.0m Or Customized Welded Strength: Range 540–690 N/m2.
Color: Green RAL 6005/Black RAL 9005. Feature: Easily Assembled, Sustainable, ECO FRIENDLY
Application: Garden Fence, Highway Fence, Sport Fence, Anti-thief MOQ: 100 Pcs
Sample: For Free Process: Weaving And Welding
Place Of Origin: Hebei Province,China Certification: ISO9001:2015
High Light:

clearvu prison mesh fencing

,

8 gauge prison mesh fencing

,

railway station 358 security fencing

Powder Coated 358 Security Clearvu Railway Station Fencing 3"*0.5"*8 Gauge





Description of 358 Security Fencing



358 security fencing provides the highest degree of physical perimeter protection, ideal for sensitive areas requiring the maximum degree of security. From prisons and nuclear establishments; to computer centres, research laboratories and warehouses; to schools and retail areas, 358 mesh security fencing will provide outstanding security.

The ‘358’- style high security galvanized fence. The fence shall be a single layer welded mesh design with minimum 4milimiters (mm) horizontal and vertical circumference wires (horizontal wires to be on attack side);
The resulting mesh dimension shall not be larger than 76mm wide by 13mm high;
The length of each fence panel shall be 2.5m
Barbed tape concertina with 7 clips per spiral and short blades at 25mm centres;

  • Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
  • Wire diameter: 4 mm horizontal wire and vertical Wire.
  • Weld strength: range 540–690 N/m2.
  • Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
  • Colors: Green RAL 6005, or Black RAL 9005.
  • Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.

Specifications of 358 Security Fencing



                                          Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')
3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.



358 fence 2.1m 2.4m 3.0m
358 fence hight 2134mm 2438mm 2997mm
358 fence width 2515mm 2515mm 2515mm
358 fence hole size 12.7*76.2mm 12.7*76.2mm 12.7*76.2mm
wire 4mm 4mm 4mm
wire if need other wire diameter can order
358 fence posts 60*60*3mm 60*60*3mm 60*60*3mm
358 fence posts length 2.8m 3.1m 4.0m
no of fixings 8 9 11



Features of 358 Security Fencing





The aperture is 72.2mm horizontal x 8.7mm vertical and makes 358 security fencing extremely difficult to penetrate using conventional hand tools, thus providing a high delay factor.

Despite the high degree of security, the visual impact of a 358 fence on the environment remains very discreet. It is specifically configured to give maximum visibility (important for clear camera surveillance and to identify intruders.)

358 security fencing is designed for compatibility with electronic alarm and detection systems.
Weld strength of this kind of security fencing is minimum of 75% to steel strength guaranteed on every weld.



Sizes of 358 Security Fencing



The panels are 2515mm wide and heights range from 900 to 5200mm.
Mesh sizes are 76.2 x 12.7mm, and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).
Featuring a toe and finger proof mesh aperture, this system combines an anticlimb and anticut fence with excellent through visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground to prevent burrowing.



Application of 358 Security Fencing



Bridge anti-climb guarding & guard safety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area and private field fence.



Packing of 358 Security Fencing



Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.

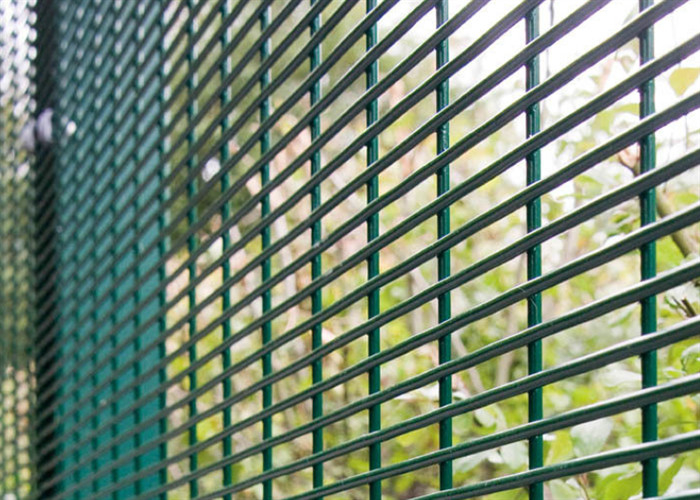

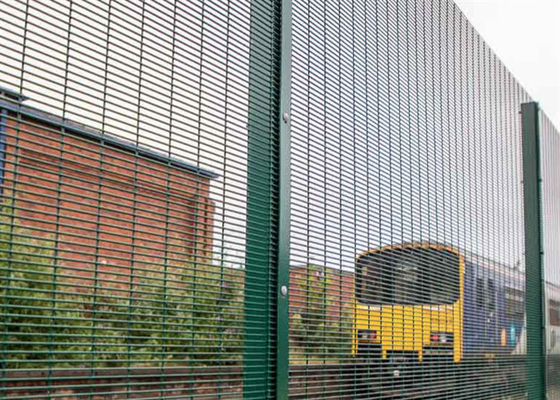

Display of 358 Security Fencing



Clearvu Railway Station Prison Mesh Fencing 3"*0.5"*8 Gauge Powder Coated 0





Clearvu Railway Station Prison Mesh Fencing 3"*0.5"*8 Gauge Powder Coated 1



Clearvu Railway Station Prison Mesh Fencing 3"*0.5"*8 Gauge Powder Coated 2



Clearvu Railway Station Prison Mesh Fencing 3"*0.5"*8 Gauge Powder Coated 3



Clearvu Railway Station Prison Mesh Fencing 3"*0.5"*8 Gauge Powder Coated 4



FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
