Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail

Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail
Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail

Large Image :  Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-ACF
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability: 500PCS PER MONTH
Detailed Product Description
Material: Low Carbon Steel Wire Hole Size: 3"x0.5" / 76.2*12.7mm
Wire Diameter: 4.0mm Post Size: 60x60mm, 60x80mm, 80x80mm
Surface Treatment: Galvanized,powder Coated,PVC Coated Type: Fencing, Trellis & Gates
Fence Height: 3.0m, 2.4m, 2.2m, 2.0m Or Customized Welded Strength: Range 540–690 N/m2.
Color: Green RAL 6005/Black RAL 9005. Feature: Easily Assembled, Sustainable, ECO FRIENDLY
Application: Garden Fence, Highway Fence, Sport Fence, Anti-thief Process: Weaving And Welding
Place Of Origin: Hebei Province,China Payment Term: Western Union, L/C, T/T
Package: Steel Pallet Certification: ISO9001:2015
Sample: For Free Post: 60*60mm,80*80mm,100*100mm, Etc.
High Light:

hot dip galvanized 358 security fencing

,

anti cut 358 security fencing

,

hot dip galvanized 358 security fence

Hot Dip Galvanzed Anti-cut 358 Welded Security Fence 358 Guardrail





Description of 358 Security Fencing



Anti climb mesh fence is also called 358 fence( 3"×0.5"×8 gauge) also known as"prison mesh" or anti-climb fence, is a special fencing panel. This production offers the best value for performance, durability and appearance,"358"comes from its measurements 3" x 0.5" x 8 gauge which equates to approx.76.2mm x 12.7mm x 4mm in metric.

358 wire mesh fence is a professional structure designed for high security environments, combined with an steel framework,coated with heavy zinc or RAL color powder coating.

Anti-climbing - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.

Anti-shear - the wire diameter is large, the mesh is dense, making the wire cut useless.

Beautiful appearance - the mesh surface is flat, two-dimensional three-dimensional, and the perspective is higher.

Horizontal wire 358 Security Fence Uses: Fence, decoration, protection and other facilities in industries such as industry, agriculture, municipalities, transportation, etc. It also used in road green belt protection nets.



Specifications of 358 Security Fencing



                                          Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')
3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.



358 fence 2.1m 2.4m 3.0m
358 fence hight 2134mm 2438mm 2997mm
358 fence width 2515mm 2515mm 2515mm
358 fence hole size 12.7*76.2mm 12.7*76.2mm 12.7*76.2mm
wire 4mm 4mm 4mm
wire if need other wire diameter can order
358 fence posts 60*60*3mm 60*60*3mm 60*60*3mm
358 fence posts length 2.8m 3.1m 4.0m
no of fixings 8 9 11



Features of 358 Security Fencing



1. Small mesh opening offers no footholds for climbing.
2. Panel wires are firmly welded at every intersection and provide a solid and robust structure.
3. Solid welding joints, small mesh opening, together with thick wire diameter make the mesh is hard to be cut by hand or powered tools.
4. Galvanized and powder coating treatments offers excellent rust, corrosion and weather resistance performances.
5. It can be cooperated with barbed wires and razor wires to offer higher security.



Sizes of 358 Security Fencing



The panels are 2515mm wide and heights range from 900 to 5200mm.
Mesh sizes are 76.2 x 12.7mm, and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).
Featuring a toe and finger proof mesh aperture, this system combines an anticlimb and anticut fence with excellent through visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground to prevent burrowing.



Application of 358 Security Fencing



Bridge anti-climb guarding & guard safety screening

Psychiatric hospital security fencing

Prison security fencing

Factory machine guards

Walkway security fencing

Airport security fencing

Shipping Port Security fencing

Electrical sub-station fencing

Gas pipelines security fence

High security living area and private field fence.

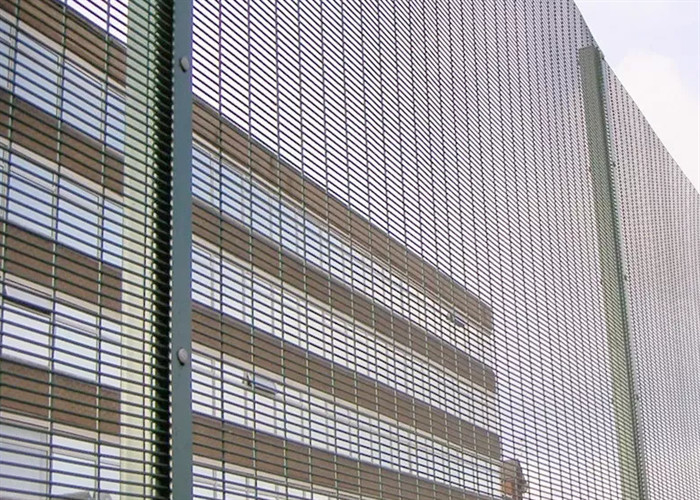

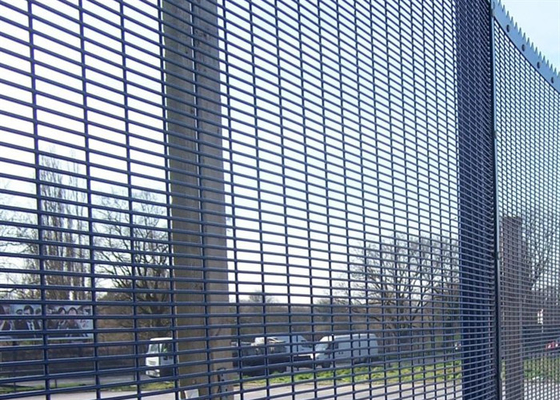

Display of 358 Security Fencing



Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail 0



Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail 1



Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail 2



Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail 3







Hot Dip Galvanized 358 Security Fencing Anti Cut Welded Guardrail 4



FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
