3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

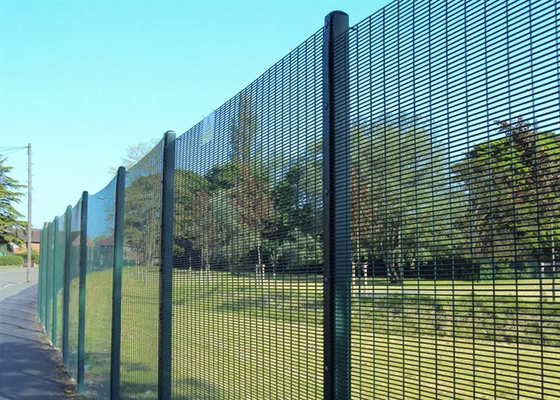

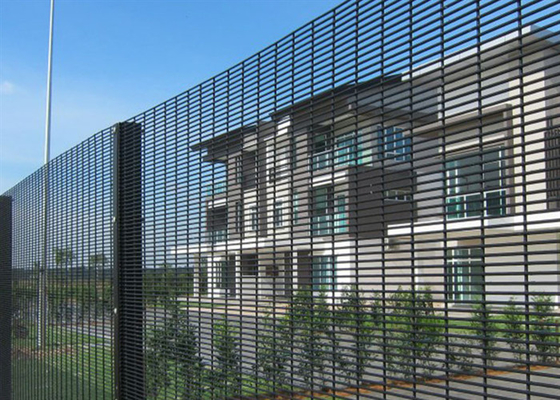

3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm

3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm
3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm 3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm

Large Image :  3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-ACF
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability: 500PCS PER MONTH
Detailed Product Description
Material: Low Carbon Steel Wire Hole Size: 3"x0.5" / 76.2*12.7mm
Wire Diameter: 4.0mm / Customized Post Size: 60x60mm, 60x80mm, 80x80mm
Finishing: Galvanized,powder Coated,PVC Coated Type: Fencing, Trellis & Gates
Fence Topping: Razor Wire, Barbed Wire, Anti Climb Spikes Fence Height: 3.0m, 2.4m, 2.2m, 2.0m Or Customized
Certification: ISO9001:2015 Color: Green RAL 6005/Black RAL 9005.
Feature: Easily Assembled, Sustainable, ECO FRIENDLY Application: Garden Fence, Highway Fence, Sport Fence, Anti-thief
Design Style: Art Decor, CLASSIC, Modern Room Space: Outdoor
High Light:

3.0m height anti climb prison fence

,

pvc coated anti climb prison fence

,

anticlimb 358 security fence prison mesh

Hot Dip Galvanized / PVC Coted 358 Security Fencing 76.2*12.7mm For Prison





Description of 358 Security Fencing



Anti climb mesh fence is also called 358 fence( 3"×0.5"×8 gauge) also known as"prison mesh" or anti-climb fence, is a special fencing panel. This production offers the best value for performance, durability and appearance,"358"comes from its measurements 3" x 0.5" x 8 gauge which equates to approx.76.2mm x 12.7mm x 4mm in metric.

358 wire mesh fence is a professional structure designed for high security environments, combined with an steel framework,coated with heavy zinc or RAL color powder coating.



Panel size:Height x Length: 2000x2200mm
Wire diameter: 4mm
Mesh Size: 12.7x76.2mm
Surface Treatment: electro galvanized wire welded, then PVC coated
Fence Post: 60x60x2x2500mm
Surface Treatment:galvanized pipe PVC coated
Flat Bar:60x5x2000mm
Surface Treatment: Iron flat bar PVC coated
With Plastic cap and bolts and nuts



Specifications of 358 Security Fencing



                                          Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')
3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.



358 fence 2.1m 2.4m 3.0m
358 fence hight 2134mm 2438mm 2997mm
358 fence width 2515mm 2515mm 2515mm
358 fence hole size 12.7*76.2mm 12.7*76.2mm 12.7*76.2mm
wire 4mm 4mm 4mm
wire if need other wire diameter can order
358 fence posts 60*60*3mm 60*60*3mm 60*60*3mm
358 fence posts length 2.8m 3.1m 4.0m
no of fixings 8 9 11



Features of 358 Security Fencing

  • Anti-climbing: more small openings, no toe or finger holds.
  • Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
  • High strength welded at each intersection.
  • Good viewing visibility, it is a type of high security clear view fencing.
  • Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
  • Corrosion resistant with zinc aluminum alloy and PVC powder coating.
  • Surface finish after welding, every weld-point are protected well.
  • High strength with fully integrated with posts and anti-tamper fixings.
  • Fence security toppings are optional.

Surface treatment of 358 Security Fencing


1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)



Application of 358 Security Fencing



Bridge anti-climb guarding & guard safety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area and private field fence.



Packing of 358 Security Fencing



Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.

3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm 0


3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm 1



3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm 2



3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm 3



3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm 4



3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm 5

3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm 6
3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm 7
3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm 8
FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
