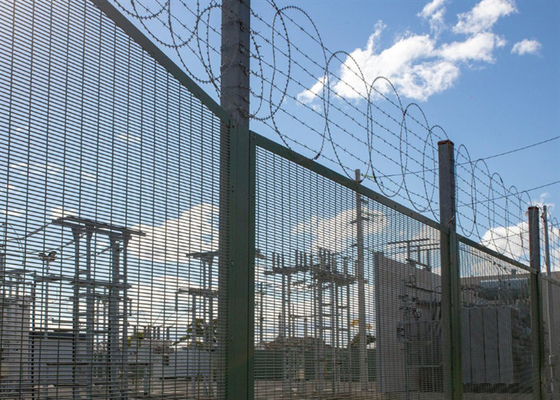

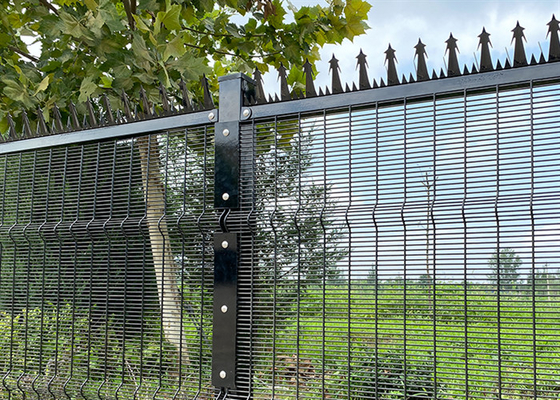

Description of 358 Security Fencing
"358" comes from its measurements 3" x 0.5" x 8 gauges which equates to approx. 76.2mm x 12.7mm x 4mm (Length x height x Diameter) in metric.
"anti-climb": smaller openings, no place for toe or finger to hold.
- Material: Low Carbon steel wire Q195
- Type:Welded mesh
- MOQ:10 sets
- Surface Treatment: Electric galvanized,hot dipped galvanized, spray, PVE coated, PE coated
- Technique: Welded
- Usage: Used for garden,road,playground,park etc
- Packaging Details:
Packed with plastic film then on the pallets and then in wooden box
Specifications of 358 Security Fencing
| Specification of 358 Security Fencing |
| Mesh Opening |
Wire Diameter |
Panel Height |
Panel Width |
Post Type |
12.7x76.2mm
(0.5'' x 3'') |
3/3.5/4mm |
1.2-6m |
2.0-3.1m |
Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm |
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating. |
| Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized. |
| Note:The fence can be customized according to your required if above specification is not satisfied with you. |
| 358 fence |
2.1m |
2.4m |
3.0m |
| 358 fence hight |
2134mm |
2438mm |
2997mm |
| 358 fence width |
2515mm |
2515mm |
2515mm |
| 358 fence hole size |
12.7*76.2mm |
12.7*76.2mm |
12.7*76.2mm |
| wire |
4mm |
4mm |
4mm |
| wire |
if need other wire diameter can order |
| 358 fence posts |
60*60*3mm |
60*60*3mm |
60*60*3mm |
| 358 fence posts length |
2.8m |
3.1m |
4.0m |
| no of fixings |
8 |
9 |
11 |
Features of 358 Security Fencing
1.Anti-climbing - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.
2.Anti-shear - the wire diameter is large, the mesh is dense, making the wire cut useless.
3.Beautiful appearance - the mesh surface is flat, and the perspective is higher.
4.Good viewing visibility, it is a type of high security clear view fencing.
5.Welded well at each intersection.
6.Intrusion resistant, with extremely strong double vertical wire design.
7.Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
8.Corrosion resistant with zinc aluminum alloy and PVC powder coating.
9.Surface finish after welding, every weld-point are protected well.
Surface treatment of 358 Security Fencing
1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)
