Clear Vu 358 Welded Mesh Security Fencing Green Coated / Galvanized 1.2*2.5m

Clear Vu 358 Welded Mesh Security Fencing Green Coated / Galvanized 1.2*2.5m
Clear Vu 358 Welded Mesh Security Fencing Green Coated / Galvanized 1.2*2.5m Clear Vu 358 Welded Mesh Security Fencing Green Coated / Galvanized 1.2*2.5m

Large Image :  Clear Vu 358 Welded Mesh Security Fencing Green Coated / Galvanized 1.2*2.5m

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-ACF
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability: 500PCS PER MONTH
Detailed Product Description
Material: Low Carbon Steel Wire Hole Size: 3"x0.5" / 76.2*12.7mm
Wire Diameter: 4.0mm Or Customized Post Size: 60x60mm, 60x80mm, 80x80mm
Surface Treatment: Galvanized,powder Coated,PVC Coated Fence Height: 3.0m, 2.4m, 2.2m, 2.0m Or Customized
Welded Strength: Range 540–690 N/m2. Color: Green/Black/Gray Or Customized
Feature: Easily Assembled, Sustainable Application: Garden Fence, Highway Fence, Sport Fence, Anti-thief
Process: Weaving And Welding Certification: ISO9001:2015
Brand Name: Yuanhai Place Of Origin: Hebei Province,China
High Light:

clearvu 358 welded mesh security fencing

,

galvanized 358 welded mesh security fencing

,

green coated 358 weld mesh fencing

Clear VU Green Coated / Galvanized 358 Security Welded Fencing 1.2*2.5m





Description of 358 Security Fencing



Anti climb fence is also called clear view fence, providing the highest degree of security with excellent see through visibility.Anti climb fence has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is hard for adult fingers and toes to go through. It has exclusive thickness, anti-cutting materials and its framework is strongly resistant.



  • Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
  • Wire diameter: 4 mm horizontal wire and vertical Wire.
  • Weld strength: range 540–690 N/m2.
  • Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
  • Colors: Green RAL 6005, or Black RAL 9005.
  • Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.



Specifications of 358 Security Fencing



                                          Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')
3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.



358 fence 2.1m 2.4m 3.0m
358 fence hight 2134mm 2438mm 2997mm
358 fence width 2515mm 2515mm 2515mm
358 fence hole size 12.7*76.2mm 12.7*76.2mm 12.7*76.2mm
wire 4mm 4mm 4mm
wire if need other wire diameter can order
358 fence posts 60*60*3mm 60*60*3mm 60*60*3mm
358 fence posts length 2.8m 3.1m 4.0m
no of fixings 8 9 11



Features of 358 Security Fencing



1. Small mesh opening offers no footholds for climbing.
2. Panel wires are firmly welded at every intersection and provide a solid and robust structure.
3. Solid welding joints, small mesh opening, together with thick wire diameter make the mesh is hard to be cut by hand or powered tools.
4. Galvanized and powder coating treatments offers excellent rust, corrosion and weather resistance performances.
5. It can be cooperated with barbed wires and razor wires to offer higher security.



Sizes of 358 Security Fencing



The panels are 2515mm wide and heights range from 900 to 5200mm.
Mesh sizes are 76.2 x 12.7mm, and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).
Featuring a toe and finger proof mesh aperture, this system combines an anticlimb and anticut fence with excellent through visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground to prevent burrowing.



Application of 358 Security Fencing


With excellent see through visibility makes anti climb fencing is very suitable to use on commercial, governmental and industrial properties.And it is also suitable for premium housing estate development, apartments and condominium surroundings, schools, business parks, warehouses, power plants, military sites, education facilities, hospitals and residential areas.

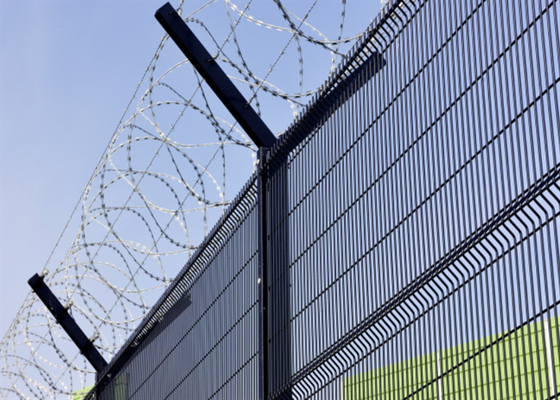

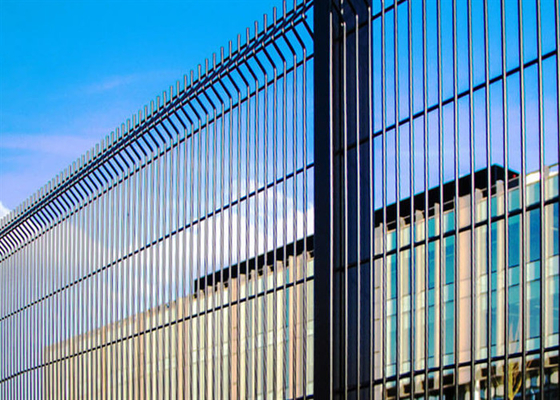

Display of 358 Security Fencing



Clear Vu 358 Welded Mesh Security Fencing Green Coated / Galvanized 1.2*2.5m 0





Clear Vu 358 Welded Mesh Security Fencing Green Coated / Galvanized 1.2*2.5m 1



Clear Vu 358 Welded Mesh Security Fencing Green Coated / Galvanized 1.2*2.5m 2



Clear Vu 358 Welded Mesh Security Fencing Green Coated / Galvanized 1.2*2.5m 3



Clear Vu 358 Welded Mesh Security Fencing Green Coated / Galvanized 1.2*2.5m 4







FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
