Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Steel, Hot/Cold Rolled Steel | Process: | Perforated |
|---|---|---|---|
| Thickness: | 0.2-4.0mm | Hole Size: | 1.0-15mm |
| Hole Shape: | Square/round/hexagonal/slotted Hole | Application: | Chemial Industry,building Decorative,food Industry |
| Packing: | Waterproof Paper Then PVC Shrinked | Normal Size: | 1 X 2 M |
| Keyword: | Perforated Metal Sheet | Certification: | ISO9001:2015 |
| Place Of Origin: | Hebei Province,China | Port Of Loading: | Tianjin Xingang Port |
| High Light: | punched speaker grills perforated wire mesh,perforated wire mesh 4x8,hexagonal small hole expanded metal mesh |
||

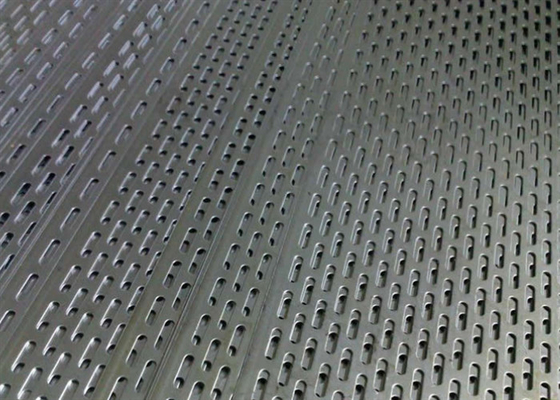

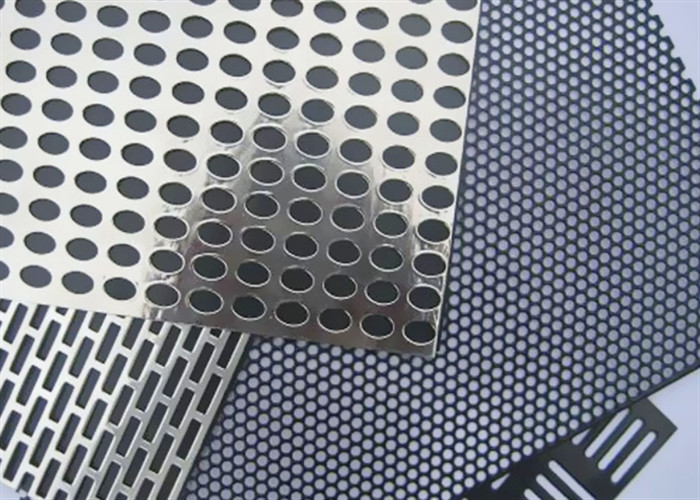

Punched Perforated Metal Mesh Square / Hexagonal Hole Speaker Grills 4x8'
Product Description
Perforated Stainless Sheet is a sheet product that has been punched with a wide variety of hole sizes and patterns providing an
aesthetic appeal.
Product Advantages
Product Specification
| The common sizes of Suicheng Metal Product CO.,Ltd | |||||||
| Material | Thickness of Metal (mm) | HoleDia. (mm) | Pitch(mm) | SheetWidth (m) | Sheet Length (m) | Porosity (%) |
Weight (kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | ||
Product Application
Perforated Metal Mesh used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded carbon steel can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.
Product Packing
1.waterproof paper then PVC shrinked
2.PVC shrinked only
3.black waterproof paper only
4.waterproof paper then metal/wooden pallet
5.plastic film then carton. Also at your request
