Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole

Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole
Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole

Large Image :  Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole

Product Details:
Place of Origin: Anping,Hebei,China
Brand Name: YUANHAI
Certification: ISO 9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: steel pallet
Delivery Time: according to your quantity
Payment Terms: T/T
Supply Ability: 500 Ton/Tons per Month
Detailed Product Description
Material: Galvanized Steel, Hot/Cold Rolled Steel Process: Perforated
Thickness: 0.2-4.0mm Hole Size: 1.0-15mm
Hole Shape: Square/round/hexagonal/slotted Hole Packing: Waterproof Paper Then PVC Shrinked
Normal Size: 1 X 2 M Keyword: Perforated Metal Sheet
Certification: ISO9001:2015 Port Of Loading: Tianjin Xingang Port
Application: Luxury Doors, Elevators Decorating Delivery Time: About 15 Days
Payment Term: L/C, T/T Technique: Perforated
High Light:

rectangular hole perforated wire mesh

,

1mm thin perforated wire mesh

,

1mm thin perforated metal sheet

Galvanized / Black Perforated Metal Mesh Sheet Round / Rectangular Hole





Product Description



Perforated wire metal is one of the most versatile and popular metal products on the market today. Perforated sheet can range from light to heavy gauge thickness and any type of material can be perforated, such as perforated carbon steel. Perforated metal plate is versatile, in the way that it can have either small or large aesthetically appealing openings. This makes perforated sheet metal ideal for many architectural metal and decorative metal uses. Perforated metal is also an economical choice for your project.

  • Material: First and foremost, the material of the sheet must be selected as per the application and requirement. We provide a variety of materials including mild steel, stainless steel, and aluminum.
  • Dimension: The thickness of the sheet is also an important consideration. We provide a range of thicknesses in all available material sheets. Additionally, we can also customize your specifications as per the application.
  • The hole: The shape and size of the hole are essential for a perforated metal sheet. Our experts advise the punching/stamping thickness to be larger than the sheet thickness in order to attain maximum benefit. The pattern selected must also be checked for the correct pitch in order to avoid dimensional inaccuracy and errors.
  • Overall tolerances: Clearly specified tolerances on the product dimensions help us to produce the perfect product for your application.

Product Advantages

  • wide range of thicknesses available
  • uniform sound abatement
  • light weight
  • superior abrasion resistance
  • largest selection of hole size patterns and configurations
  • can be formed easily
  • can be paint or polished
  • attractive appearance

Product Specification



The common sizes of Suicheng Metal Product CO.,Ltd
Material Thickness of Metal (mm) HoleDia. (mm) Pitch(mm) SheetWidth (m) Sheet Length (m) Porosity
(%)
Weight
(kg/m2)
Rolling plate 0.2 6 2 1 20 44 0.88
0.35 5 4 1 20 24 2
0.45 6 3 1 20 35 2.5
0.8 3 3 1 20 19.6 3
Flat plate 0.5 1 1 1 2 19.6 3.14
0.55 1.1 2.2 1 2 22.67 3.411
0.55 1.5 2.8 1 2 26.03 3.268
0.8 1.5 1.5 1 2 19.6 5
0.8 2 3.4 1 2 30.78 4.465
1.5 2 2 1 2 19.6 9.4
1.5 5 8 1 2 35.39 7.843
3 5 16 1 2 19.6 18.8
Stainless steel plate 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
Aluminum plate 0.5 1 1 1 2 19.6 1.08
0.8 3 3 1 2 19.6 1.72
1.6 2 2 1 2 19.6 3.24
3 4 16 1 2 19.6



Product Application



* Separating ore or rock in mining applications

* Security in windows, gates, and doors

* Air filtration for electronic equipment

* Grinding spices, seeds and other food products

* Noise reduction in large engines

* Enhancing the appearance of retail store displays

* Household products such as patio furniture and appliances

* Various types of screens and vents



Product Packing



Bundles, seaworthy wooden cases.With or without edge protector, steel hoop and seals, or as per customers' requirements.

The inner size of container is below:

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM,25MTS

4 0ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM,27MTS

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM,27MTS



Production Show

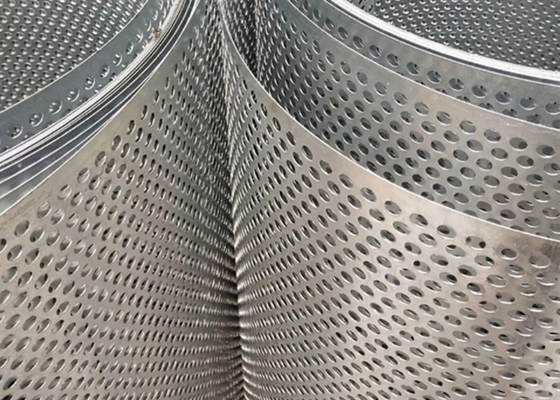

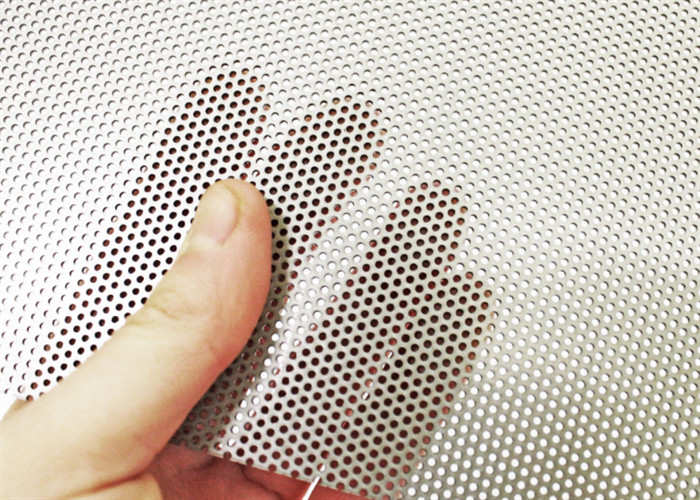

Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole 0



Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole 1



Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole 2



Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole 3



Galvanized / Black 1mm Thin Perforated Wire Mesh Metal Sheet Round / Rectangular Hole 4
