| Material: | Galvanized Steel, Hot/Cold Rolled Steel | Process: | Perforated |
|---|---|---|---|
| Thickness: | 0.2-4.0mm | Hole Size: | 1.0-15mm |
| Hole Shape: | Round, Square, Diamond,rectangular | Application: | Chemial Industry,building Decorative,food Industry |
| Packing: | Waterproof Paper Then PVC Shrinked | Normal Size: | 1 X 2 M |
| Keyword: | Perforated Metal Sheet | Certification: | ISO9001, ISO14001 |
| Place Of Origin: | Hebei Province,China | Port Of Loading: | Tianjin Xingang Port |
| Mesh Size: | 1220*2440mm,1200*2400mm,1000*2000mm Or Customized | ||
| High Light: | 0.2mm perforated wire mesh,speaker grills perforated wire mesh,oem perforated sheet metal speaker grill |
||
OEM Low Carbon Steel Perforated Metal Sheet Slot Hole For Speaker Grills
Product Description

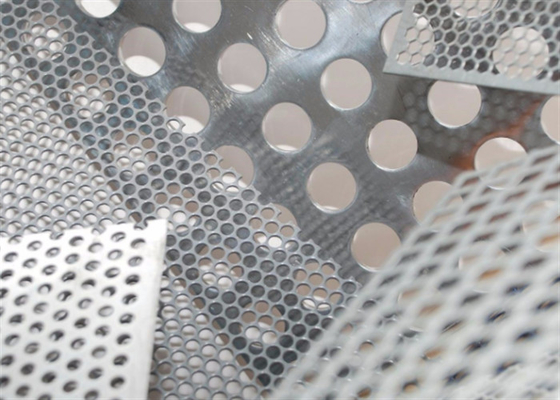

Perforated Metal is broadly used in Industrial and Architectural applications such as; oil filters,
grain sifters, sound isolation and ventilation.
The round hole perforation is the most popular type of perforated pattern. We can cut to size to
your specific requirements.
Perforated metal is descibed by the hole size and the pitch. The pitch is the distance from the
centre of one hole to the centre of the adjacent holes. All our perforated sheets are on a
triangular pitch.
Perforated sheets are very useful for guarding and ballustrading where a strong smooth finish is
required with a small apeture.
Product Advantages
Product Specification
| The common sizes of Suicheng Metal Product CO.,Ltd | |||||||
| Material | Thickness of Metal (mm) | HoleDia. (mm) | Pitch(mm) | SheetWidth (m) | Sheet Length (m) | Porosity (%) |
Weight (kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | ||
Surface Treatment
1.Spray coated
2.Plastic dipping
3.Anodized
4.Paint
5.Fluorocarbon spraying
6.Polishing
Product Application
Perforated metal mesh can be used for environmental noise control barriers in highways, railways, subways and other transportation municipal facilities that pass through urban areas, sound-absorbing panels for sound insulation and noise reduction of building walls, generator rooms, factory buildings, and other noise sources.
Product Packing
1.waterproof paper then PVC shrinked
2.PVC shrinked only
3.black waterproof paper only
4.waterproof paper then metal/wooden pallet
5.plastic film then carton. Also at your request
