Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Steel, Hot/Cold Rolled Steel | Process: | Perforated |
|---|---|---|---|
| Thickness: | 0.2-4.0mm | Hole Size: | 1.0-15mm |
| Hole Shape: | Square/round/hexagonal/slotted Hole | Packing: | Waterproof Paper Then PVC Shrinked |
| Normal Size: | 1 X 2 M | Keyword: | Perforated Metal Sheet |
| Certification: | ISO9001:2015 | Place Of Origin: | Hebei Province,China |
| Port Of Loading: | Tianjin Xingang Port | Application: | Chemial Industry,building Decorative,food Industry |
| Delivery Time: | About 10 Days | Surface Treatment: | Galvanized, Powder-coated, Mill, Or Polished |
| High Light: | ss 3mm perforated metal sheet,radiator covers 3mm perforated metal sheet,low carbon perforated steel mesh sheets |
||

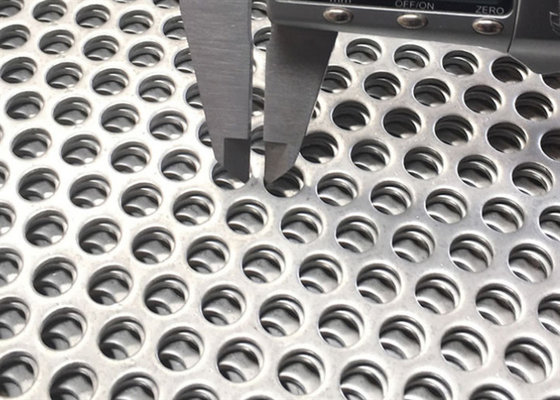

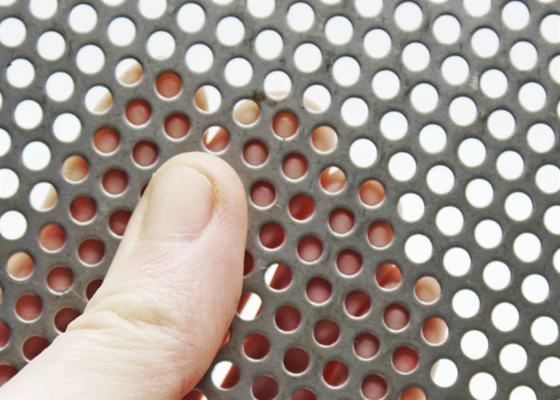

SS 304 / Low Carbon Steel Perforated Metal Sheet For Radiator Covers 3.0mm
Product Description
Yuan Hai Wire Mesh is one of the most professional perforated metal sheet suppliers and manufacturers in China. We supply perforated metal panels of various patterns and sizes, including round hole, square hole, slotted hole, and complex decorative hole; Materials available in stainless steel, aluminum alloy, galvanized steel, brass, copper, etc., and various colors including black, white, and other decorative colors to meet the needs of various industries.
Material: First and foremost, the material of the sheet must be selected as per the application and requirement. We provide a variety of materials including mild steel, stainless steel, and aluminum.
Dimension: The thickness of the sheet is also an important consideration. We provide a range of thicknesses in all available material sheets. Additionally, we can also customize your specifications as per the application.
The hole: The shape and size of the hole are essential for a perforated metal sheet. Our experts advise the punching/stamping thickness to be larger than the sheet thickness in order to attain maximum benefit. The pattern selected must also be checked for the correct pitch in order to avoid dimensional inaccuracy and errors.
Overall tolerances: Clearly specified tolerances on the product dimensions help us to produce the perfect product for your application.
Product Advantages
• Sunscreens
• Balustrade panels
• Fencing and gate infill panels
• Ceiling panels
• Architectural feature panels
• Building facades
• Acoustic wall panels
• Filters
• Shop fitting wall panels
• Custom perforations
Product Specification
| The common sizes of Suicheng Metal Product CO.,Ltd | |||||||
| Material | Thickness of Metal (mm) | HoleDia. (mm) | Pitch(mm) | SheetWidth (m) | Sheet Length (m) | Porosity (%) |
Weight (kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | ||
Product Application
| 1.Aerospace: nacelles, fuel filters, air filters |
| 2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors |
| 3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption |
| 4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills |
| 5.Hammer mill: screens for sizing and separating |
| 6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection |
| 7.Pollution control: filters, separators |
| 8.Mining: screens |
| 9.Security: screens, walls, doors, ceilings, guards |
| 10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates |
Product Packing
1.waterproof paper then PVC shrinked
2.PVC shrinked only
3.black waterproof paper only
4.waterproof paper then metal/wooden pallet
5.plastic film then carton. Also at your request
Production Show
