Product Details:
Payment & Shipping Terms:
|
| Features: | Light Weight / Superior Resistance | Material: | Stainless Steel, Carbon Steel, Galvanized Plate, Aluminum, Brass, Copper |
|---|---|---|---|
| Process: | Perforated | Thickness: | 0.2-4.0mm |
| Hole Size: | 1.0-15mm | Hole Shape: | Square/round/hexagonal/slotted Hole |
| Packing: | Waterproof Paper Then PVC Shrinked | Normal Size: | 1 X 2 M |
| Keyword: | Perforated Wire Mesh | Certification: | ISO9001:2015 |
| Port Of Loading: | Tianjin Xingang Port | Payment Term: | L/C, T/T |
| Technique: | Bending, Welding, Decoiling, Cutting, Punching | Place Of Origin: | Hebei Province,China |
| MOQ: | 100 ㎡ | Product Name: | Punched Metal Mesh |
| Application: | Security, Sifting, Machinery Guards | ||
| High Light: | stainless 304 punched steel mesh,1.5mm hole diameter punched steel mesh,security fence perforated metal wire mesh |
||

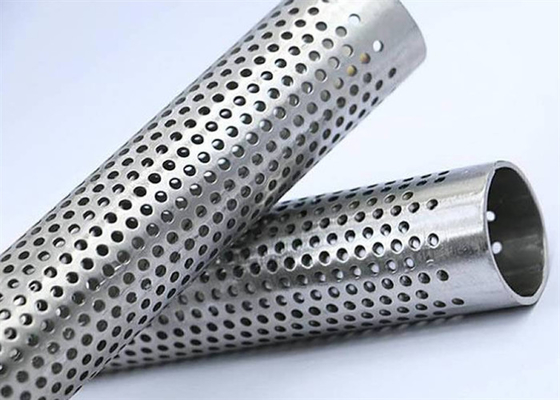

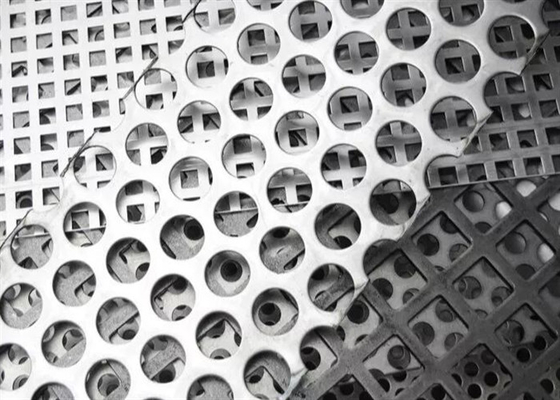

Stainless Steel 304 1.5mm Hole Diameter Punched Metal Mesh For Security Fence
Punched Metal Mesh Description
Perforated wire metal is one of the most versatile and popular metal products on the market today. Perforated sheet can range from light to heavy gauge thickness and any type of material can be perforated, such as perforated carbon steel. Perforated metal plate is versatile, in the way that it can have either small or large aesthetically appealing openings. This makes perforated sheet metal ideal for many architectural metal and decorative metal uses. Perforated metal is also an economical choice for your project.
Place of Origin:Hebei, China
Material:Mild steel, galvanized sheet, ss sheet, aluminum plate, etc
Type:Perforated Mesh
Weave Style:Punching, cleaning
Technique:Perforated
Product name:Steel Perforated Metal Mesh
Hole shape:Round, square, hexagonal, scale, etc
Surface treatment:Powder coated, galvanized, oxidation, PVDF
Plate Thickness:0.3-2mm
Aperture:3mm-200mm
Panel Size:1.2*2.4m, 1.22*2.44m, 1.5*3m etc.
Color:Blue, red, black, gray, orange, green, white, etc
Feature:Wear-resisting, smooth, beautiful, durable, low maintenance
Usage:Liquid Filter, decoration, sound insulation,wall & ceiling panels
Punched Metal Mesh Advantages
Punched Metal Mesh Specification
| The common sizes of Suicheng Metal Product CO.,Ltd | |||||||
| Material | Thickness of Metal (mm) | HoleDia. (mm) | Pitch(mm) | SheetWidth (m) | Sheet Length (m) | Porosity (%) |
Weight (kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | ||
Punched Metal Mesh Application
Perforated Metal Mesh used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded carbon steel can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.
Punched Metal Mesh Packing
Bundles, seaworthy wooden cases.With or without edge protector, steel hoop and seals, or as per customers' requirements.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM,25MTS
4 0ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM,27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM,27MTS
Punched Metal Mesh Show
