PVC Coated Green Color Palisade Europe Fence 2.4m W Pale 70mm For Garden

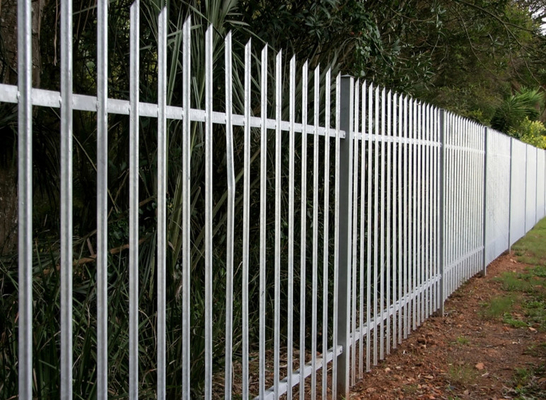

Description of Steel Palisade Fencing
Palisade fence is a popular fence in European in the past, however, in recent years, great changes have taken place in personal aesthetic value, so the palisade fence become popular among our life. The palisade fence consists of many components, each of them is indispensable. We can provide you a complete palisade panel, we can also provide fittings separately.
Steel Palisade Fence Detail
- Palisade fence: One pointed, triple pointed, rounded, rounded & notched and square top.
- Palisade gate: Singular leaf or double leaf, swing or sliding gate, cantilever gate.
- Steel palisade fence: Made of low carbon steel, mild steel, hot or cold rolled steel.
- Galvanized palisade fence: Palisade fence or palisade gate can be finished with hot-dipped or electric galvanized.
- Palisade pales: The pales can be W section, D section and angle section.
- Palisade post: The palisade posts have square type and RSJ beam type.
- Palisade rail: Angle type with slots to fix.
- Palisade fittings: Connecting parts include fishplates, post clamps, bolts and nuts.
Specifications of Steel Palisade Fence
|
Fence panel height
|
1m-6m
|
|
Fence panel width
|
1m-3m
|
|
Pale height
|
0.5m-6m
|
|
Pale width
|
W pale 65-75mm d pale 65-70mm
|
|
Pale thickness
|
1.5-3.0mm
|
|
Angle rail
|
40mmx40mm 50mmx50mm 63mmx63mm
|
|
Angle rail thickness
|
3mm-6mm
|
|
RSJ post
|
100mmx55mm 100mmx68mm 150mmx75mm
|
|
Square post
|
50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
|
|
Square post thickness
|
1.5mm-4.0mm
|
|
Straight fishplates or post clamps
|
30mmx150mmx7mm 40mmx180mmx7mm
|
|
Bolts and nuts
|
M8XNo.34 for pale fixing M12xNo.4 for rail fixing
|
Package of Steel Palisade Fence
1. LCL: first packed with plastic film then on the pallets
2. FCL: Nude packing
3.other special package according to customers' requirements
Features of Steel Palisade Fence
• Easy installation
• With a high cost level compare with other type fence
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability
• Strong and high security, it is possible of putting concertina razor wire at the top
Applications of Steel Palisade Fence
*Electricity Providers and Regional Networks
*Water Industry
*Telecoms Industry
*Police and Law enforcement
*Railway Line/Track Protection
*Motorways and Highway Protection
*Channel tunnel and European Transport networks
*Schools, Colleges & Universities
*Research Laboratories
Head Types of W&D Section Pales
