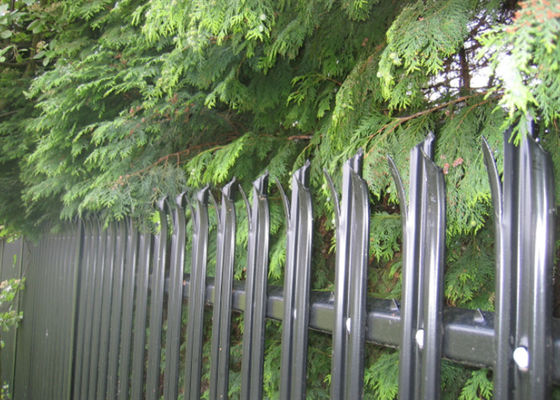

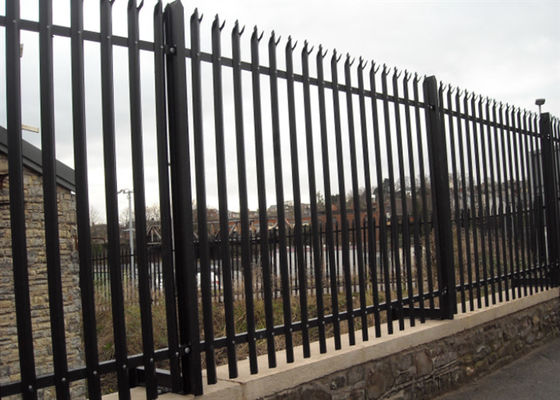

70mm W Pale 3.0mm Hot Dip Galvanized Steel Palisade Fencing for Residential Security

Large Image : 70mm W Pale 3.0mm Hot Dip Galvanized Steel Palisade Fencing for Residential Security

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-PF

Payment & Shipping Terms:

Minimum Order Quantity:	50 Sets
Price:	$5.5-13.6/㎡
Packaging Details:	Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Supply Ability:	5000Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Steel Palisade Fencing	Key Word:	Palisade Fencing / Euro Fence
Material:	Mid Steel	Fence Panel Height:	1-6m
Fence Panel Width:	1-3m	Pale Types:	W Pale / D Pale
W Pale Width:	65-75mm	D Pale Width:	65-70mm
Angle Rail:	40mmx40mm 50mmx50mm 63mmx63mm	Angle Rail Thickness:	3mm-6mm
Surface Treatment:	Galvanized/PVC Coated	Feature:	Easily Assembled, High Strength
Sample:	Provide	MOQ:	50 Sets
Certification:	ISO9001:2015; CO	Packing:	Pallet
Highlight:	w pale galvanised palisade fencing , residential galvanised palisade fencing , hot dip galvanized metal palisade fencing

W Pale 70mm 3.0mm Galvanised Palisade Fencing Hot Dip For Residential

Product Overview

Hot Dip Galvanized W Pale 70mm 3.0mm Steel Palisade Fencing For Residential

Palisade fencing, once popular in Europe, has gained renewed popularity due to evolving aesthetic preferences. This comprehensive fencing system consists of multiple essential components, available either as complete panels or individual fittings.

Available Components

Palisade Fence: One pointed, triple pointed, rounded, rounded & notched, and square top styles
Palisade Gate: Singular leaf or double leaf, swing or sliding gate, cantilever gate options
Steel Palisade Fence: Manufactured from low carbon steel, mild steel, hot or cold rolled steel
Galvanized Palisade Fence: Available with hot-dipped or electric galvanized finishes
Palisade Pales: W section, D section, and angle section profiles
Palisade Post: Square type and RSJ beam type options
Palisade Rail: Angle type with slots for secure fixing
Palisade Fittings: Complete connecting parts including fishplates, post clamps, bolts and nuts

Pale Type Comparison

D Section Palisade Fencing: Suitable for general security applications. Provides effective protection against opportunistic crime while serving as an excellent visual deterrent.

W Section High Security Fencing: An extremely effective first line of defense against aggressive intruders. Suitable for high security applications, W section palisade offers superior strength and durability compared to D section, making it significantly more effective for high security fencing requirements.

Technical Specifications

Component	Specifications
Fence Panel Height	1m - 6m
Fence Panel Width	1m - 3m
Pale Height	0.5m - 6m
Pale Width	W pale 65-75mm / D pale 65-70mm
Pale Thickness	1.5 - 3.0mm
Angle Rail	40mm×40mm, 50mm×50mm, 63mm×63mm
Angle Rail Thickness	3mm - 6mm
RSJ Post	100mm×55mm, 100mm×68mm, 150mm×75mm
Square Post	50mm×50mm, 60mm×60mm, 75mm×75mm, 80mm×80mm
Square Post Thickness	1.5mm - 4.0mm
Straight Fishplates/Post Clamps	30mm×150mm×7mm, 40mm×180mm×7mm
Bolts and Nuts	M8×No.34 for pale fixing / M12×No.4 for rail fixing

Packaging Options

LCL: Packed with plastic film then secured on pallets
FCL: Nude packing
Other special packaging arrangements available according to customer requirements

Key Features

Superior Strength & Security: Steel construction provides excellent strength, high rigidity, and superior damage and intrusion resistance for maximum security protection.

Enhanced Durability: Advanced surface treatments ensure high rust and corrosion resistance, significantly extending service life.

Low Maintenance: Galvanized, PVC, or powder-coated finishes create smooth surfaces that require minimal maintenance and can be easily restored to like-new condition.

Easy Installation: Simple to install and remove, facilitating easy replacement of damaged or outdated sections.

Aesthetic Appeal: Beautiful and elegant design enhances living and working environments without obstructing visibility.

Cost-Effective: Competitive pricing makes palisade fencing an excellent value proposition for high-level security applications.

Applications

With exceptional strength and rigidity, steel palisade fencing is suitable for diverse applications including schools, factories, agricultural facilities, government buildings, highways, and railway stations. Beyond providing superior security, its smooth and bright surface serves as an attractive environmental enhancement.

W & D Section Pale Head Types
