Powder Coated Green Color 358 Security Fencing For Residential Area

Powder Coated Green Color 358 Security Fencing For Residential Area
Powder Coated Green Color 358 Security Fencing For Residential Area Powder Coated Green Color 358 Security Fencing For Residential Area

Large Image :  Powder Coated Green Color 358 Security Fencing For Residential Area

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-ACF
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability: 500PCS PER MONTH
Detailed Product Description
Material: Low Carbon Steel Wire Hole Size: 3"x0.5" / 76.2*12.7mm
Wire Diameter: 4.0mm Feature: Anti-corrosion/Anti-climb/Anti-cut
Post Size: 60x60mm, 60x80mm, 80x80mm Surface Treatment: Galvanized,powder Coated,PVC Coated
Fence Topping: Razor Wire, Barbed Wire, Anti Climb Spikes Certification: ISO9001:2015
Welded Strength: Range 540–690 N/m2. Color: Green RAL 6005/Black RAL 9005.
Application: Garden Fence, Highway Fence, Sport Fence Style: Customer Demand
Fence Height: 1.2m-3.0m ( Suggest Size : 2m/2.4m/3m ) Fence Width: 1.5m-3.0m
Sample: Provide Package: Pallet
High Light:

powder coated green 358 security fencing

,

residential area 358 security fencing

,

powder coated green 358 mesh fencing

Powder Coated Green Color 358 Security Mesh Fence For Residential Area





Description of 358 Security Fencing



Why is it called 358 Security Fence? '358' comes from its measurements 3" × 0.5" × 8 gauges which equates to approx. 76.2mm × 12.7mm × 4mm (Length × height × Diameter) in metric.

358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. 358 fences are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. 358 security fencing panel can be bent in part to enhance the aesthetic effect.

  • Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
  • Wire diameter: 4 mm horizontal wire and vertical Wire.
  • Weld strength: range 540–690 N/m2.
  • Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
  • Colors: Green RAL 6005, or Black RAL 9005.

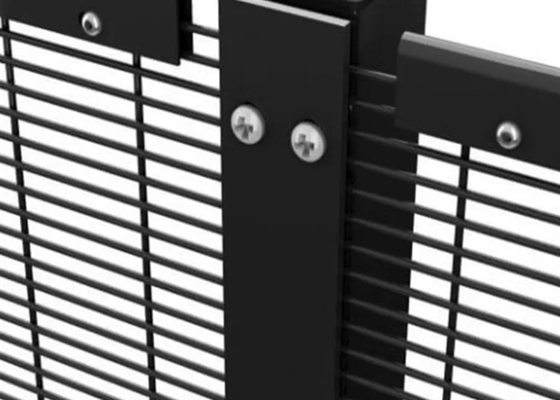

  • Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.

Specifications of 358 Security Fencing



                                          Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')
3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.



358 fence 2.1m 2.4m 3.0m
358 fence hight 2134mm 2438mm 2997mm
358 fence width 2515mm 2515mm 2515mm
358 fence hole size 12.7*76.2mm 12.7*76.2mm 12.7*76.2mm
wire 4mm 4mm 4mm
wire if need other wire diameter can order
358 fence posts 60*60*3mm 60*60*3mm 60*60*3mm
358 fence posts length 2.8m 3.1m 4.0m
no of fixings 8 9 11



Features of 358 Security Fencing



1.Anti-climbing - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.

2.Anti-shear - the wire diameter is large, the mesh is dense, making the wire cut useless.

3.Beautiful appearance - the mesh surface is flat, and the perspective is higher.



Surface treatment of 358 Security Fencing


1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)



Application of 358 Security Fencing

  • Bridge anti-climb guarding & guard safety screening.
  • Psychiatric hospital security fencing.
  • Prison security fencing.
  • Factory machine guards.
  • Walkway security fencing.
  • Airport security fencing.
  • Shipping Port Security fencing.
  • Electrical sub-station fencing.
  • Gas pipelines security fence.
  • High security living area and private field fence.

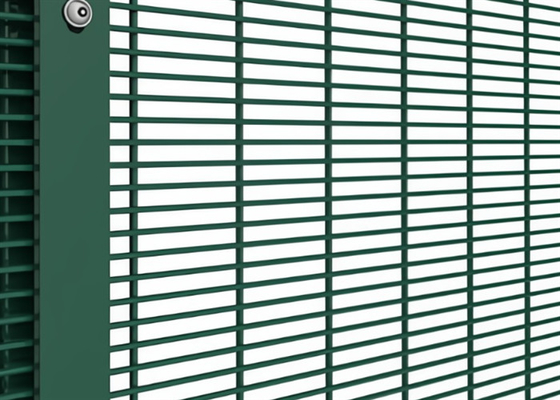

Display of 358 Security Fencing



Powder Coated Green Color 358 Security Fencing For Residential Area 0





Powder Coated Green Color 358 Security Fencing For Residential Area 1



Powder Coated Green Color 358 Security Fencing For Residential Area 2







Powder Coated Green Color 358 Security Fencing For Residential Area 3



Powder Coated Green Color 358 Security Fencing For Residential Area 4



FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
