Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5"

Large Image : Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5"

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-ACF

Payment & Shipping Terms:

Minimum Order Quantity:	50 PCS
Price:	Negotiable
Packaging Details:	1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability:	500PCS PER MONTH

Contact Now

Detailed Product Description

Material:	Low Carbon Steel Wire	Hole Size:	3"x0.5" / 76.2*12.7mm
Wire Diameter:	4.0mm Or Customized	Feature:	Anti-corrosion/Anti-climb/Anti-cut
Post Size:	60x60mm, 60x80mm, 80x80mm	Surface Treatment:	Galvanized,powder Coated,PVC Coated
Fence Topping:	Razor Wire, Barbed Wire, Anti Climb Spikes	Fence Height:	3.0m, 2.4m, 2.2m, 2.0m Or Customized
Certification:	ISO9001:2015	Welded Strength:	Range 540–690 N/m2.
Color:	Green RAL 6005/Black RAL 9005.	Application:	Residential, School, Outdoor,Garden Fence
Port Of Loading:	Tianjin Xingang Port	Package:	By Steel Pallet
Highlight:	galvanized 358 security fencing , garden 358 security fencing , powder coated 358 mesh fencing

Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5"

Description of 358 Security Fencing

Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540–690 N/m2.
Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: Green RAL 6005, or Black RAL 9005.
Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.

The mesh size of horizontal wire 358 security fence is 76.2*12.7mm(center to center), the distance of horizontal wire is 12.7mm, and the distance of vertical wire is 76.2mm, it is very popular in US Market and Malaysia Market. Horizontal wire 358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.

Anti-climbing - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.

Anti-shear - the wire diameter is large, the mesh is dense, making the wire cut useless.

Beautiful appearance - the mesh surface is flat, two-dimensional three-dimensional, and the perspective is higher.

Horizontal wire 358 Security Fence Uses: Fence, decoration, protection and other facilities in industries such as industry, agriculture, municipalities, transportation, etc. It also used in road green belt protection nets.

Specifications of 358 Security Fencing

Specification of 358 Security Fencing
Mesh Opening	Wire Diameter	Panel Height	Panel Width	Post Type
12.7x76.2mm (0.5'' x 3'')	3/3.5/4mm	1.2-6m	2.0-3.1m	Square Post(SHS) 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm	Rectangular Post(RHS) 40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm 60x80x2.0/2.5/3.0mm 80x100x2.0/2.5/3.0mm



Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.

358 fence	2.1m	2.4m	3.0m
358 fence hight	2134mm	2438mm	2997mm
358 fence width	2515mm	2515mm	2515mm
358 fence hole size	12.7*76.2mm	12.7*76.2mm	12.7*76.2mm
wire	4mm	4mm	4mm
wire	if need other wire diameter can order
358 fence posts	60603mm	60603mm	60603mm
358 fence posts length	2.8m	3.1m	4.0m
no of fixings	8	9	11

Features of 358 Security Fencing

Good viewing visibility, it is a type of high security clear view fencing.
Welded well at each intersection.
Intrusion resistant, with extremely strong double vertical wire design.
Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
Corrosion resistant with zinc aluminum alloy and PVC powder coating.
Surface finish after welding, every weld-point are protected well.
High strength with fully integrated with posts and anti-tamper fixings.
Fence security toppings are optional.
Easy for installation and free maintenance.
5 year warranty.

Surface treatment of 358 Security Fencing

1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)

Packing of 358 Security Fencing

Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.

Application of 358 Security Fencing

Psychiatric hospital security fencing

Prison security fencing

Factory machine guards

Walkway security fencing

Airport security fencing

Shipping Port Security fencing

Electrical sub-station fencing

Gas pipelines security fence

High security living area and private field fence.

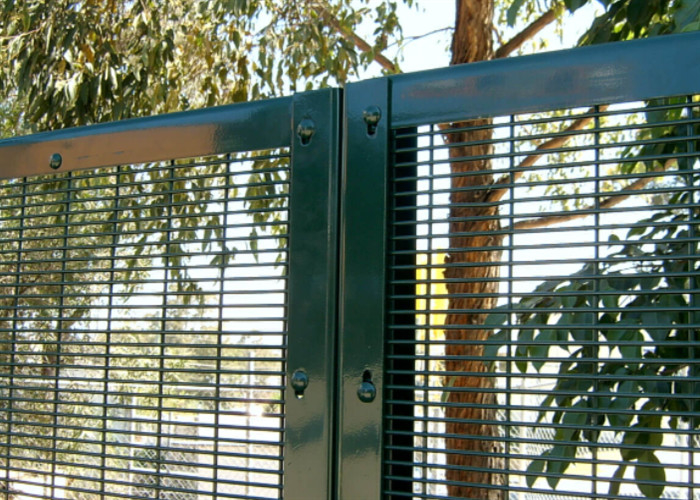

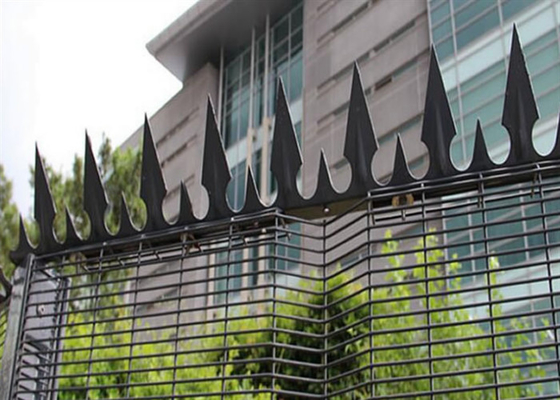

Display of 358 Security Fencing

Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5" 0

Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5" 1

Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5" 2

Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5" 3

Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5" 4

Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5" 5

Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5" 6

Galvanized / Powder Coated 358 Security Fencing For Garden 3" × 0.5" 7

FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
