Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm

Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm
Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm

Large Image :  Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-ACF
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: Negotiable
Packaging Details: 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability: 500PCS PER MONTH
Detailed Product Description
Material: Low Carbon Steel Wire Hole Size: 3"x0.5" / 76.2*12.7mm
Wire Diameter: 4.0mm Or Customized Feature: Anti-corrosion/Anti-climb/Anti-cut
Post Size: 60x60mm, 60x80mm, 80x80mm Surface Treatment: Galvanized,powder Coated,PVC Coated
Type: Fencing, Trellis & Gates Fence Topping: Razor Wire, Barbed Wire, Anti Climb Spikes
Fence Height: 3.0m, 2.4m, 2.2m, 2.0m Or Customized Certification: ISO9001:2015
Welded Strength: Range 540–690 N/m2. Color: Green RAL 6005/Black RAL 9005.
Application: Residential, School, Outdoor,Garden Fence Port Of Loading: Tianjin Xingang Port
Package: Steel Pallet Payment Term: T/T L/C
High Light:

oem 358 high security fence

,

welded 358 high security fence

,

house 358 mesh fence

Galvanized 358 Security Fencing For Bundary Wall 3" × 0.5" × 8 Gauge OEM





Description of 358 Security Fencing



358 WIRE MESH FENCE also known as " PRISON MESH "or "358 SECURITY FENCE", it is a special fencing panel. ‘358' comes from its measurements 3" x 0.5" x 8 gauge which is approx. 76.2mm x 12.7mm x 4mm in metric. It is a professional structure designed combined with an steel framework coated with zinc or RAL color powder.358 security fencing panel can be bent in part to enhance the aesthetic effect.



Specifications of 358 Security Fencing



                                          Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')
3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.



358 fence 2.1m 2.4m 3.0m
358 fence hight 2134mm 2438mm 2997mm
358 fence width 2515mm 2515mm 2515mm
358 fence hole size 12.7*76.2mm 12.7*76.2mm 12.7*76.2mm
wire 4mm 4mm 4mm
wire if need other wire diameter can order
358 fence posts 60*60*3mm 60*60*3mm 60*60*3mm
358 fence posts length 2.8m 3.1m 4.0m
no of fixings 8 9 11



Features of 358 Security Fencing

  • Good viewing visibility, it is a type of high security clear view fencing.
  • Welded well at each intersection.
  • Intrusion resistant, with extremely strong double vertical wire design.
  • Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
  • Corrosion resistant with zinc aluminum alloy and PVC powder coating.
  • Surface finish after welding, every weld-point are protected well.
  • High strength with fully integrated with posts and anti-tamper fixings.
  • Fence security toppings are optional.
  • Easy for installation and free maintenance.

Surface treatment of 358 Security Fencing



1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)



Packing of 358 Security Fencing



Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.

Application of 358 Security Fencing

Applications for the use of 358 mesh as high-security fencing include airports, rail corridors, sub substations, power plants, and commercial and industrial sites. 358 mesh is also commonly used for factory machine guards, balustrade infills, and on bridges as anti-climb fencing.
358 fence is designed as an anti-climbing and anti-cutting barrier with good weldability. It is therefore characterized by security and durability. It is
very suitable for electronic alarm and detection systems, prisons, fencing of military sites and airports, industrial and commercial properties,
warehouses, power plants, offshore petrochemical facilities, harbor perimeters, laboratories, secure hospitals, schools, and parks, recreational and
entertainment areas.
358 mesh fence will provide them with durable and secure perimeter protection and an attractive appearance. The 3.60 m high fence is generally
used in schools, parks, and recreational areas. 5.20 m height fences are widely used in prisons and military installations. Alternatively, if 358 mesh
fencing is added to barbed wire, wire mesh, and rota spikes, it provides a higher level of security.

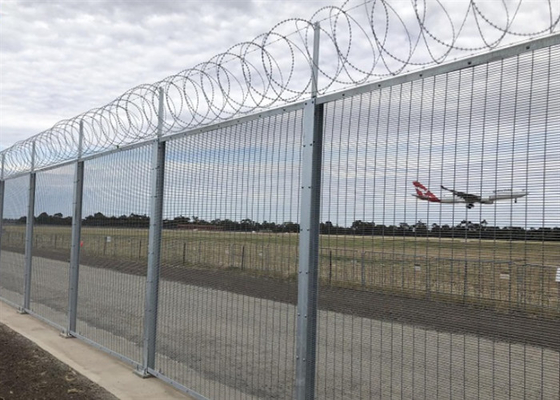

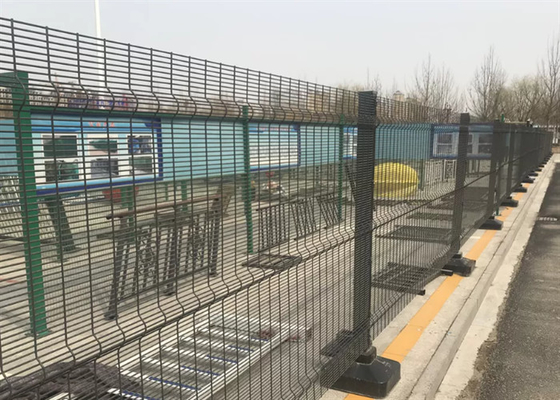

Display of 358 Security Fencing



Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm 0



Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm 1



Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm 2



Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm 3







Oem 4.0mm 358 High Security Fence Welded Galvanized House 76.2 X 12.7mm 4



FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
