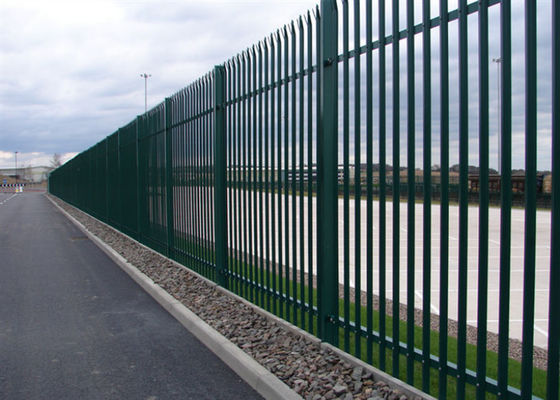

PVC Coated Green Steel Palisade Fencing with 2.4mm Pale for Railway Security

Large Image : PVC Coated Green Steel Palisade Fencing with 2.4mm Pale for Railway Security

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-PF

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	$5.5-13.6/㎡
Packaging Details:	Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Supply Ability:	5000Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Steel Palisade Fencing	Key Word:	Palisade Fencing
Material:	Mid Steel	Fence Panel Height:	1-6m
Fence Panel Width:	1-3m	Pale Types:	W Pale / D Pale
W Pale Width:	65-75mm	D Pale Width:	65-70mm
Angle Rail:	40mmx40mm 50mmx50mm 63mmx63mm	Angle Rail Thickness:	3mm-6mm
Surface Treatment:	Galvanized/PVC Coated	Feature:	Easily Assembled, Sustainable, Rodent Proof
Certification:	ISO9001:2015	Port Of Loading:	Tianjin Xingang Port
MOQ:	Accepted	Sample:	For Free
Brand Name:	YuanHai
Highlight:	pvc coated green steel palisade fencing , 2.4mm pale steel palisade fencing , railway metal palisade fencing

PVC Coated Green Steel Palisade Fencing Europe 2.4mm Pale For Railway

Product Overview

W pale Palisade fence (straight type) is the most popular choice for high security fencing applications. This product has been successfully shipped to Europe, Middle East, Africa, and Australia, serving as both private and public fencing with specialized high-security capabilities.

Product Details

Palisade fence: Available in one pointed, triple pointed, rounded, rounded & notched, and square top configurations
Palisade gate: Options include singular leaf or double leaf, swing or sliding gate, and cantilever gate systems
Steel construction: Manufactured from low carbon steel, mild steel, hot or cold rolled steel
Surface treatment: Available with hot-dipped or electric galvanized finishes
Pale sections: W section, D section, and angle section options
Post types: Square type and RSJ beam type posts
Rail system: Angle type with slots for secure fixing
Fittings: Complete with fishplates, post clamps, bolts and nuts

Technical Specifications

Component	Specifications
Fence panel height	1m-6m
Fence panel width	1m-3m
Pale height	0.5m-6m
Pale width	W pale 65-75mm, D pale 65-70mm
Pale thickness	1.5-3.0mm
Angle rail	40mm×40mm, 50mm×50mm, 63mm×63mm
Angle rail thickness	3mm-6mm
RSJ post	100mm×55mm, 100mm×68mm, 150mm×75mm
Square post	50mm×50mm, 60mm×60mm, 75mm×75mm, 80mm×80mm
Square post thickness	1.5mm-4.0mm
Straight fishplates/post clamps	30mm×150mm×7mm, 40mm×180mm×7mm
Bolts and nuts	M8×No.34 for pale fixing, M12×No.4 for rail fixing

Packaging Options

LCL: Packed with plastic film then on pallets
FCL: Nude packing
Custom packaging according to customer requirements

Key Features

High Security: Steel construction provides excellent strength, high rigidity, and superior damage and intrude resistance

Durability: Surface treatments ensure high rust and corrosion resistance for extended service life

Low Maintenance: Galvanized, PVC or powder coated finishes create smooth surfaces requiring minimal maintenance

Easy Installation: Simple to install, remove, and replace damaged components

Aesthetic Design: Beautiful, modern appearance that enhances surroundings without obstructing views

Cost-Effective: Competitive pricing makes this a high-value security fencing solution

Applications

Galvanized palisade fence with its attractive appearance and eco-friendly advantages is widely used in industrial areas, airports, railways, schools, and various high-security facilities.

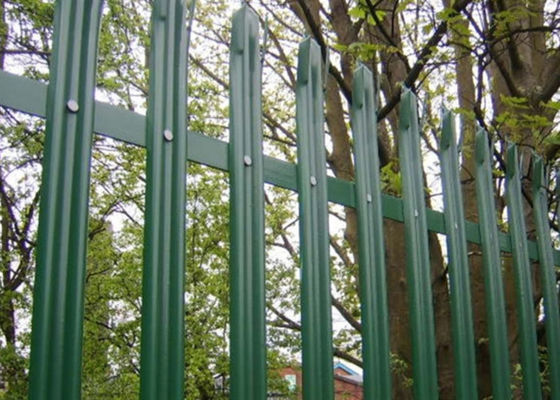

Head Types of W & D Section Pales
