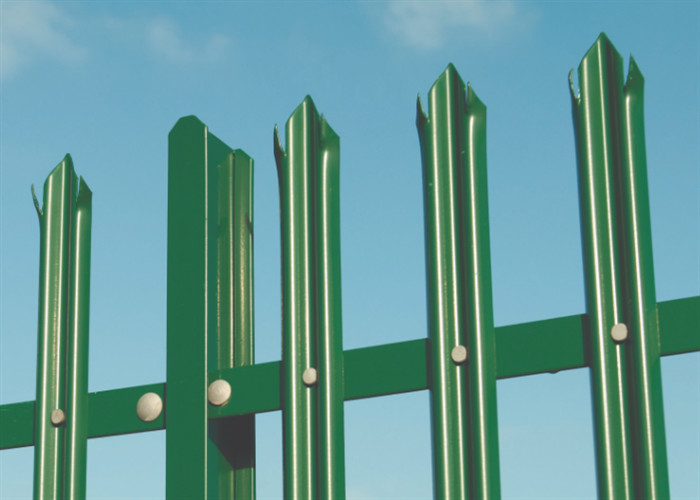

Triple Point Garden Galvanized Palisade Fencing W Pale 65mm

Triple Point Garden Galvanized Palisade Fencing W Pale 65mm
Triple Point Garden Galvanized Palisade Fencing W Pale 65mm Triple Point Garden Galvanized Palisade Fencing W Pale 65mm

Large Image :  Triple Point Garden Galvanized Palisade Fencing W Pale 65mm

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-PF
Payment & Shipping Terms:
Minimum Order Quantity: 10Sets
Price: Negotiable
Packaging Details: Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Supply Ability: 5000Sets Per Month
Detailed Product Description
Product Name: Steel Palisade Fencing Key Word: Palisade Fencing
Material: Low Carbon Steel, Mild Steel, Hot Or Cold Rolled Steel. Brand Name: YH
Fence Panel Height: 1-6m Fence Panel Width: 1-3m
Pale Types: W Pale / D Pale W Pale Width: 65-75mm
D Pale Width: 65-70mm Angle Rail: 40mmx40mm 50mmx50mm 63mmx63mm
Angle Rail Thickness: 3mm-6mm Surface Treatment: Galvanized/PVC Coated
Feature: Easily Assembled, High Strength Place Of Origin: Hebei Province,China
Loading Port: Tianjin Xingang Port Sample: For Free
MOQ: 20 SETS Certification: ISO9001"2005
Highlight:

triple point galvanized palisade fencing

,

garden galvanized palisade fencing

,

w pale galvanised palisade fencing

Galvanized Steel Palisade Fence With Triple Point For Garden W Pale 65mm​





Description of Steel Palisade Fencing

  • Material: low carbon steel, mild steel, hot or cold rolled steel.
  • Surface treatment: hot-dipped galvanized (505 g/m2), electric galvanized.
  • Head type: one pointed, triple pointed, rounded, rounded & notched, square.
  • Pales section: D section pales, W section pales, angle section pales.
  • Height: 1.2 m to 3.6 m, as your request.
  • Pale thickness: W section is 2 mm - 3 mm, D section is 2.5 mm - 4.0 mm.
  • Package: plastic film, wooden pallet.

The galvanization steel palisade fencing is widely used in the industrial production. For example, it can be used for fence, like garden fence, farm fence, highway fence and railway fence. Galvanization has two types: electric galvanized and hot-dipped galvanized.

Specification:



Specifications of Steel Palisade Fence



Fence panel height
1m-6m
Fence panel width
1m-3m
Pale height
0.5m-6m
Pale width
W pale 65-75mm d pale 65-70mm
Pale thickness
1.5-3.0mm
Angle rail
40mmx40mm 50mmx50mm 63mmx63mm
Angle rail thickness
3mm-6mm
RSJ post
100mmx55mm 100mmx68mm 150mmx75mm
Square post
50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
Square post thickness
1.5mm-4.0mm
Straight fishplates or post clamps
30mmx150mmx7mm 40mmx180mmx7mm
Bolts and nuts
M8XNo.34 for pale fixing M12xNo.4 for rail fixing



Package of Steel Palisade Fence



1. LCL: first packed with plastic film then on the pallets
2. FCL: Nude packing
3.other special package according to customers' requirements



Features of Steel Palisade Fence

  • The palisade fence made of steel has good strength, high rigidity, with high damage and intrude resistance, so it can provide highest security.
  • The surface treatment makes the palisade fence own high rust and corrosion resistance, so it will have longer service life.
  • Palisade fence after galvanized, PVC or powder coated will become more smooth, need not maintain frequently and is easy to become a brand-new fence.
  • The palisade fence is easy to install and remove, so it is simple to replace the old or broken one.
  • The style of palisade fence is beautiful and generous, it can decorate the place that you live and work. Further more, it won't block your sight.
  • The price is competitive, so palisade fence is a cost-effective fence to provide the highest security for you.

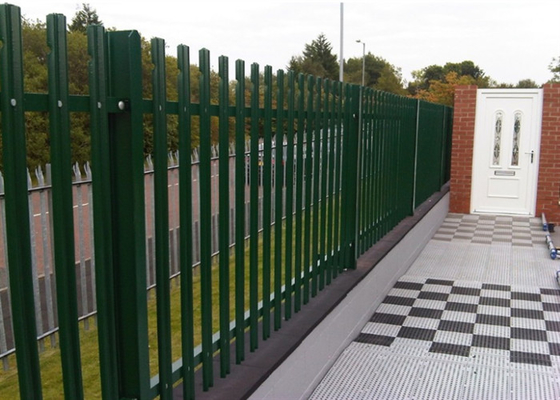

Applications of Steel Palisade Fence





Galvanized palisade fence with beautiful appearance and eco-friendly advantages can be widely used in industrial areas, airports, railways and schools.

*Electricity Providers and Regional Networks

*Water Industry

*Telecoms Industry

*Police and Law enforcement

*Railway Line/Track Protection

*Motorways and Highway Protection

*Channel tunnel and European Transport networks

*Schools, Colleges & Universities

*Research Laboratories



                                                  Head Types of W&D Section Pales



Triple Point Garden Galvanized Palisade Fencing W Pale 65mm 0





Triple Point Garden Galvanized Palisade Fencing W Pale 65mm 1





Triple Point Garden Galvanized Palisade Fencing W Pale 65mm 2Triple Point Garden Galvanized Palisade Fencing W Pale 65mm 3



Triple Point Garden Galvanized Palisade Fencing W Pale 65mm 4



Triple Point Garden Galvanized Palisade Fencing W Pale 65mm 5



Triple Point Garden Galvanized Palisade Fencing W Pale 65mm 6



Triple Point Garden Galvanized Palisade Fencing W Pale 65mm 7







Triple Point Garden Galvanized Palisade Fencing W Pale 65mm 8



Triple Point Garden Galvanized Palisade Fencing W Pale 65mm 9
