SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof

SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof
SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof

Large Image :  SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 5 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Application: Industry, Adsorption, Scrubbing, Stripping Product Name: Stainless Steel Metal Pall Ring
Package: Jumbo Bag + Woden Pallet Surface Area: 62 - 346 M2/m3
Bulk Density: 145 - 345 Kg/m3 Feature: Corrosion And Heat Resistance
Certification: ISO9001:2015 Place Of Origin: Hebei,Province
MOQ: 1 Cubic Sample: For Free
Brand Name: Yuanhai
High Light:

25mm Distillation Column Packing

,

Distillation Column Packing ISO9001

,

distillation tower packing corrosion proof

SS 304 Metal Random Packing For Distillation Column ISO9001:2015 16mm 25mm





Product Description of Metal Random Packing

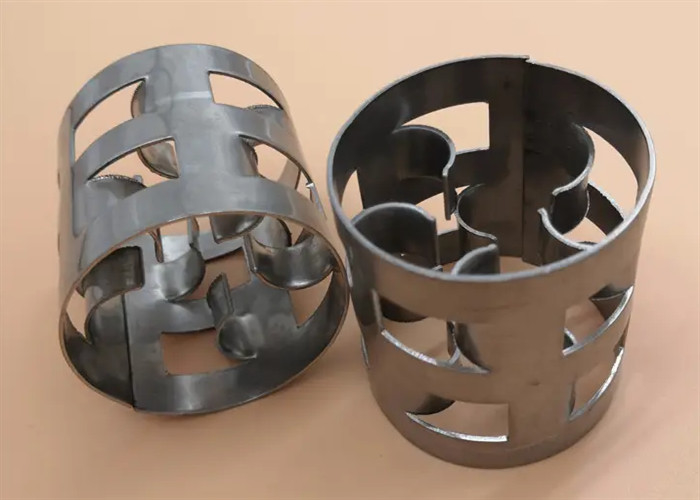

Pall ring is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc...



Product Name Stainless Steel Metal Pall Ring
Material metal, stainless steel, carbon steel, Aluminum alloy etc.
Surface Area 62 - 346 m2/m3
Bulk Density 145 - 345 kg/m3
Feature Corrosion and Heat Resistance
Size 16mm,25mm,38mm,50mm, 76mm,or customized
Certification ISO9001
Place of Origin Hebei Province,China
Brand Name Yuanhai



Specifications of Metal Random Packing



Model Pall Ring
Material Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.

Sizes

(mm)

Bulk density

(kg/m3)

Number

(per m3)

Surface area

(m2/m3)

Free volume

(%)

16×16×0.3 345 201000 346 95.5
25×25×0.3 214 51000 212 96.2
38×38×0.4 193 15000 145 96.7
50×50×0.5 182 6500 106 97.5
76×76×0.6 142 1830 69 97.4
89×89×0.7 145 1160 62 97.1



Features of Metal Random Packing



1.A versatile packing used in distillation, absorption and other operations.

2.Used in both deep vacuum and high pressure towers.

3.Chemxin metal pall ring is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.



Application of Metal Random Packing



Metal Pall ring for Vacuum distillation , Heat transfer as below shows:

Wet scrubbers for gas absorption

Cooling towers for heat transfer

Mist eliminators for liquid particle removal

Gas absorption columns

Gas strippers

Air washers



By words you may find us:



pall rings;pall rings packing;pall ring packing specification

pall ring hetp;pall rings wiki;pall ring packing hetp

pall rings for sale;pall rings manufacturers;pall ring company

pall ring basket;pall ring packing;pall ring manufacturers

pall ring packing price;pall ring application;pall ring australia



SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof 0



SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof 1



SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof 2



SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof 3



SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof 4



SS304 16mm 25mm Distillation Column Packing ISO9001 corrosion proof 5



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.
