Stainless Steel 304 Metal Random Packing 16*16*0.3mm For Mass transfer
Product Description of Metal Random Packing

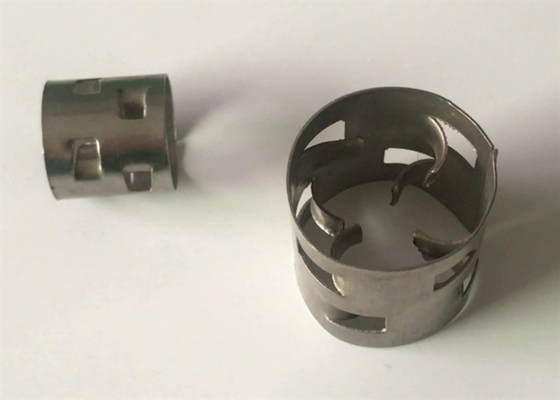

Metal Random Packing is made of a metal thin sheet and have a special structure, there are two row window with ligules towards inside on the ring wall,each row window has five ligules bend to inside of the ring and point to the center, at which the liqules touch each other, the position of up and down window is stagger,usually the area of window is about 35% of the whole ring area. The window on the ring wall let distribution and mass transfer efficiency of liquid and gas inside packing betthr than Raschig Ring.
| Product Name |
Stainless Steel Metal Pall Ring |
| Material |
metal, stainless steel, carbon steel, Aluminum alloy etc. |
| Surface Area |
62 - 346 m2/m3 |
| Bulk Density |
145 - 345 kg/m3 |
| Feature |
Corrosion and Heat Resistance |
| Size |
16mm,25mm,38mm,50mm, 76mm,or customized |
| Certification |
ISO9001 |
| Place of Origin |
Hebei Province,China |
| Brand Name |
Yuanhai |
Specifications of Metal Random Packing
| Model |
Pall Ring |
| Material |
Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. |
|
Sizes
(mm)
|
Bulk density
(kg/m3)
|
Number
(per m3)
|
Surface area
(m2/m3)
|
Free volume
(%)
|
| 16×16×0.3 |
345 |
201000 |
346 |
95.5 |
| 25×25×0.3 |
214 |
51000 |
212 |
96.2 |
| 38×38×0.4 |
193 |
15000 |
145 |
96.7 |
| 50×50×0.5 |
182 |
6500 |
106 |
97.5 |
| 76×76×0.6 |
142 |
1830 |
69 |
97.4 |
| 89×89×0.7 |
145 |
1160 |
62 |
97.1 |
Advantages of Metal Random Packing
Lower pressure drop
Good liquid/gas distribution and higher mass transfer efficiency versatility,easily wettable, high resistance to fouling ,high
temperature.
High Mechanical strength ,suitble for depper beds
Good liquid/gas distribution and higher mass transfer efficiency versatility
Application of Metal Random Packing
It is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection,etc.(such as: Device of isolation, absorption, distillation, desorption, common decompression.)
