Product Details:
Payment & Shipping Terms:
|
| Keyword: | Metal Random Tower Packing | Material: | Metal, Stainless Steel,Aluminum Alloy Etc. |
|---|---|---|---|
| Application: | Isomers Separation, Extraction And Distillation | Size: | Stainless Steel Metal Pall Ring16mm,25mm,38mm,50mm,or Customized |
| Package: | Jumbo Bag, Carton Box, Wooden Case, Or Customized | Surface Area: | 62 - 346 M2/m3 |
| Bulk Density: | 145 - 345 Kg/m3 | Feature: | High Free Volume, Large Void Space; |
| Certification: | ISO9001:2015 | MOQ: | 1 Cubic |
| Packing: | Wooden Box | Lead Time: | Shipped In 7 Days After Payment |
| Port Of Loading: | Tianjin Xingang Port | Sample: | Provide |
| High Light: | Random Tower Packing Customizable,Stainless Steel Pall Rings Customizable,316SS Stainless Steel Pall Rings |
||
316 SS Pall Ring Metal Random Tower Packing Media For Absorption Tower
Product Description of Metal Random Packing
Metal random packing is an advanced improvement of rasching ring, the walls of pall ring is open, height and diameter are the same and it has 4 diametrical ribs towards the inside of each “floor”. Its structure improve distribution of gas-liquid and its efficiency can be improved above 50% and only has half of pressure drop compared with rasching ring.

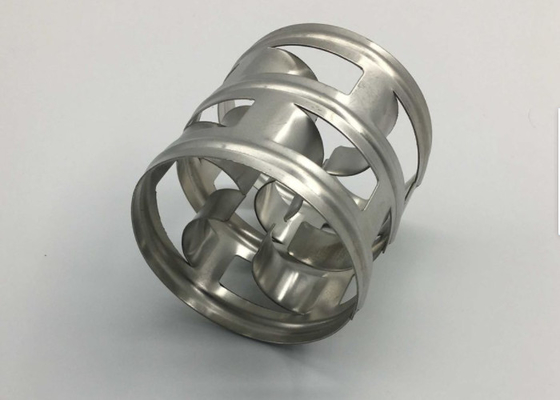

Metal Pall Ring SS304 for Tower Packing are an advancement on the Raschig Ring, with similar cylindrical dimensions but with two rows of punched out holes, with fingers or webs turned into the centre of cylinder. Metal Pall Ring SS304 for Tower Packing has the impact of significantly increasing the performance of the packing, both in terms of throughput, efficiency and pressure drop.
| Product Name | Stainless Steel Metal Pall Ring |
| Material | metal, stainless steel, carbon steel, Aluminum alloy etc. |
| Surface Area | 62 - 346 m2/m3 |
| Bulk Density | 145 - 345 kg/m3 |
| Feature | Corrosion and Heat Resistance |
| Size | 16mm,25mm,38mm,50mm, 76mm,or customized |
| Certification | ISO9001 |
| Place of Origin | Hebei Province,China |
| Brand Name | Yuanhai |
Specifications of Metal Random Packing
| Model | Pall Ring | |||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | |||
|
Sizes |
Bulk density |
Number |
Surface area |
Free volume |
| 16×16×0.3 | 345 | 201000 | 346 | 95.5 |
| 25×25×0.3 | 214 | 51000 | 212 | 96.2 |
| 38×38×0.4 | 193 | 15000 | 145 | 96.7 |
| 50×50×0.5 | 182 | 6500 | 106 | 97.5 |
| 76×76×0.6 | 142 | 1830 | 69 | 97.4 |
| 89×89×0.7 | 145 | 1160 | 62 | 97.1 |
Advantages of Metal Random Packing
Low pressure drop, which leads to reduce energy consumption largely;
Large flexibility, and scale effect is not obvious;
High capacity, small specific gravity, high mass transfer efficiency and so on;
Customized for each type of packing and requirement;
Short delivery time.
Application of Metal Random Packing
Metal random packing is widely used for absorption, fractionation and stripping applications. With its ability of reducing pressure drop and low costs for production, the metal random packing is very suitable in processes which are, for example, heavenly fouled or internals which require frequently replacing of the packings due to corrosive flows.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
