304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm

304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm
304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm 304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm

Large Image :  304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-07
Payment & Shipping Terms:
Minimum Order Quantity: 5 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Keyword: Metal Random Tower Packing Material: Metal, Stainless Steel,Aluminum Alloy Etc.
Application: Isomers Separation, Extraction And Distillation Size: Stainless Steel Metal Pall Ring16mm,25mm,38mm,50mm,or Customized
Package: Jumbo Bag, Carton Box, Wooden Case, Or Customized Surface Area: 62 - 346 M2/m3
Bulk Density: 145 - 345 Kg/m3 Feature: High Free Volume, Large Void Space;
Certification: ISO9001:2015 MOQ: 1 Cubic
Packing: Wooden Box Lead Time: Shipped In 7 Days After Payment
Port Of Loading: Tianjin Xingang Port Sample: Provide
High Light:

76mm Metal Random Packing

,

304SS Metal Random Packing

,

76mm distillation packing



SS 304 Metal Tower / Random Packing For Distillation / Filtration 25*0.3mm


Product Description of Metal Random Packing

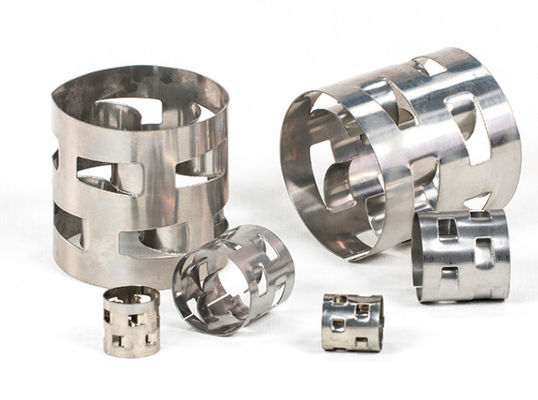

Metal Pall ring is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc...


Product Name Stainless Steel Metal Pall Ring
Material metal, stainless steel, carbon steel, Aluminum alloy etc.
Surface Area 62 - 346 m2/m3
Bulk Density 145 - 345 kg/m3
Feature Corrosion and Heat Resistance
Size 16mm,25mm,38mm,50mm, 76mm,or customized
Certification ISO9001
Place of Origin Hebei Province,China
Brand Name Yuanhai


Specifications of Metal Random Packing


Model Pall Ring
Material Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.

Sizes
(mm)

Bulk density
(kg/m3)

Number
(per m3)

Surface area
(m2/m3)

Free volume
(%)

16×16×0.3 345 201000 346 95.5
25×25×0.3 214 51000 212 96.2
38×38×0.4 193 15000 145 96.7
50×50×0.5 182 6500 106 97.5
76×76×0.6 142 1830 69 97.4
89×89×0.7 145 1160 62 97.1


Advantages of Metal Random Packing


1.A versatile packing used in distillation, absorption and other operations.

2.Used in both deep vacuum and high pressure towers.

3.Yuanhai metal pall ring is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.



Application of Metal Random Packing


Metal random packing is widely used for absorption, fractionation and stripping applications. With its ability of reducing pressure drop and low costs for production, the metal random packing is very suitable in processes which are, for example, heavenly fouled or internals which require frequently replacing of the packings due to corrosive flows.



304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm 0

304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm 1


304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm 2

304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm 3


304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm 4

304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm 5

304SS 76mm Metal Random Packing For Distillation Filtration 25*0.3mm 6

Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.
