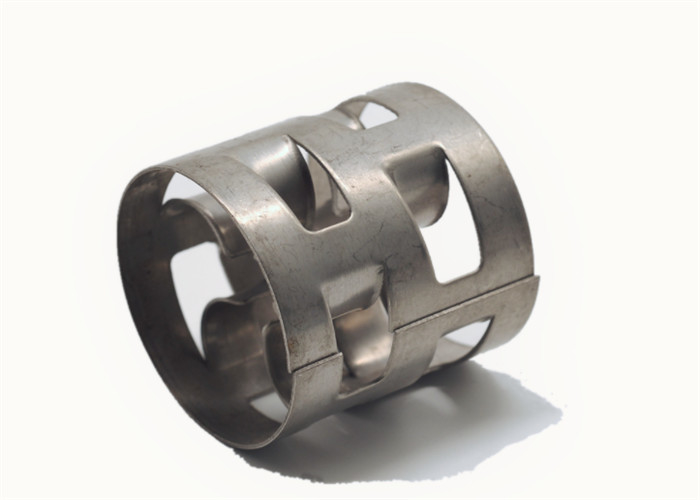

ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm

ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm
ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm

Large Image :  ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-07
Payment & Shipping Terms:
Minimum Order Quantity: 5 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Keyword: Metal Random Tower Packing Pall Ring Material: Metal, Stainless Steel,Aluminum Alloy Etc.
Application: Tower Packing For Distillation/filtration Size: Stainless Steel Metal Pall Ring16mm,25mm,38mm,50mm,or Customized
Package: Jumbo Bag, Carton Box, Wooden Case, Or Customized Surface Area: 62 - 346 M2/m3
Bulk Density: 145 - 345 Kg/m3 Feature: High Free Volume, Large Void Space;
Certification: ISO9001:2015 MOQ: 1 Cubic
Packing: Wooden Box Lead Time: Shipped In 7 Days After Payment
Port Of Loading: Tianjin Xingang Port Payment Term: L/C, T/T
Model Number: YH-RP06 Price: Negotiatable
High Light:

Metal Pall Ring Packing 25mm

,

ISO9001 Metal Pall Ring Packing

,

metal pall rings 38mm



Metal Pall Ring Random Packing 25mm For Absorption Tower 38mm 50mm



Product Description of Metal Random Packing



Metal random packing gives one of the best choices for high performance random packing, with low pressure drop and high efficiency. This specially designed saddle-shape random packing provides a lower pressure drop at the same vapor and liquid loads. It can be effectively used in both high pressure and vacuum towers. Others of its advantages include large effective inter-facial area, high mechanical strength and low cost. Metal saddle rings are therefore used in many distillation and absorption columns all around the world. It is available in various sizes, which give different combinations of efficiency and pressure drop.

Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring is well known packing after rasing ring,an industry standard design media which used in many applications,widely used in all kinds of separation, absorb plants, constant decompress plants, compounding ammonia plant, decarbonization , desulfuration ,separation of ethylbenzene, separation of isooctane/ methylbenzene,



Product Name Stainless Steel Metal Pall Ring
Material metal, stainless steel, carbon steel, Aluminum alloy etc.
Surface Area 62 - 346 m2/m3
Bulk Density 145 - 345 kg/m3
Feature Corrosion and Heat Resistance
Size 16mm,25mm,38mm,50mm, 76mm,or customized
Certification ISO9001
Place of Origin Hebei Province,China
Brand Name Yuanhai


Specifications of Metal Random Packing


Model Pall Ring
Material Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.

Sizes
(mm)

Bulk density
(kg/m3)

Number
(per m3)

Surface area
(m2/m3)

Free volume
(%)

16×16×0.3 345 201000 346 95.5
25×25×0.3 214 51000 212 96.2
38×38×0.4 193 15000 145 96.7
50×50×0.5 182 6500 106 97.5
76×76×0.6 142 1830 69 97.4
89×89×0.7 145 1160 62 97.1


Advantages of Metal Random Packing


(1) High capacity. New tower design may reduce diameter, while renovate old towers

may increase capacity significantly.

(2) High separation efficiency. Since it has much larger specific surface area compared

to random packing.

(3) Low pressure drop, which leads to reduce energy consumption largely.

(4) Large flexibility, and scale effect is not obvious.

(5) Suitable for all tower diameters.

(6) Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic acid and Cl- .



Application of Metal Random Packing



Absorption, Aeration, Degassing, Desorption, Distillation, Stripping, Heat Recovery, Extraction, Various separation and absorption applications at atmospheric pressure and under vacuum, where a low pressure drop is critical,H2S, NH3 & SO2

Naike Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring is an industry standard design media deveoped from Metal Pall Ring and is used widely in varieties of applications.



ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm 0

ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm 1


ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm 2

ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm 3


ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm 4

ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm 5

ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm 6



ISO9001 Metal Pall Ring Packing 25mm For Absorption Tower 38mm 50mm 7

Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.
