55*200mm Triangle Bending Fence Brc Mesh Fence Corrosion Proof

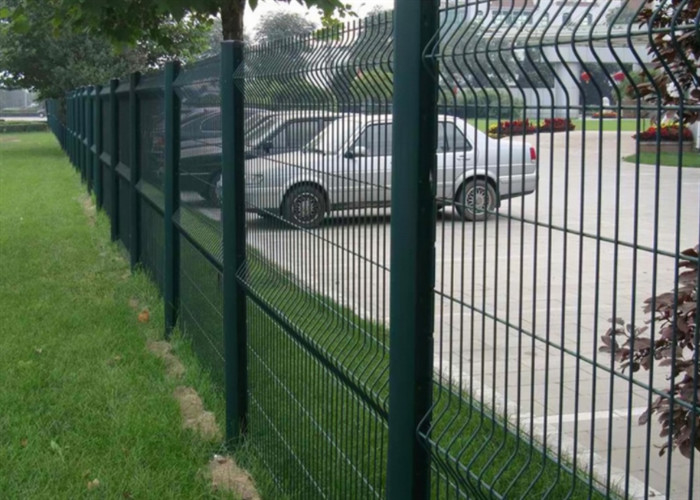

Large Image : 55*200mm Triangle Bending Fence Brc Mesh Fence Corrosion Proof

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-DF

Payment & Shipping Terms:

Minimum Order Quantity:	50 PCS
Price:	Negotiable
Packaging Details:	Pallet
Supply Ability:	5000PCS PER MONTH

Contact Now

Detailed Product Description

Material:	Low Carbon Steel	Wire Diameter:	3.5mm-5.0mm
Mesh Size:	50200mm 55200mm 50150mm 55100mm	Surface Treatment:	Galvanized+PVC Coated
Height:	1030mm/1230mm/1530mm/1830mm Or As Request	Length:	2000mm/2200mm/2500mm/3000mm
Advantage:	Anti-corrosion	Post Shape:	Round Posts, Square Posts, Peach Posts
Packing:	In Pallet, Plastic Film In Outside	Application:	Airports, Ports, Terminals Security
Product Name:	Triangle Fence Panel	Port Of ;oading:	Xingang Port
Highlight:	55200mm Triangle Bending Fence , 55200mm Brc Mesh Fence , Triangle Bending Fence corrosion proof

**Powder Coated Curved / Triangle Bending BRC Mesh Fencing 50*200mm**

Product Description of Triangle Bending Wire Mesh Fence Panel

The triangle bending fence mesh is also called the bending fence network. It has the characteristics of beautiful and durable grid structure, wide field of vision, diverse colors, high strength, good steel and beautiful appearance. It acts as both a fence and a beautification.

The triangle bending fence mesh adopts excellent grade Q 235 low carbon cold drawn steel wire, cold drawn low carbon steel wire and low carbon steel wire as raw materials. And carry out the corresponding anti-corrosion treatment: electro galvanized, hot-dip galvanizing, spray-spraying, dip-coating and stainless steel wire (usually using dip-coating treatment). Features of Triangle Bend Fence Net: Weaving and welding are bent. Commonly used peach-shaped column connection is also called peach-shaped column fence.

Panel Specification of Triangle Bending Wire Mesh Fence Panel

Panel height	Panel Length	Wire Diameter	Mesh Size	Folds No.
0.6/0.63m	2.5m or custom	Gal + Powder Coated 3.85mm/4.0mm 4.85mm/5.0mm Gal + PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm Hot-dipped Gal.	50200mm 55200mm 50150mm 55100mm	2
1.0/1.03m				2
1.2/1.23m				2
1.5/1.53m				3
1.7/1.73m				3
1.8/1.83m				3/4
1.9/1.93m				3
2.0/2.03m				4
2.4/2.43m				4

Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated
Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized.
Note: The fence can be customized according to your required if above specification is not satisfied with you.

Product Advantage of Triangle Bending Wire Mesh Fence Panel

Appropriate bending makes the unique aesthetic effect of this product, and the surface is treated with dip coating of various colors, such as yellow, green, red, and the color of the column and the mesh is different. It is pleasing to the eye, and at the same time, this kind of product is mostly equipped with a chassis column, and the installation only needs to lay the expansion bolts, which is very fast.

Application of Triangle Bending Wire Mesh Fence Panel

Triangle bending protection net has been widely used in the decorative protection of highways, highways, railways, airports, factories, factories, residential quarters, port terminals, municipal green spaces, garden flower beds and green spaces. The triangular bending fence mesh has high strength, good rigidity, beautiful appearance, wide field of vision, easy installation, and feels bright and easy.

Production Process of Triangle Bending Wire Mesh Fence Panel

Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds/Curves Bending → Electric Galvanizing/Hot-dipped Galvanizing → Parkerizing → PVC Coating /Spraying → Packing → Loading

PVC Coating Colors of Triangle Bending Wire Mesh Fence Panel

Packing of Triangle Bending Wire Mesh Fence Panel

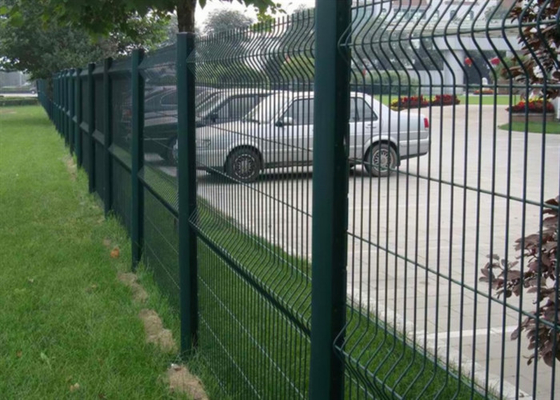

55*200mm Triangle Bending Fence Brc Mesh Fence Corrosion Proof 3

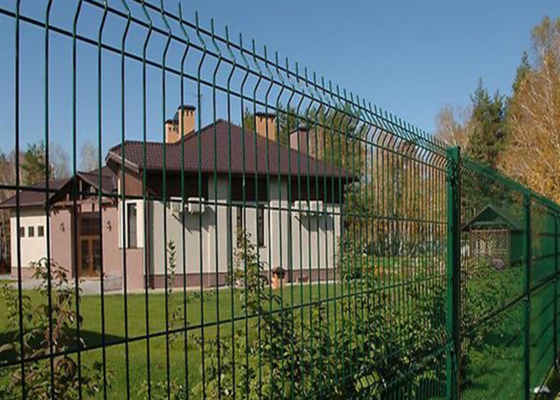

55*200mm Triangle Bending Fence Brc Mesh Fence Corrosion Proof 4
