Galvanized V Shaped 4.5mm Triangle Fence Panel 3d Welded Wire Fence 1030mm

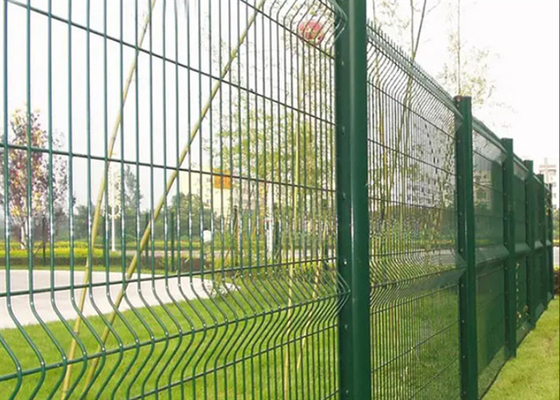

Large Image : Galvanized V Shaped 4.5mm Triangle Fence Panel 3d Welded Wire Fence 1030mm

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-DF

Payment & Shipping Terms:

Minimum Order Quantity:	50 PCS
Price:	US$3~20
Packaging Details:	Pallet
Supply Ability:	5000PCS PER MONTH

Contact Now

Detailed Product Description

Material:	Low Carbon Steel	Wire Diameter:	3.5mm,4.0mm,4.5mm,5.0mm
Mesh Size:	50200mm 55200mm 50150mm 55100mm	Surface Treatment:	Galvanized/PVC Coating
Height:	1030mm/1230mm/1530mm/1830mm Or As Request	Length:	2000mm/2200mm/2500mm/3000mm
Advantage:	Anti-corrosion	Post Shape:	Round Posts, Square Posts, Peach Posts
Packing:	In Pallet, Plastic Film In Outside	Application:	Privacy Garden Fence Protection
Product Name:	Triangle Fence/ V Bending Mesh	Post Type:	Square Post; Peach Post
Highlight:	4.5mm Triangle Fence Panel , Triangle Fence Panel 1030mm , 3d Welded Wire Fence 1030mm

Galvanized V-Shaped Triangle Fence Panel Welded Fence For Residential

Product Description of Triangle Fence Panel

It is an economical version of the panel system, constructed from a welded mesh panel with longitudinal profiles that forms a rigid fence. The fence panel is welded with high quality low carbon steel wire, surface treated by electrostatic polyester powder spray coating over galvanized materials, then connected with post by suitable clips. Due to its simple structure, easy installation, nice appearance, more and more customers regard welded mesh fence as the preferred common protective fence.

Panel Specification of Triangle Fence Panel

Panel height	Panel Length	Wire Diameter	Mesh Size	Folds No.
0.6/0.63m	2.5m or custom	Gal + Powder Coated 3.85mm/4.0mm 4.85mm/5.0mm Gal + PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm Hot-dipped Gal.	50200mm 55200mm 50150mm 55100mm	2
1.0/1.03m				2
1.2/1.23m				2
1.5/1.53m				3
1.7/1.73m				3
1.8/1.83m				3/4
1.9/1.93m				3
2.0/2.03m				4
2.4/2.43m				4

Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated
Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized.
Note: The fence can be customized according to your required if above specification is not satisfied with you.

Product Advantage of Triangle Fence Panel

Appropriate bending makes the unique aesthetic effect of this product, and the surface is treated with dip coating of various colors, such as yellow, green, red, and the color of the column and the mesh is different. It is pleasing to the eye, and at the same time, this kind of product is mostly equipped with a chassis column, and the installation only needs to lay the expansion bolts, which is very fast.

Application of Triangle Fence Panel
Private properties and recreational sites
Sports facilities, pitches, tennis courts, playgrounds
Warehouses, logistics bases - military facilities and sites
Housing estates and parking lots
Industrial and commercial buildings
Public places

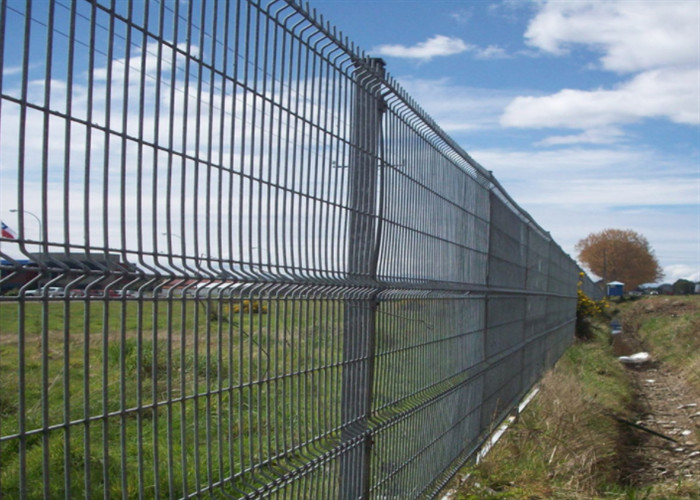

Product Show of 3D Bending Farm Fence
