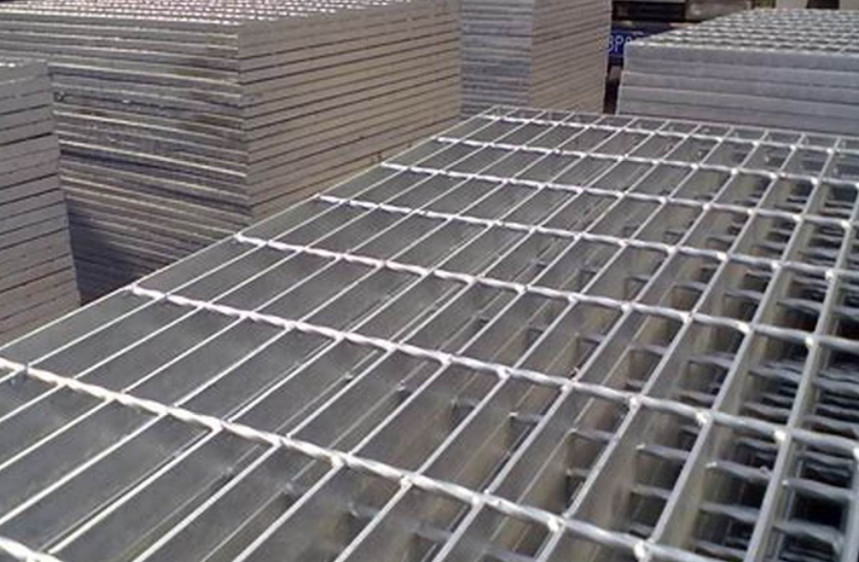

Serrated Galvanized Rebar Grating Pressed 32*5mm Stair Tread Grating

Serrated Galvanized Rebar Grating Pressed 32*5mm  Stair Tread Grating
Serrated Galvanized Rebar Grating Pressed 32*5mm  Stair Tread Grating Serrated Galvanized Rebar Grating Pressed 32*5mm  Stair Tread Grating

Large Image :  Serrated Galvanized Rebar Grating Pressed 32*5mm Stair Tread Grating

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G1
Payment & Shipping Terms:
Minimum Order Quantity: 1000Square Meters
Price: Negotiable
Packaging Details: 1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Supply Ability: 100000Square Meters Per Month
Detailed Product Description
Material: Low Carbon Steel, Stainless Steel Thickness: 1.5-8mm
Shape: Square / Rectangular Surface Treatment: Galvanized, Painted, No Finish
Usage: Platform , Driveway, Industry Platform ,building Product Name: Galvanized 32*5mm Steel Walkway Grating
Type: Flat Steel Bar ,serrated Steel Bar Certificate: ISO9001:2015
Sizes: Customized Package: By Steel Pallet
Bearing Bar Depth: 3/4" To 7" Grate Style: Plain / Smooth, Serrated / Teeth, I Bar, Serrated I Bar
High Light:

Serrated Rebar Grating

,

5mm Stair Tread Grating

,

Rebar Grating 32mm

Serrated Galvanized Rebar Steel Grate Pressed 32*5mm For Stair Treads / Walkway





Description of Steel Grating Walkway



Steel Grating made by welding with flat steel and cross/round bars with certain distances.

Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.

1)Raw material :Low carbon steel, stainless steel, aluminum alloy

2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.



Materials: mild steel or stainless steel.

Surface treatment: untreated, painting or hot dip galvanizing.

Bearing bar specification:20*3 to 100*6

Bearing bar pitch:12.5,15,25,30,40,60mm etc. also be according to clients requirement and 30,40,60mm are recommended

Cross bar picth:38,50,76,100mm,also be according to clients requiremen and 50,100mm are recommended.

The Maximun length of black panel is 7350mm.



Specifications of Steel Grating Walkway



The steel bar size and specification ,please check the following table:



Specification of galvanized steel grating

steel walkway and floor Steel grid plate and Steel frame lattice in metal building materials

Type Welded steel grating, pressure locked, socket welding
Material Low carbon steel, stainless steel, aluminum
Bearing bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.
Bearing bar pitch(center to center) 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.or accord to the client’s request
Cross bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement.
Flat bar type Plain, Serrated (tooth-like),


Advantage of Steel Grating Walkway



-No corrosion traps around joints
-High strength to weight ratio
-Allows shaping without loss of strength
-Available plain or serrated
-Allows passage of heat, light, water and ice.



Surface Treatment of Steel Grating Walkway


Steel grating panel can choose galvanized,
stainless steel grating can choose polishing etc.

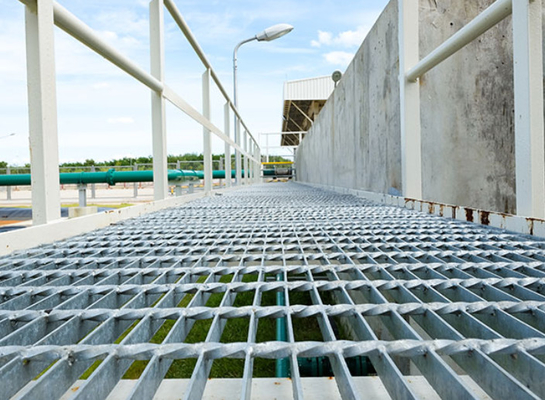

Application of Steel Grating Walkway



steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed :

1 Power plant

2 Chemical plant

3 Oil Refinery

4 Steel plant

5 6 Paper-making factory

7 Cement plant

8 Civil engineering

9 Wastewater treatment

10 Pharmacy industry

11 Food processing
