Stainless Steel Expanded Wire Mesh 3.0mm Thick Diamond Hole

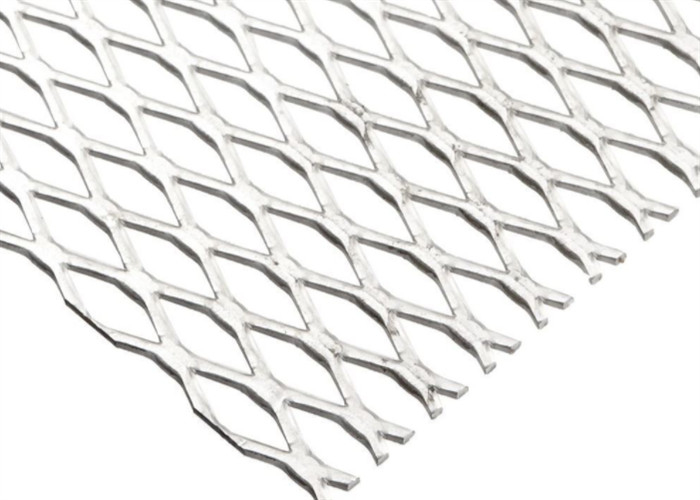

Large Image : Stainless Steel Expanded Wire Mesh 3.0mm Thick Diamond Hole

Product Details:

Place of Origin:	Hebei,China
Brand Name:	YuanHai
Certification:	ISO9001:2008
Model Number:	YH-06

Payment & Shipping Terms:

Minimum Order Quantity:	50 Square Meters
Price:	US$4~20
Packaging Details:	palletized or loose load in the container
Delivery Time:	3-8 days
Payment Terms:	T/T
Supply Ability:	100000 Square Meters per Week

Contact Now

Detailed Product Description

Material:	Stainless Steel Plate , Aluminium Plate,common Carbon Plate	Hole Shape:	Diamond / Hexagonal
LWD:	25mm-100mm	SWD:	10mm-50mm
Weight:	0.7kg-30kg/㎡	Thickness:	0.3mm-8mm
Process:	Cutting, Punching	Surface Treatment:	Hot Dipped Galvanized, Powder Coated
Product Name:	Expanded Wire Mesh	Usage:	Construction,building Facade,guard, Filter Net
Technique:	Perforated	Certification:	ISO2015:9001
Port Of Loading:	Tianjin Xingang Port	Place Of Origin:	Hebei,Province
Highlight:	Aluminium Diamond Hole Screen , Diamond Hole Screen 4ft X 8ft , 3.0mm Diamond Hole Screen

Aluminium 4ft X 8ft Diamond Hole Screen Low Carbon Steel 3.0mm Thick

Product Description

Premium expanded metal sheet available in low carbon steel, cold rolled steel, aluminum, and stainless steel variants.

Material Options

Low carbon steel sheet
Cold rolled sheet
Aluminum sheet
Stainless steel sheet

Processing & Classification

Manufactured using deep stamping and drawing process:

Electric/Hot dipped galvanized expanded mesh
Copper plated expanded mesh
PVC coated expanded mesh
Aluminum expanded mesh

Specifications

L.W.M.	S.W.M.	Strand Width	Strand Gauge	Approx. Kg/M2
6.05	3.38	0.8	0.5	2.1
10.24	5.84	0.8	0.5	1.2
10.24	5.84	1.2	0.9	3.2
14.27	5.84	1.2	0.9	3.2
19.05	7.42	1.2	0.9	3.4
5.8	3.5	0.8	0.6	2.1
19	7.4	1.7	1.0	3.4
30.5	11.7	2.4	1.6	4.9
30.5	11.7	2.4	1.2	3.8
38	16.5	2.2	1.6	3.4
50.8	22.5	2.5	2.5	4.4
50.8	22.5	3	1.6	3.4
50.8	22.5	3.9	3	8.1
50.8	22.5	3.1	3	6.5
76.2	33.9	3.5	3	4.9
85.7	40.6	3.2	3	3.7
101.6	50.8	5	3	4.7
101.6	50.8	3.4	3	3.1
114.3	39.3	4.6	3	5.4
200	75	6.3	3	3.6

Key Features

Continuity - formed from a single piece of metal
Environmentally friendly - minimal material waste
High strength-to-weight ratio
Anti-slip surface
Excellent rigidity and reinforcement properties
Highly efficient conductor
Superior corrosion resistance

Surface Treatment Options

PVC coated

Powder coated

Anodized

Paint

Fluorocarbon spraying

Polishing

Applications

Exterior construction

Shelving systems

Lampshades & grilles

Air & liquid filters

Ventilation systems

Outdoor furniture

Speaker grilles

Ceiling/floor/door panels

Security barriers

Concrete reinforcement

Walkway & stair treads

Packaging Options

On pallet with waterproof cloth (max width 1500mm)
In wooden case with waterproof paper
In carton box
In roll with woven bag (max width 3000mm)
In bulk or bundle

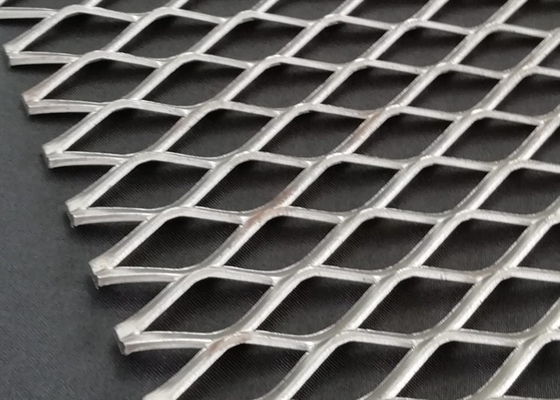

Product Images
