Product Details:
Payment & Shipping Terms:
|
| Product Name: | Steel Palisade Fencing | Keyword: | Palisade Fence |
|---|---|---|---|
| Material: | Pre Hot-dipped Galvanized Tube | Frame Finishing: | Powder Coated |
| Feature: | Easily Assembled, Eco Friendly, Renewable Sources, Rodent Proof, Waterproof | Service: | 10 Years Of Export Experience, More |
| Suggested Pale Thickness: | 2-6mm | Height Above Ground: | 1-4.2m |
| Highlight: | W Section Security Palisade Fencing,2.5*2.75m Security Palisade Fencing,Steel Security galvanised palisade fencing |
||

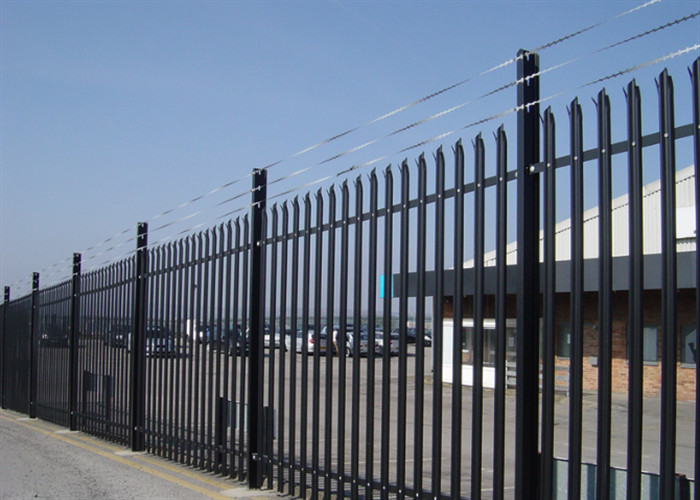

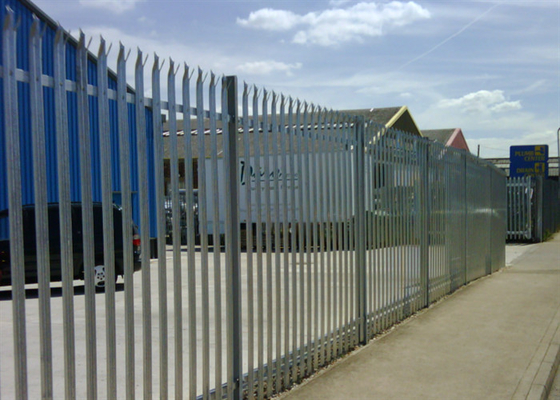

Galvanised Steel Security Fencing W Section 2.5*2.75m
Steel Palisade Fence Specification
| 1. Type Standard Configuration | ||||
| Panel Height | Pales | O/C Spacing | Rails | |
| 8 | 13 ga. | 5-15/16" | 2" TS x 14 ga. | |
| 10 | 13 ga. | 5-15/16" | 2" TS x 14 ga. | |
| 12 | 13 ga. | 5-15/16" | 2" TS x 14 ga. | |
| 2. Type Standard Configuration | ||||
|
Post
|
Optionally available with base plates for bolt-down or cranked over walls. Also available with bracket extensions for barbed wire or razor wire. Size: 100 x 55mm/100 x 44mm |
|||
|
Rails
|
Steel angle rails punched for pale attachment. Connected with 12mm square cup bolts and anti-vandal permacone (snap-off) nuts. Size: 40mm x 40mm/ 45mm x 45mm/ 50mm x 50mm |
|||
|
Pale tops
|
Split-tripple point or single point for high security. Rounded or rounded and notched for ety.
|
|||
|
Fittings
|
Rails and pales are fitted using 'rivets & collars' or rounded bolts with permacone nuts (snap-off / anti-vandal). | |||
|
Link Plates
|
Link plates, AKA 'Fish Plates' fit through the holes is the steel fencing posts and join the rails together.
|
|||
Steel palisade fencing Finishes
Available as 'Hot Dipped Galvanised' or 'Galvanised & Polyester Powder Coated to any colour'.
Application of Steel Palisade Fencing
Manufactured from cold rolled steel, which is where the steel goes through several rolls at room temperature. The steel can then be manipulated gradually until the shape is formed. This creates a lighter steel with superior strength.
Supplied with a top and bottom rail to connect the pales and keep them secure. The top rail is fitted with little spikes to
prevent people from gripping the top rail and climbing over. All of our bolts are anti-tamper and are designed to shear off when reach a certain torque. This makes it incredibly difficult for people to unscrew the bolts to get through the fencing.
