Galvanized and Powder Coated Steel Palisade Fencing W/D Type for High Security

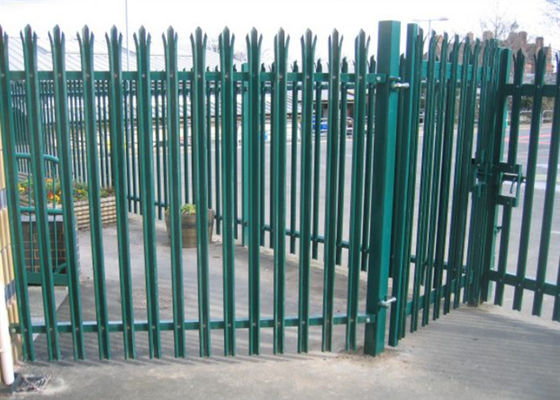

Large Image : Galvanized and Powder Coated Steel Palisade Fencing W/D Type for High Security

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-PF

Payment & Shipping Terms:

Minimum Order Quantity:	10Sets
Price:	$5.5-13.6/㎡
Packaging Details:	Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Supply Ability:	5000Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Steel Palisade Fencing	Key Word:	Palisade Fencing
Material:	Low Carbon Steel	Brand Name:	Yuanhai
Fence Panel Height:	1-6m	Fence Panel Width:	1-3m
Pale Types:	W Pale / D Pale	W Pale Width:	65-75mm
D Pale Width:	65-70mm	Angle Rail:	40mmx40mm 50mmx50mm 63mmx63mm
Angle Rail Thickness:	3mm-6mm	Surface Treatment:	Galvanized/PVC Coated
Feature:	Easily Assembled, Sustainable, Rodent Proof	Certification:	ISO9001:2015
Highlight:	Galvanized Steel Palisade Fencing , Powder Coated Steel Palisade Fencing , Europe Steel Palisade Fencing

Europe Powder Coated / Galvanized Steel Palisade Fencing W / D Type

Product Overview

Steel palisade fencing has been used for centuries as a reliable defense mechanism. Originally constructed from wood, modern versions utilize durable steel to create formidable security barriers. The closely spaced pales with sharp points make climbing extremely difficult, providing exceptional security for various applications.

Technical Specifications

Material: Low carbon steel, mild steel, hot or cold rolled steel
Surface Treatment: Hot-dipped galvanized (505 g/m²), electric galvanized
Head Type: One pointed, triple pointed, rounded, rounded & notched, square
Pales Section: D section pales, W section pales, angle section pales
Height: 1.2m to 3.6m (customizable)
Pale Thickness: W section: 2mm-3mm, D section: 2.5mm-4.0mm
Package: Plastic film, wooden pallet

Component	Specifications
Fence Panel Height	1m-6m
Fence Panel Width	1m-3m
Pale Height	0.5m-6m
Pale Width	W pale: 65-75mm, D pale: 65-70mm
Pale Thickness	1.5-3.0mm
Angle Rail	40mm×40mm, 50mm×50mm, 63mm×63mm
Angle Rail Thickness	3mm-6mm
RSJ Post	100mm×55mm, 100mm×68mm, 150mm×75mm
Square Post	50mm×50mm, 60mm×60mm, 75mm×75mm, 80mm×80mm
Square Post Thickness	1.5mm-4.0mm
Straight Fishplates/Post Clamps	30mm×150mm×7mm, 40mm×180mm×7mm
Bolts and Nuts	M8×No.34 for pale fixing, M12×No.4 for rail fixing

Packaging Options

LCL: Packed with plastic film then on pallets
FCL: Nude packing
Other special packaging according to customer requirements

Key Features

Excellent strength and high rigidity with superior damage and intruder resistance
High rust and corrosion resistance for extended service life
Low maintenance requirements with smooth surface finish
Easy installation and replacement of damaged sections
Attractive design that enhances surroundings without obstructing views
Competitive pricing for cost-effective security solutions

Applications

Steel palisade fencing is widely used in industrial and security applications including garden fencing, farm fencing, highway fencing, and railway fencing. The galvanized surface treatment ensures durability in various environmental conditions.

Head Types of W & D Section Pales
