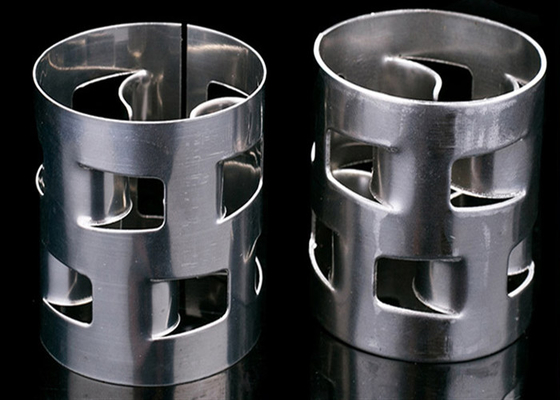

SS304 Metal Tower Packing Metal Pall Ring for Vacuum Distillation 50*50*0.5mm
Product Description:
The metal pall ring packing, which was developed in the 1940s by the German company BASF, is a type of tower packing. It is made of sheet metal with a total area of about 35% of the total area of the ring wall.
Pall ring packing differs from the raschig ring packing, which has similar specifications. This is because the pall ring packing has many holes in the ring wall. These holes allow for the gas and liquid in the tower to be free from the window. As a result, the gas and liquid distribution in the packing layer is greatly improved compared to the raschig ring packing.
Due to its excellent separation performance, the pall ring filler is still one of the main ring packing materials used today.
- Product Name: Metal Tower Packing
- Port: Xingang
- Surface Area: High Surface Area
- Production Period: 40HQ/15 Days
- Port of Loading: Xingang Port
Features:
Low pressure drop, which leads to reduce energy consumption largely;
Large flexibility, and scale effect is not obvious;
High capacity, small specific gravity, high mass transfer efficiency and so on;
Customized for each type of packing and requirement;
Short delivery time.
Technical Parameters:
| Product Name |
Metal Tower Packing |
| Port |
Xingang |
| Key Words |
Random Packing, Bulk Packing, Pall Ring Packing, Cascade Miniring Packing |
| Feature |
High Capacity, Low Pressure Drop |
| Corrosion Resistance |
Excellent Corrosion Resistance |

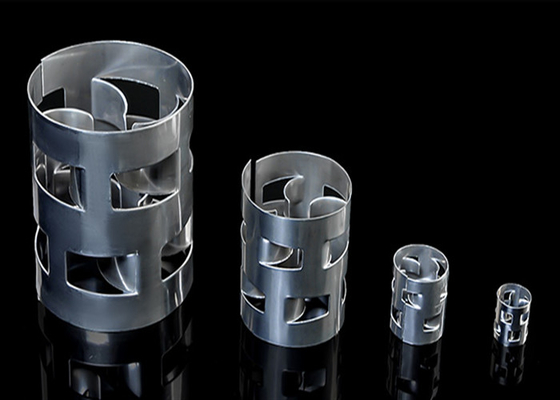

| Diameter |
25~90mm |
| Port of Loading |
Xingang Port |
| Certification |
ISO9001:2015 |
| Production Period |
40HQ/15 Days |
| Surface Area |
High Surface Area |
| Model |
Size
D*H*δ/mm
|
No. Per Volume
n/m3
|
Specific Area
m2/m3
|
Void Volume
%
|
Drying Packing Factor
m-1
|
| Dg16 |
16X16X0.4 |
185000 |
239 |
0.928 |
299 |
| Dg25 |
25X25X0.6 |
51900 |
219 |
0.934 |
269 |
| Dg38 |
38X38X0.8 |
13800 |
129 |
0.945 |
153 |
| Dg50 |
50X50X1.0 |
6500 |
112.3 |
0.949 |
131 |
| Dg76 |
76X76X1.2 |
1830 |
71 |
0.96 |
80 |
Applications:
In vacuum distillation, metal pall rings are commonly used for heat transfer due to their high efficiency and durability. These rings provide a large surface area for contact between the heated material and the cooling medium, allowing for efficient transfer of heat.
To aid in gas absorption, wet scrubbers are utilized in many industrial processes. These devices use water or another liquid medium to scrub the gas and remove pollutants. The scrubbed gases are then released into the atmosphere through a chimney or further treated.
Cooling towers are another important technology for efficient heat transfer. As hot water is circulated through the tower, it is exposed to cool air, causing the water to release heat and cool down. The cooled water is then recirculated, and the process continues.
Mist eliminators are useful for removing liquid particles from gas streams, particularly in processes where the gas is being recycled. These devices use various mechanisms – such as filters or coalescing plates – to separate the liquid particles from the gas.
Gas absorption columns and gas strippers are used for gas separation and purification. In absorption columns, gases are absorbed by a liquid medium, while strippers separate different components of a gas mixture. Both technologies are important in industries such as petrochemicals and natural gas processing.
Finally, air washers are useful for removing pollutants and contaminants from recirculated air. Through the use of filters and other mechanisms, these devices help to improve indoor air quality and reduce the risk of respiratory illness.
FAQ:
Q: What is the brand name of the metal random packing?
A: The brand name of the metal random packing is Yuanhai.
Q: What is the model number of the metal random packing?
A: The model number of the metal random packing is YH-04.
Q: Where is the metal random packing made?
A: The metal random packing is made in Hebei Province, China.
Q: What is the minimum order quantity for the metal random packing?
A: The minimum order quantity for the metal random packing is 1 m³.
Q: What is the payment term for the metal random packing?
A: The payment term for the metal random packing is T/T.
Q: What is the certification of the metal random packing?
A: The metal random packing is certified with ISO9001:2015.
Q: What is the price of the metal random packing?
A: The price of the metal random packing is negotiable.
Q: What are the packaging details of the metal random packing?
A: The metal random packing is packaged by wooden box.
Q: What is the delivery time for the metal random packing?
A: The delivery time for the metal random packing is 7 days.
Q: What is the supply ability of the metal random packing?
A: The supply ability of the metal random packing is 800 cubic meter/cubic meters per month.
