Product Details:
Payment & Shipping Terms:
|
| Product Name: | Metal Tower Packing | Key Words: | Random Packing |
|---|---|---|---|
| Diameter: | 25~90mm | Corrosion Resistance: | Excellent Corrosion Resistance |
| Void Fraction: | High Void Fraction | Port Of Loading: | Xingang Port |
| Materials: | Stainless Steel | Certification: | ISO9001:2015 |
| Brand Name: | Yuanhai | Sample: | For Free |
| Highlight: | Pall Ring Metal Tower Packing,25*25*0.3mm Pall Ring Metal Tower Packing,Gas Scrubbing Metal Tower Packing |
||

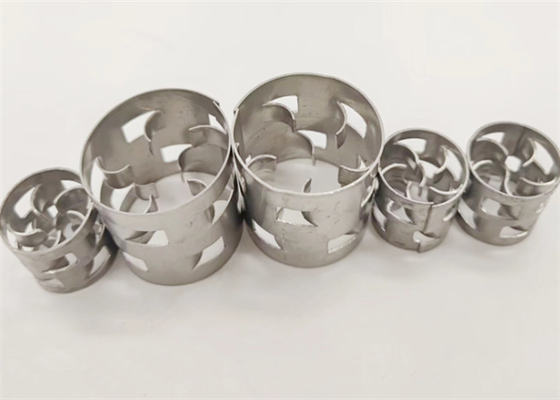

Pall Ring Metal Tower Packing 25*25*0.3mm Diameter for Gas Scrubbing
1.Easily wettable
2.High resistance to fouling 3.High temperature endurable 4.High temperature applications 5.HIGH MECHANICAL STRENGTH
6.High capacity with low pressure drop
7.Mechanically robust, lesser probability of breakage
8.Good liquid/gas distribution and high mass transfer efficiency.
Technical Parameters:
| Product Name | Metal Tower Packing |
|---|---|
| Production Period | 40HQ/15 Days |
| Void Fraction | High Void Fraction |
| Corrosion Resistance | Excellent Corrosion Resistance |
| Key Words | Random Packing |
| Materials | CS, SS, Copper, Titanium |
| Port | Xingang |
| Diameter | 25~90mm |
| Surface Area | High Surface Area |
| Feature | High Capacity, Low Pressure Drop |
| Model |
Size D*H*δ/mm |
No. Per Volume n/m3 |
Specific Area m2/m3 |
Void Volume % |
Drying Packing Factor m-1 |
| Dg16 | 16X16X0.4 | 185000 | 239 | 0.928 | 299 |
| Dg25 | 25X25X0.6 | 51900 | 219 | 0.934 | 269 |
| Dg38 | 38X38X0.8 | 13800 | 129 | 0.945 | 153 |
| Dg50 | 50X50X1.0 | 6500 | 112.3 | 0.949 | 131 |
| Dg76 | 76X76X1.2 | 1830 | 71 | 0.96 | 80 |
Metal Pall Ring is widely used in the chemical industry for Vacuum Distillation. It is a type of industrial packing that is designed to improve the efficiency of the distillation process. Pall Rings are made of metal and have a unique shape that provides a large surface area for interaction and heat transfer, making them ideal for vacuum distillation.
The Metal Pall Ring is also used for heat transfer through multiple applications such as:
When used in wet scrubbers, Metal Pall Rings are effective in removing harmful gases from flue gases by creating a surface for absorption and transfer. In cooling towers, Metal Pall Rings are used to increase the cooling capacity, and in gas absorption columns, they are used to improve the efficiency of absorption by increasing the interaction between the gas and the liquid.
Mist eliminators, also known as demisters, utilize Metal Pall Rings to remove liquid particles from gas streams. They are effective in removing small water droplets and oil from gas pipelines in refineries, petrochemical plants, and other industrial operations.
Overall, the Metal Pall Ring is a versatile and efficient industrial packing that is widely used in various applications in the chemical industry.
Q: What is the brand name of the metal random packing?
A: The brand name is Yuanhai.
Q: What is the model number of the metal random packing?
A: The model number is YH-04.
Q: Where is the metal random packing manufactured?
A: The metal random packing is manufactured in Hebei Province, China.
Q: What certification does the metal random packing have?
A: The metal random packing has ISO9001:2015 certification.
Q: What is the minimum order quantity for the metal random packing?
A: The minimum order quantity for the metal random packing is 1 m³.
Q: What is the price of the metal random packing?
A: The price of the metal random packing is negotiable.
Q: How is the metal random packing packaged?
A: The metal random packing is packaged in wooden boxes.
Q: What is the delivery time for the metal random packing?
A: The delivery time for the metal random packing is 7 days.
Q: What are the payment terms for the metal random packing?
A: The payment terms for the metal random packing are T/T.
Q: What is the supply ability of the metal random packing?
A: The supply ability of the metal random packing is 800 Cubic Meter/Cubic Meters per Month.
