Product Description:
Metal Tower Packing Pall ring is a new and improved type of random packing that has surpassed Rasiichig ring in terms of liquid distribution. The ring boasts of open windows on its sidewall, which has notably improved the productivity, efficiency, and operating flexibility of the packing layer. Hualai Pall ring has been widely applied across different industries and is a major annular random packing that has been widely adopted.
The ring packing is particularly suitable for rectification towers under vacuum that are used to treat polymerizable, cokable, thermosensitive, or decomposable systems. It has found extensive use in packing towers in the chemical fertilizer industry, petrochemical industry, environmental protection, and other related industries.
Compared to Rasiichig ring, the liquid distribution of the pall ring is greatly improved due to its open windows, which makes it more efficient in terms of productivity, operating flexibility, and resistance. These qualities make it an ideal choice for various industries, and it has been widely adopted as a major annular random packing.
Moreover, Hualai Pall ring has revolutionized the chemical industry, especially in the treatment of polymerizable, cokable, thermosensitive, or decomposable systems. The packing ring has found numerous applications in various fields, including environmental protection, chemical fertilizer, and petrochemicals, among others.
The features of Metal Tower Packing Pall Ring
- Improved liquid distribution of the packing layer
- Open windows on the ring sidewall
- Productive and low resistant
- Flexible operating processes
- High efficiency
In conclusion, Metal Tower Packing Pall ring is a new and improved type of random packing that boasts of improved liquid distribution, efficiency, productivity, operating flexibility, and resistance. Its numerous applications in different industries make it an ideal choice for rectification towers under vacuum systems that treat thermosensitive, decomposable, polymerizable, or cokable systems.
Features:
The product has a high resistance to fouling, making it a preferred choice for applications that involve fluid flow. It can be used with a wide range of materials, providing customers with a variety of options based on their particular requirements.
This particular product is also well-suited for high temperature applications, owing to its ability to withstand elevated temperatures and maintain its structural integrity. It is mechanically robust, making it highly resistant to breakage during use.
In addition to this, the product offers good liquid/gas distribution, ensuring that it effectively distributes fluid or gas flow without any blockages or interruptions. It also boasts a high mass transfer efficiency, making it a reliable choice for industrial applications.
Technical Parameters:
|
Model
|
Pall Ring
|
|
Material
|
Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.
|
|
Preferred Sizes
|
(mm)
|

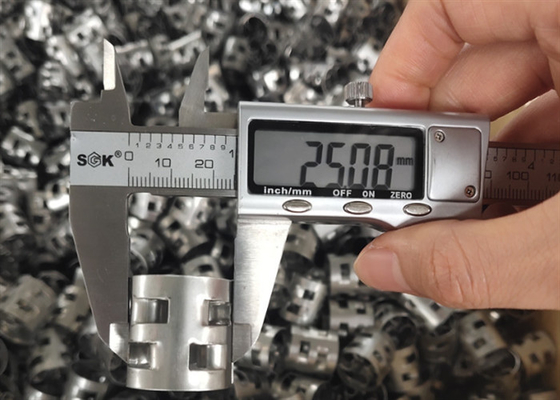

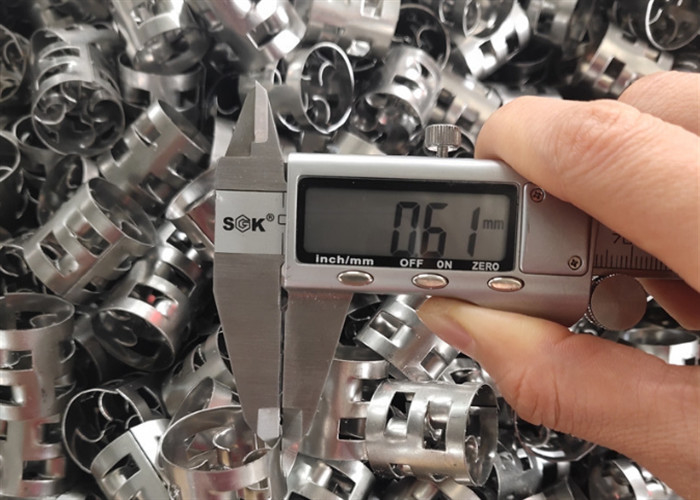

16*16*0.3
|
25*25*0.3
|
38*38*0.4
|
50*50*0.5
|
76*76*0.6
|
89*89*0.7
|
|
Bulk density
|
(kg/m3)
|
345
|
214
|
193
|
182
|
142
|
145
|
|
Number
|
(per m3)
|
201000
|
51000
|
15000
|
6500
|
1830
|
1160
|
|
Surface area
|
(m2/m3)
|
346
|
212
|
145
|
106
|
69
|
62
|
|
Free volume
|
(%)
|
95.5
|
96.2
|
96.7
|
97.5
|
97.4
|
97.1
|
|
Typical Application
|
Absorption, scrubbing and stripping services
|
| Brand Name |
Yuanhai |
| Model Number |
YH-006 |
| Usage |
Chemical |
| Shape |
Round, Ring |
| Port |
Tianjin Xingang Port |
| Application Field |
Industrial |
| Sample |
For Free |
| Application |
Absorption, Scrubbing, And Stripping Services |
| Keyword |
Tower Packing, Metal Tower Packing, Metal Random Packing, SS Pall Ring 25*25*0.3mm |
| Pressure Resistance |
High |
Applications:
Our product can be utilized in a variety of industries for specific purposes such as absorption, scrubbing, and stripping services. For instance, it is highly effective in CO2 and H2S selective absorption as well as in air pollution control scrubbers.
In addition, our product is ideal for heat transfer in various settings.
Liquid-liquid extraction is another area where our product can deliver excellent results.
Finally, our product is ideal for use in light ends fractionators, making it an incredibly versatile choice for a range of applications.
Note: In order to properly utilize the html code for a paragraph, I have used the <p> tag to denote the beginning and end of each paragraph. Additionally, I have italicized the word "Note" in the final paragraph using the <em> tag for emphasis.
Packing and Shipping:
Product Packaging:
- Size: 1 cubic foot
- Material: Metal
- Quantity: 1 pack
- Packaging: Strong cardboard box
Shipping:
- Shipping method: Ground
- Delivery time: 3-5 business days
- Shipping cost: Calculated at checkout
FAQ:
Q1: What is the brand name of the metal tower packing product?
A1: The brand name of the metal tower packing product is Yuanhai.
Q2: What is the model number of the metal tower packing product?
A2: The model number of the metal tower packing product is YH-009.
Q3: Where is this metal tower packing product made?
A3: This metal tower packing product is made in Hebei Province, China.
Q4: What is the minimum order quantity for this metal tower packing product?
A4: The minimum order quantity for this metal tower packing product is 2 m³.
Q5: What are the payment terms for this metal tower packing product?
A5: The payment terms for this metal tower packing product are T/T.
Q6: What is the certification of this metal tower packing product?
A6: The certification of this metal tower packing product is ISO9001:2015.
Q7: What is the packaging details of this metal tower packing product?
A7: The packaging details of this metal tower packing product is by wooden box.
Q8: What is the delivery time for this metal tower packing product?
A8: The delivery time for this metal tower packing product is 7 days.
Q9: What is the supply ability of this metal tower packing product?
A9: The supply ability of this metal tower packing product is 800 cubic meter/cubic meters per month.
Q10: How can I negotiate the price for this metal tower packing product?
A10: You can contact us directly to negotiate the price for this metal tower packing product.
