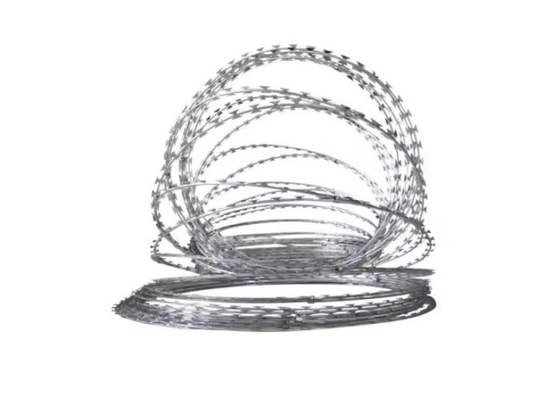

Product Description of Razor Barbed Wire
1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire / ElectroGalvanized sheet Hot Dipped Galvanized Wire
2. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
Razor Barbed sheet thickness: 0.45±0.05mm
3. Razor Loop Diameter: 600mm
Other Coil diameter for u choose: 300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes
4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)
The blade barbed wire, also known as the blade barbed wire, is a new type of protective net. The blade barbed wire has excellent characteristics such as beautiful appearance, economical and practical, good anti-blocking effect and convenient construction. At present, the blade barbed wire has been widely used in industrial and mining enterprises, garden apartments, border guard posts, military fields, prisons, detention centers, and governments in many countries. Buildings and ety facilities in other countries.
| Reference Number |
Thickness |
Wire Dia |
Barb
Length |
Barb
Width |
Barb
spacing |
| BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
25±1 |
| BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
25±1 |
| BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
35±1 |
| BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
36±1 |
| BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
46±1 |
| BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
46±1 |
| CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
101±1 |
| Outside Diameter |
No.of Loops
|
Standard Length per Coil |
Type |
Notes |
| 450 mm |
33
|
8m
|
CBT-65 |
Single coil |
| 500 mm |
41 |
10m |
CBT-65 |
Single coil |
| 700 mm |
41 |
10m |
CBT-65 |
Single coil |
|
960 mm
|
53 |
13m |
CBT-65 |
Single coil |
| 500 mm |
102 |
16m |
BTO-10.15.22 |
Cross type |
| 600 mm |
86 |
14m |
BTO-10.15.22 |
Cross type |
| 700 mm |
72 |
12m |
BTO-10.15.22 |
Cross type |
| 800 mm |
64 |
10m |
BTO-10.15.22 |
Cross type |
| 960 mm |
52 |
9m |
BTO-10.15.22 |
Cross type
|
Advantages of Razor Barbed Wire
1. Razor barbed is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
2. Visual and psychological deterrent.
3. Resistance to corrosion.
4. Low price and easy to install.
5. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, its special designs making climbing and touching extremely difficult.
Packing and Shipping of Razor Barbed Wire
1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.
2. Be bundled razor wire put on pallet.
3. Bulk razor wire put into cartons.
4. Packaged razor wire barrier into wooden case.
5. Bulk waterproof paper inner with woven bag outside razor rolls loaded in 40'HQ/27tons
Application of Razor Barbed Wire
Razor Barbed Wire is widely used in military affairs, prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.Also used for division of railway, highway, agricultural fencing, etc.

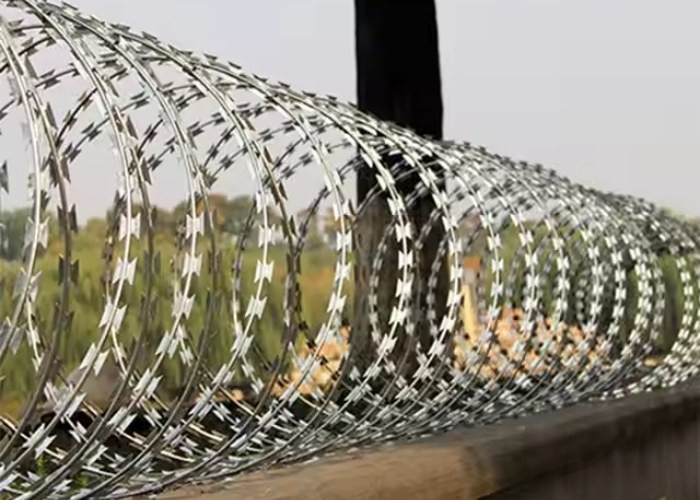

Razor wire also can be used in conjunction with an existing wall or fence, or even installed as a barrier on its own, to create an effective security perimeter.
