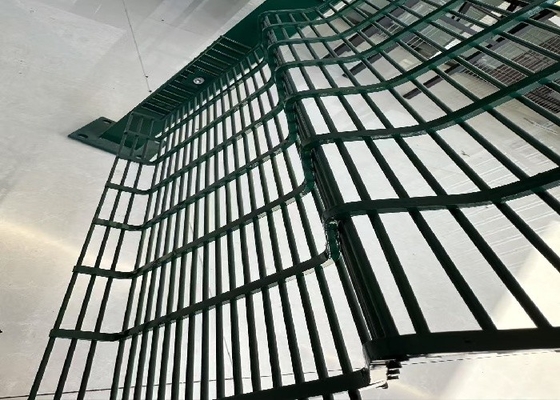

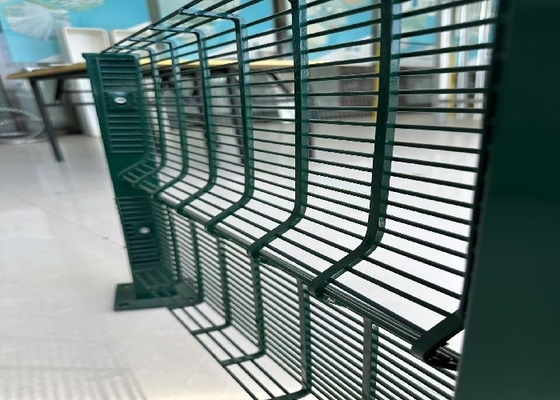

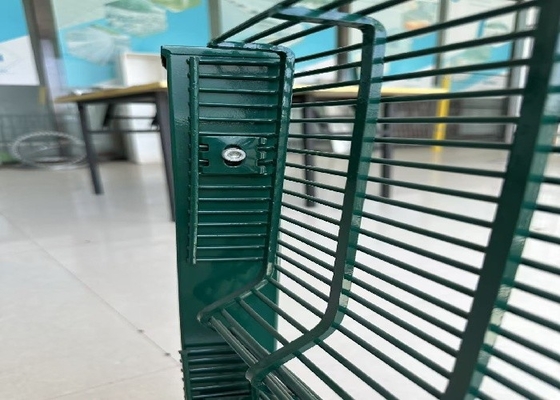

Hot Dip Galvanized 358 Security Fence Anti Climb Anti Cut

Large Image : Hot Dip Galvanized 358 Security Fence Anti Climb Anti Cut

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	YUANHAI
Certification:	ISO9001:2015
Model Number:	YH-ACF

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	US$20~80
Packaging Details:	1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	500PCS PER MONTH

Contact Now

Detailed Product Description

Hole Size:	3"x0.5" / 76.2*12.7mm	Color:	Green RAL 6005/Black RAL 9005
Feature:	Anti-corrosion/Anti-climb/Anti-cut	Material:	Hot Dip Galvanized
Sample:	For Free	Post Size:	60x60mm, 60x80mm, 80x80mm
Highlight:	Anti Climb 358 Security Fence , Hot Dip Galvanized 358 Security Fence , Anti Cut 358 Security Fence

Hot Dip Galvanized 358 High Security Fence Anti Climb Anti Cut Heavy Duty

Product Attributes

Attribute	Value
Hole Size	3"x0.5" / 76.2*12.7mm
Color	Green RAL 6005/Black RAL 9005
Feature	Anti-corrosion/Anti-climb/Anti-cut
Material	Hot Dip Galvanized
Sample	For Free
Post Size	60x60mm, 60x80mm, 80x80mm

Product Description

358 High Security Fence Anti Climb Anti Cut Heavy Duty Protection

Product Introduction

The 358 High Security Fence (also known as Prison Mesh Fence) is a premium perimeter security solution designed for maximum intrusion prevention.

Our 358 Security Fencing (Prison Mesh Fence) is engineered to deliver maximum perimeter security through its unique 12.7×76.2mm (0.5"×3") rectangular mesh pattern. This heavy-duty fencing system combines anti-climb and anti-cut properties with exceptional durability, making it the preferred choice for correctional facilities, military installations, and high-security commercial sites.

Constructed from heavy-duty 5-6mm steel wire with hot-dip galvanized (85μm+) or powder-coated finish, it offers decades of maintenance-free service even in harsh environments.

Technical Specifications

Core Parameters:

Component	Specification
Mesh Opening	12.7×76.2mm (Standard)
Wire Diameter	3.0/3.5/4.0mm (Customizable)
Panel Dimensions	Height: 1.2-6.0m (Custom) Width: 2.0-3.1m
Post Options	Square: 60×60mm/80×80mm (2.0-3.0mm thickness) Rectangular: 40×60mm to 80×100mm

Standard Configurations:

Model	2.1m	2.4m	3.0m
Height	2134mm	2438mm	2997mm
Width	2515mm	2515mm	2515mm
Wire Dia.	4mm	4mm	4mm
Post Size	60×60×3mm	60×60×3mm	60×60×3mm
Post Length	2.8m	3.1m	4.0m
Fixings	8	9	11

Key Features

Advanced Security Performance: Anti-climb mesh design prevents footholds, 4mm thick wires resist cutting tools (BS EN 10223-3 compliant), tamper-proof welded construction
Superior Durability: Hot-dip galvanized coating (85μm minimum), optional PVC/powder coating (RAL colors available), 25+ year service life in harsh environments
Flexible Configuration: Custom heights up to 6.0m, multiple post options (SHS/RHS), various wire diameters (3.0-6.0mm)

Surface Treatment Options

Standard: Hot-dip galvanized (EN ISO 1461)

Enhanced: Galvanized + PVC coated (2.0mm thickness)

Premium: Galvanized + powder coated (RAL color matched)

Available Colors: RAL 6005 (Green), RAL 7016 (Gray), or any RAL custom color

Typical Applications

Correctional facilities and detention centers
Military bases and government buildings
Airport perimeters and power plants
High-security commercial properties
Critical infrastructure protection

Installation & Compliance

Modular panel system for rapid deployment

Meets CPNI LPS 1175 SR3/SR4 security ratings

Complies with ASTM F567 and UK Home Office standards

Custom Solutions Available: Contact our engineering team for project-specific configurations, including non-standard dimensions, special fixings, or enhanced security features.
