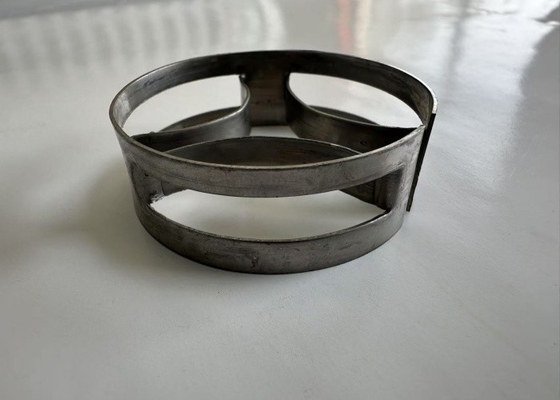

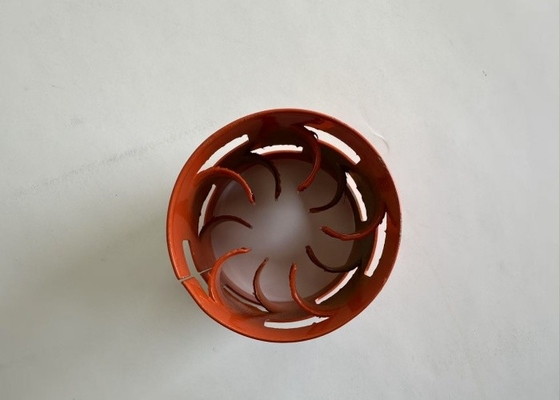

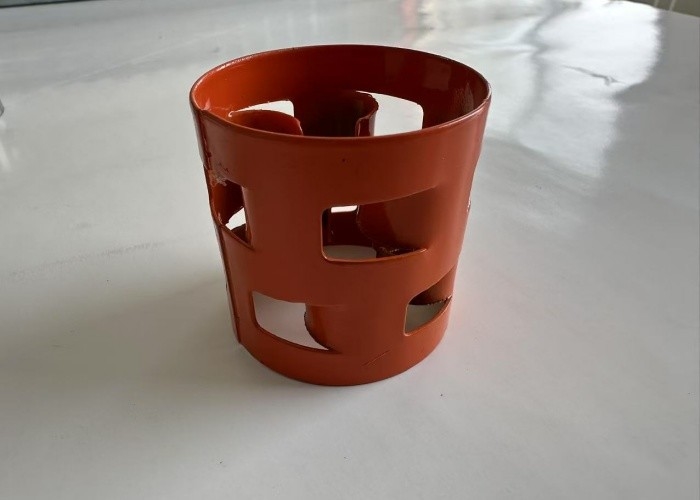

316L Stainless Steel Metal Pall Ring Random Tower Packing

Large Image : 316L Stainless Steel Metal Pall Ring Random Tower Packing

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	YUANHAI
Certification:	ISO9001:2015
Model Number:	YH-04

Payment & Shipping Terms:

Minimum Order Quantity:	5 cubic meters
Price:	USD280-1500/Cubic Meter
Packaging Details:	wooden case or customized
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	500 Cubic Meter/Cubic Meters per Month

Contact Now

Detailed Product Description

Material:	SS304,316,Stainless Steel,304L	Application:	Tower Packing,Industry,scrubbing
Shape:	Ring,Round,cylindrical,Cylindrical With Teeth	Product Name:	316L Metal Pall Ring Random Tower Packing,Metal Random Packing
Color:	The True Color,Gray Stainless Steel Metallic Pall Ring	Package:	Plastic Bag,Carton,Jumbo Bag
Sample:	Free Sample	Keywords:	So2 Absorption Metal Pall Ring,Metal Raschig Ring
Highlight:	Round Metal Tower Packing , Corrosion Resistant Metal Tower Packing , High Surface Area Metal Tower Packing

High Surface Area Metal Tower Packing Round Corrosion Resistant For Tower Efficiency

Product Attributes

Attribute	Value
Material	SS304, 316, Stainless Steel, 304L
Application	Tower packing, Industry, Scrubbing
Shape	Ring, Round, Cylindrical, Cylindrical with teeth
Product name	316L Metal Pall Ring Random Tower Packing, Metal Random Packing
Color	True color, Gray stainless steel metallic pall ring
Package	Plastic Bag, Carton, Jumbo Bag
Sample	Free sample
Keywords	SO2 absorption metal pall ring, Metal raschig ring

Product Description

Our Metal Random Packing represents the industry benchmark for high-performance tower internals, engineered to maximize mass transfer efficiency in the most demanding separation processes. Utilizing precision-formed geometric configurations and premium corrosion-resistant alloys, this packing delivers superior vapor-liquid contact while minimizing energy consumption across distillation, absorption, and stripping applications.

Key Features

High Efficiency Mass Transfer - Optimized geometry enhances vapor-liquid mixing with large surface area (100-500 m²/m³) and low HETP (0.4-1.0m)
Corrosion & Temperature Resistance - 316L SS for acidic/chloride environments, stable from cryogenic to high-temperature processes
Cost & Energy Savings - 30-50% lower pressure drop vs. trays, long service life (10+ years), easy to install and maintain

Technical Specifications

Parameter	Specification
Material Options	304SS, 316L SS, Carbon Steel, Monel, Titanium
Packing Types	Pall Rings, Raschig Rings, CMR, IMTP
Surface Area	100-500 m²/m³ (varies by type)
Void Fraction	90-98% (optimized for flow efficiency)
Pressure Drop	20-100 Pa/m (lower than trays)
HETP	0.4-1.0m (depends on system conditions)
Capacity (Cₛ)	0.03-0.10 m/s
Operating Temp.	-200°C to +550°C (material-dependent)
Certifications	ISO 9001

Applications

Petrochemical Processing:

Crude oil atmospheric/vacuum distillation
Aromatics (BTX) separation columns
Olefin purification systems
Solvent recovery units

Gas Treatment:

Amine contactors for acid gas removal
Glycol dehydration towers
LNG purification trains
CO₂ capture absorption columns

Specialty Chemical:

High-purity pharmaceutical distillation
Electronic-grade chemical production
Fine chemical separation processes

Manufacturing Process

Material Preparation: Vacuum arc remelting (VAR), cold rolling to precise thickness tolerances (±0.02mm), ultrasonic cleaning and pickling
Precision Forming: CNC-controlled stamping, micro-perforation (0.5-3mm holes), edge conditioning
Surface Enhancement: Electrochemical polishing (Ra ≤ 0.4μm), optional specialty coatings, passivation per ASTM A967
Quality Assurance: 3D optical scanning, destructive testing, salt spray testing (2000+ hours), cleanroom packaging

Why Choose Our Metal Random Packing?

10+ years of mass transfer expertise
Proprietary geometric designs
Advanced materials engineering
Complete technical support
Global project experience

Request samples with your operating parameters for a free efficiency analysis!
