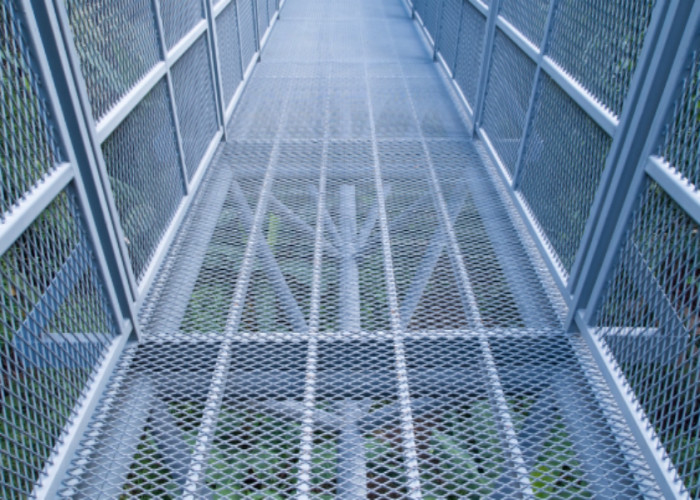

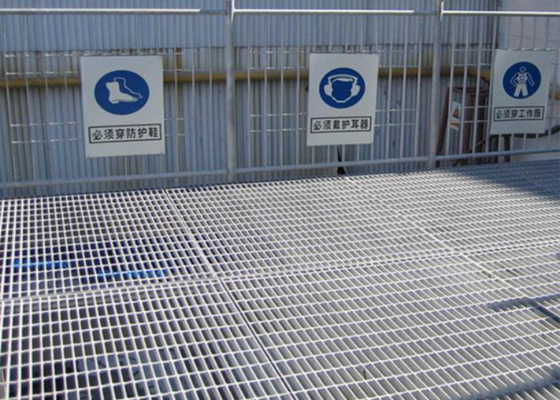

Steel Walkway Grating - Heavy Duty Anti Slip Safety Tread for Industrial Use
Product Overview:
Our Steel Walkway Grating represents the pinnacle of industrial safety flooring solutions, engineered to deliver unmatched durability and slip resistance in the most demanding work environments. Manufactured from high-grade steel using precision welding and pressing techniques, this grating system combines exceptional load-bearing capacity with superior corrosion resistance, making it ideal for oil refineries, power plants, chemical processing facilities, and heavy industrial sites worldwide.
Features:
1. Heavy-Duty Safety
Anti-Slip Surface: Serrated teeth or grit coating prevents slips (meets OSHA/EN ISO 14122).
High Load Rating: Supports forklifts (up to 5T/m²) and heavy equipment.
Fall Protection: Integrated toe guards available.
2. Corrosion Resistance
Hot-Dip Galvanized: 80μm zinc coating for 20+ years in harsh conditions.
Stainless Steel (304/316): Ideal for chemical/food plants.
3. Low Maintenance & Easy Installation
Pre-Assembled Panels: Bolt-on or clip-in installation.
Self-Cleaning Design: 80% open area for drainage/debris fall-through.
No Painting Needed: Galvanized/PVC-coated options.
Technical Data Sheet:
| Parameter |
Specification |
| Material |
Mild Steel (Q235), Stainless Steel (304/316), Galvanized Steel |
| Grating Type |
Welded / Press-Locked / Swage-Locked |
| Bearing Bar Size |
25x3mm, 30x3mm, 30x5mm, 40x5mm (custom available) |
| Mesh Opening |
30x100mm, 40x100mm (standard) |
| Surface Treatment |
Hot-Dip Galvanized (80μm), Powder Coated, Bare Steel |
| Load Capacity |
Up to 5,000 kg/m² (depends on span) |
| Slip Resistance |
Serrated Surface / Grit-Coated (OSHA compliant) |
| Panel Size |
1m × 6m (standard), Custom Sizes Available |
Manufacturing Process:
Material Cutting
CNC plasma cutting of bearing bars and cross rods.
Assembly
Welded Type: Robotically welded at each intersection.
Press-Locked: Hydraulic pressing for seamless joints.
Surface Treatment
Galvanizing: Immersed in 450°C zinc bath.
Powder Coating: Electrostatic spray + oven curing (optional colors).
Quality Control
Load testing (3x safety factor).
Salt spray test (1,000+ hours for coated products).
Packaging
Bundled with steel straps or wooden crates.
Applications:
Heavy Industry:
Oil platform access walkways
Power plant turbine decking
Mining equipment catwalks
Steel mill service platforms
Chemical Processing:
Acid-resistant stainless steel walkways
Battery manufacturing floors
Pharmaceutical plant maintenance platforms
Infrastructure:
Bridge inspection walkways
Water treatment plant access
Airport maintenance gantries
Request a Quote Today – Get a Free Sample for Your Project!
