Galvanized Steel Triangle Fence Panel Anti-Cut Security Mesh

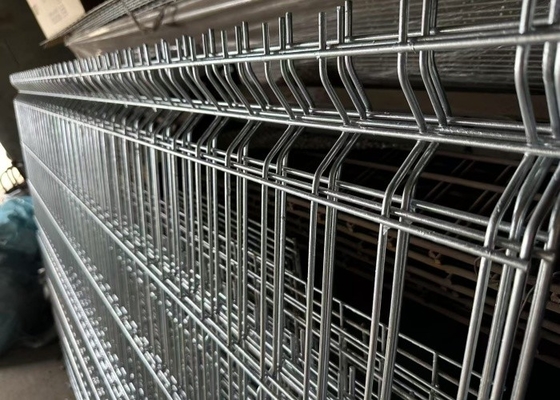

Large Image : Galvanized Steel Triangle Fence Panel Anti-Cut Security Mesh

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	YUANHAI
Certification:	ISO9001:2015
Model Number:	YH-005

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	US$3~20
Packaging Details:	By pallet or as demand
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	10000 Pcs 7 days

Contact Now

Detailed Product Description

Material:	Galvanized Steel	Wire Diameter:	4.0mm - 6.0mm
Height:	1.2m - 3.0m	Width:	2.0m - 3.0m
Surface Treatment:	Hot-Dip Galvanized	Security Level:	High Anti-Cut
Application:	Military/Prison/Industrial	Sample:	For Free
Highlight:	Anti Cut Triangle Fence Panel , High Security Triangle Fence Panel , Perimeter Protection Triangle Fence Panel

High Security Triangle Fence Panel Anti Cut Wire Mesh For Perimeter Protection

Product Specifications

Attribute	Value
Material	Galvanized Steel
Wire Diameter	4.0mm - 6.0mm
Height	1.2m - 3.0m
Width	2.0m - 3.0m
Surface Treatment	Hot-Dip Galvanized
Security Level	High Anti-Cut
Application	Military/Prison/Industrial
Sample	For Free

Triangle Security Fence Panel Crash Rated Tamper Proof Hot Dip Galvanized Coating

Product Overview

Our Triangle Security Fence Panel is engineered for maximum perimeter protection in high-risk facilities. Featuring a patented V-shaped triangular mesh design, this anti-climb, anti-cut fencing system exceeds international crash ratings (IWA 14-1 and PAS 68 standards) while providing superior tamper resistance. The hot-dip galvanized coating (minimum 300g/m² zinc) ensures 25+ years of corrosion-free performance in coastal or industrial environments.

Technical Specifications

Parameter	Specification
Material	High-tensile steel wire (Grade 550MPa+)
Wire Diameter	5.0mm (vertical), 6.0mm (horizontal)
Mesh Design	100mm x 50mm triangular openings
Coating	Hot-dip galvanized (300g/m²) + optional PVC
Impact Resistance	50kJ crash rating
Panel Size	2.4m(H) x 3.0m(W) ±1% tolerance
Frame	60x40mm rectangular steel tubing
Security Features	Anti-climb, anti-cut, no foot/hand holds

Applications

Critical Infrastructure: Nuclear plants, airports, military bases, border crossings, embassies, data centers
High-Security Facilities: Prisons, detention centers, courthouses, VIP residences, bank vault perimeters
Industrial Protection: Oil/gas facilities, power substations, ports, rail yards, truck depots

Key Advantages

Military-Grade Security: V-shaped mesh deflects cutting tools and prevents climbing (tested to BS EN 10223-3), 50mm narrow apex angles eliminate grip points
Crash-Proven Performance: Absorbs and redistributes impact energy (certified to PAS 68 vehicle impact standards), maintains structural integrity after collision
Zero Maintenance Durability: 300g/m² galvanization protects against salt spray (2000hrs salt fog test), optional PVC coating for chemical resistance
Rapid Deployment: Pre-assembled panels with clamp-on brackets (50% faster install than welded systems), modular design allows curved/angled configurations

Production Process

Our Triangle Security Fence Panels are manufactured through a meticulously controlled production process that begins with high-quality low-carbon steel wire rods (Grade Q195/Q235), which undergo rigorous material testing including spectrometer analysis and tensile strength verification. The wire drawing process utilizes multi-pass cold drawing to achieve precise diameters (5.0-6.0mm) with ±1mm tolerance, followed by automated CNC welding using German-made equipment that ensures consistent V-shaped mesh formation with ≥1.5KN pull-out strength per weld point. Each panel then receives a durable 300g/m² hot-dip galvanized coating (85μm minimum) through a carefully monitored 450°C zinc immersion process, with optional PVC coating (0.4-0.6mm) available in standard colors. The final assembly incorporates robotic welding of 60×40mm rectangular steel tubing frames, with 100% dimensional inspection (±2mm tolerance) and load testing (500kg static pressure) before weatherproof packaging.

Frequently Asked Questions

How long does this fence last?

At least 25 years, even near the ocean. With extra coating, over 35 years.

Can someone climb over it?

Very hard! The triangle shape gives no places to put hands or feet.

How fast can it be installed?

Much faster than normal fences - about 50% quicker because panels come ready.

Does it need maintenance?

Almost none! Just check it sometimes like you check your house walls.

Is it expensive?

Costs more at first but saves money because it never needs replacing.

Can I get a sample?
