358 Anti Cut Security Fence Panel 2.4m x 3.0m Galvanized Steel Mesh

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

358 Anti Cut Security Fence Panel 2.4m x 3.0m Galvanized Steel Mesh

358 Anti Cut Security Fence Panel 2.4m x 3.0m Galvanized Steel Mesh

Large Image :  358 Anti Cut Security Fence Panel 2.4m x 3.0m Galvanized Steel Mesh

Product Details:
Place of Origin: Hebei Province,China
Brand Name: YUANHAI
Certification: ISO9001:2015
Model Number: YH-ACF
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: US$20~80
Packaging Details: 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T
Supply Ability: 500PCS PER MONTH
Detailed Product Description
Applications: Prisons, Military Sites, Critical Infrastructure Mesh Size: 76.2mm X 12.7mm (3" X 0.5")
Material: High-Tensile Steel Installation: Pre-Assembled Panels With Bolt-On Fixings
Security Level: Anti-Climb, Anti-Cut Panel Dimensions: 2.4m (H) X 3.0m (W)
Coating Type: Hot-Dip Galvanized Wire Diameter: 4.0mm - 5.0mm (Galvanized)
Highlight:

358 Anti Cut Fence Panel

,

Maximum Security Fence Panel

,

High Strength Welded Mesh Fence Panel

358 Anti Cut Fence Panel - High Strength Welded Mesh for Maximum Security Applications
Product Overview

The 358 Anti Cut Fence Panel is engineered for maximum perimeter security, featuring a 76.2mm x 12.7mm (3" x 0.5") welded mesh design that prevents climbing, cutting, and intrusion. Made from high-tensile galvanized steel, this fence panel is ideal for high-risk facilities requiring tamper-proof, anti-scale protection.

Technical Specifications
Parameter Specification
Mesh Size 76.2mm (L) x 12.7mm (W) (3" x 0.5")
Wire Diameter 4.0mm (vertical) / 5.0mm (horizontal)
Material High-tensile steel
Coating Hot-dip galvanized (300g/m²) or PVC-coated
Panel Size 2.4m (H) x 3.0m (W) (Custom sizes available)
Frame 50x50mm steel tubing (2.5mm thickness)
Security Standards ISO9001:2015
Key Features
  • Superior Anti-Cut & Anti-Climb Design: Ultra-small mesh apertures (3" x 0.5") prevent hand/foot holds with 4.0mm-5.0mm thick wires that resist bolt cutters and sawing
  • Military-Grade Durability: Hot-dip galvanized coating (300g/m²) for 25+ years of rust resistance with optional PVC coating (RAL 6005 green/black) for added UV/chemical protection
  • Crash & Impact Resistant: Reinforced 50x50mm steel frame for structural rigidity with PAS 68 certification for vehicle impact resistance
  • Easy Installation & Low Maintenance: Pre-assembled panels with bolt-on brackets for quick deployment requiring no welding with modular design fitting curved perimeters
Manufacturing Process

Our precision manufacturing includes:

  • Wire drawing of cold-drawn steel wire (4.0mm-5.0mm) for high tensile strength
  • Automated precision CNC welding for uniform mesh structure
  • Hot-dip galvanizing at 450°C for corrosion resistance
  • Optional PVC coating via electrostatic spray for color & extra durability
  • Robotic welding of 50x50mm steel frames
  • Rigorous quality control including salt spray testing, mesh tension checks, and load testing
Applications

Ideal for high-security installations including:

  • Prisons & detention centers to prevent escapes and unauthorized access
  • Military & government sites requiring protection against forced entry
  • Airports & critical infrastructure for perimeter security in high-risk zones
  • Industrial facilities securing oil refineries, power plants, and data centers
  • Commercial properties including VIP estates, banks, and high-value storage
Frequently Asked Questions
How does the 358 mesh compare to chain-link fencing?

Far more secure—its small apertures and thick wires resist cutting/climbing, unlike chain-link.

What's the lifespan in coastal areas?

20+ years with galvanized coating; 30+ years with PVC.

Is customization possible?

Yes—custom heights, widths, and coatings available.

How fast can it be installed?

3x faster than welded fences due to pre-assembled panels.

Custom Solutions

Contact our engineering team for project-specific configurations, including non-standard dimensions, special fixings, or enhanced security features.

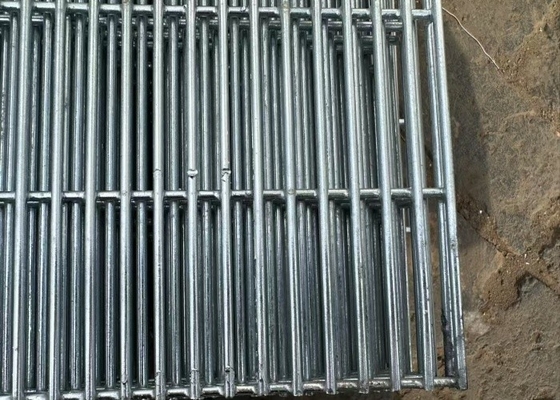

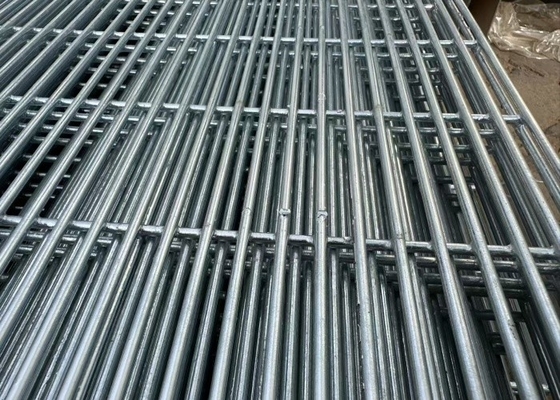

358 Anti Cut Security Fence Panel 2.4m x 3.0m Galvanized Steel Mesh 0 358 Anti Cut Security Fence Panel 2.4m x 3.0m Galvanized Steel Mesh 1 358 Anti Cut Security Fence Panel 2.4m x 3.0m Galvanized Steel Mesh 2
