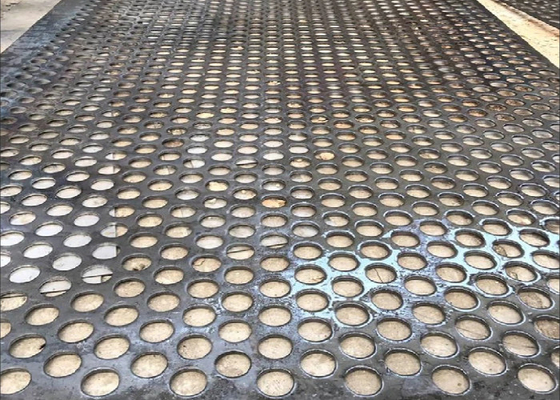

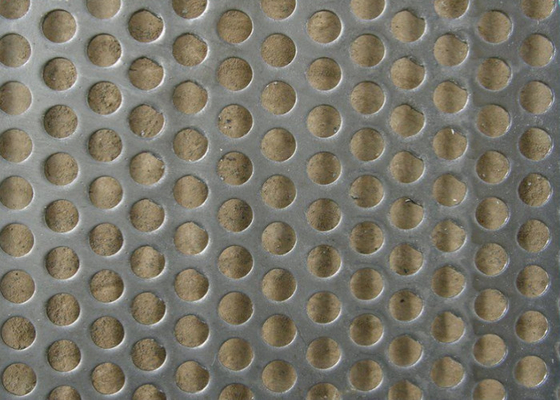

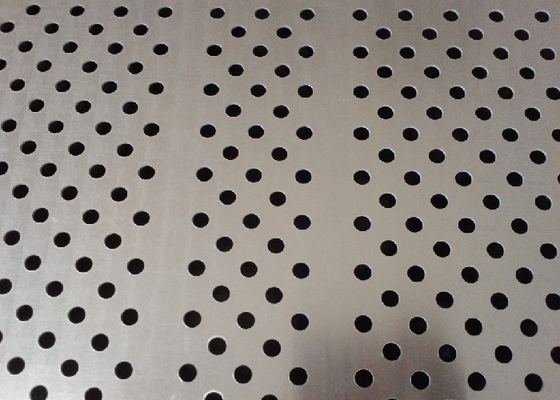

Precision Perforated Metal Mesh Laser Cut Holes Stainless Steel Custom Sizes Patterns

Ventilation Perforated Mesh Panel - Uniform Airflow with Reinforced Edges for Durability

Product Overview:

Our Ventilation Perforated Mesh Panel combines precise airflow control with industrial-strength construction. Featuring laser-cut perforations and reinforced border frames, these panels deliver 30% better airflow distribution than standard mesh while maintaining structural integrity under heavy loads. Ideal for HVAC systems, machinery guards, and architectural cladding.

Technical Data Sheet:

Key Advantages:

1.Superior Airflow Design

• Uniform hole distribution reduces turbulent airflow
• Open area customization for specific CFM requirements

2.Industrial-Grade Durability

• Reinforced edges prevent warping (20% thicker border than standard panels)
• Vibration-resistant for mechanical applications

3.Corrosion Resistance

• Stainless steel options withstand harsh environments (salt spray test >1000hrs)
• Aluminum variants with anodized coating (Class II oxidation resistance)

4.Aesthetic Flexibility

• Brushed/Polished finishes for architectural use
• Powder coating available in RAL colors

Applications:

1.HVAC & Industrial Ventilation

• Air intake screens, duct covers, fan guards

2.Machinery Protection

• Generator enclosures, compressor panels

3.Architectural Solutions

• Building facades, sunshades, decorative screens

4.Transportation

• Automotive grilles, marine engine covers

Manufacturing Process:

1.Laser Precision Cutting

• Fiber laser machines (0.02mm precision)
• Automated hole pattern programming

2.Edge Reinforcement

• 20mm frame bending (hydraulic press brake)
• Corner gusset welding (TIG process)

3.Surface Treatment

• Electrolytic polishing (for stainless steel)
• Anodizing/Powder coating (for aluminum)

4.Quality Control

• Airflow testing (wind tunnel verification)
• Load deflection measurement

FAQ:

Q1: What is the typical lead time for custom perforated panels?
A: Standard designs (pre-configured hole patterns/sizes) ship in 7-10 business days. Fully custom designs take 10-15 business days.

Q2: Can these panels be used outdoors in coastal areas?
A: Yes! Our 316 stainless steel panels with electrolytic polishing withstand saltwater corrosion. For aluminum, specify marine-grade anodizing.

Q3: What’s the weight difference between stainless steel and aluminum panels?
A: Aluminum is ~50% lighter (e.g., a 1.5m x 1m x 2mm panel weighs 8.1kg vs. 16.2kg for stainless steel).

Q4: What’s the MOQ for custom designs?
A: 5 panels for testing/prototyping. Production MOQ is 50PCS for standard materials.

Q5: How are panels packaged for shipping?
A: Each panel is foam-wrapped + crated with edge protectors. Frames are palletized to prevent transit damage.

Request a Quote Today – Secure Your Perimeter with Unbeatable Quality!
