Stainless Steel Perforated Mesh Panel Custom Hole Patterns

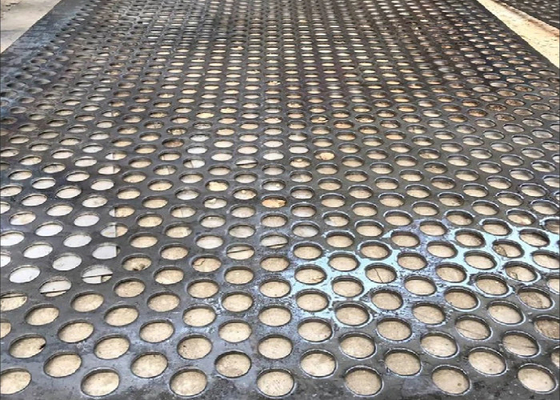

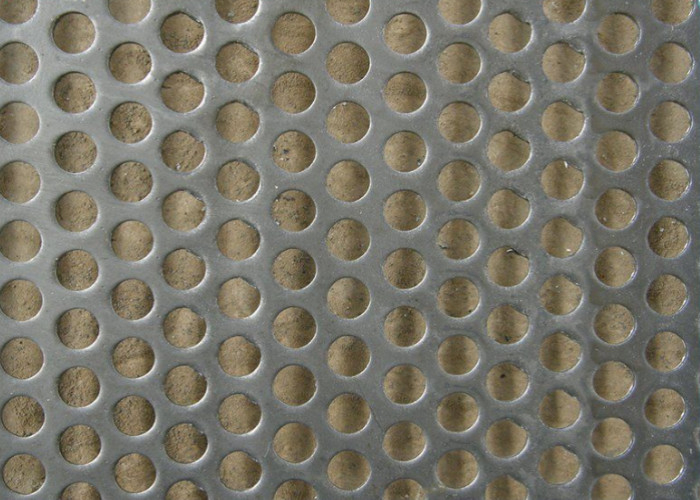

Large Image : Stainless Steel Perforated Mesh Panel Custom Hole Patterns

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	YUANHAI
Certification:	ISO9001:2015
Model Number:	YH-08

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	US$2~10
Packaging Details:	By pallet or as demand
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	500 Ton/Tons per Month

Contact Now

Detailed Product Description

Material:	Stainless Steel 304/316	Thickness:	0.5mm - 6.0mm (Customizable)
Hole Shape:	Round/Square/Hexagonal/Slot	Hole Size:	1mm - 50mm Diameter
Open Area:	20% - 70%	Panel Size:	1000mm X 2000mm (Standard)
Surface Finish:	Mill Finish/Brushed/Polished	Application:	Filtration/Architecture/Ventilation
Highlight:	Laser Cut Perforated Metal Mesh , Custom Sizes Perforated Metal Mesh , Stainless Steel Perforated Metal Mesh

Precision Perforated Metal Mesh - Laser Cut Holes in Stainless Steel

Product Specifications

Attribute	Value
Material	Stainless Steel 304/316
Thickness	0.5mm - 6.0mm (Customizable)
Hole Shape	Round/Square/Hexagonal/Slot
Hole Size	1mm - 50mm Diameter
Open Area	20% - 70%
Panel Size	1000mm x 2000mm (Standard)
Surface Finish	Mill Finish/Brushed/Polished
Application	Filtration/Architecture/Ventilation

Ventilation Perforated Mesh Panel - Uniform Airflow with Reinforced Edges

Our ventilation perforated mesh panels combine precise airflow control with industrial-strength construction. Featuring laser-cut perforations and reinforced border frames, these panels deliver 30% better airflow distribution than standard mesh while maintaining structural integrity under heavy loads.

Technical Specifications

Parameter	Specification
Material	Stainless Steel 304/316
Thickness	1.0mm - 5.0mm (Customizable)
Hole Pattern	Round/Square/Hexagonal (CAD File Accepted)
Hole Size	2mm - 25mm Diameter (±0.05mm Tolerance)
Open Area Ratio	25% - 60% (Precision Engineered)
Panel Dimensions	Max. 1500mm x 3000mm (Larger on Request)
Frame Reinforcement	20mm Wide Border with 2.5mm Gusset Corners
Load Capacity	Up to 500kg/m² (Depends on Thickness)

Key Advantages

Superior Airflow Design - Uniform hole distribution reduces turbulent airflow with open area customization for specific CFM requirements
Industrial-Grade Durability - Reinforced edges prevent warping (20% thicker border than standard panels) with vibration-resistant construction
Corrosion Resistance - Stainless steel withstands harsh environments (salt spray test >1000hrs) with aluminum variants featuring Class II oxidation resistance
Aesthetic Flexibility - Available in brushed/polished finishes for architectural use with powder coating options in RAL colors

Applications

HVAC & Industrial Ventilation - Air intake screens, duct covers, fan guards
Machinery Protection - Generator enclosures, compressor panels
Architectural Solutions - Building facades, sunshades, decorative screens
Transportation - Automotive grilles, marine engine covers

Manufacturing Process

Laser Precision Cutting - Fiber laser machines (0.02mm precision) with automated hole pattern programming
Edge Reinforcement - 20mm frame bending (hydraulic press brake) with corner gusset welding (TIG process)
Surface Treatment - Electrolytic polishing (for stainless steel) and anodizing/powder coating (for aluminum)
Quality Control - Airflow testing (wind tunnel verification) with load deflection measurement

Frequently Asked Questions

What is the typical lead time for custom perforated panels?

Standard designs (pre-configured hole patterns/sizes) ship in 7-10 business days. Fully custom designs take 10-15 business days.

Can these panels be used outdoors in coastal areas?

Yes! Our 316 stainless steel panels with electrolytic polishing withstand saltwater corrosion. For aluminum, specify marine-grade anodizing.

What's the weight difference between stainless steel and aluminum panels?

Aluminum is ~50% lighter (e.g., a 1.5m x 1m x 2mm panel weighs 8.1kg vs. 16.2kg for stainless steel).

What's the MOQ for custom designs?

5 panels for testing/prototyping. Production MOQ is 50PCS for standard materials.

How are panels packaged for shipping?

Each panel is foam-wrapped + crated with edge protectors. Frames are palletized to prevent transit damage.
