316 Stainless Steel Filter Mesh High Temperature Resistant

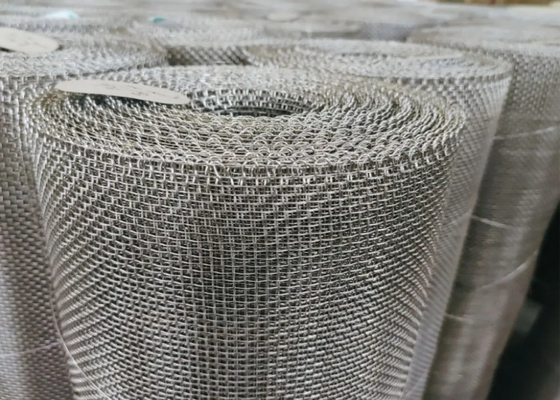

Large Image : 316 Stainless Steel Filter Mesh High Temperature Resistant

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	YUANHAI
Certification:	ISO9001:2015
Model Number:	YH-008

Payment & Shipping Terms:

Minimum Order Quantity:	5 Rolls
Price:	$1.8-5.9/㎡
Packaging Details:	By pallet or as demand
Delivery Time:	according to quantity
Payment Terms:	T/T
Supply Ability:	10000m²/5 DAYS

Contact Now

Detailed Product Description

Material:	Stainless Steel Wire,316,304,Low-Carbon Iron Wire	Application:	Filters,Screen,Woven Wire Mesh,High-grade Office Buildings
Color:	Silver,Sliver/Golden/Black,Black	Aperture:	Customize,0.0385 - 0.273
Mesh:	2 - 635 Mesh,1-3200mesh	Sample:	Free
Mesh Count:	1x1-635x635mesh/inch,10-635 Mesh,2-650mesh	Hole Shape:	Square Hole,Diamond,fanshaped,Square/Round
Highlight:	316 Stainless Steel Filter Mesh , Durable Stainless Steel Filter Mesh

316 Stainless Steel Filter Mesh - High Temperature Resistant Durable Screening

Product Attributes

Attribute	Value
Material	Stainless Steel Wire, 316, 304, Low-Carbon Iron Wire
Application	Filters, Screen, Woven Wire Mesh, High-grade office buildings
Color	Silver, Sliver/Golden/Black, Black
Aperture	Customize, 0.0385 - 0.273
Mesh	2 - 635 mesh, 1-3200mesh
Sample	Free
Mesh count	1x1-635x635mesh/inch, 10-635 mesh, 2-650mesh
Hole shape	Square Hole, Diamond, fanshaped, Square/Round

Product Overview

Our 316 Stainless Steel Filter Mesh is engineered for extreme durability and precision filtration in demanding industrial environments. Made from marine-grade 316 stainless steel, this mesh offers superior corrosion resistance, high-temperature stability (up to 800°C), and long-lasting structural integrity, making it ideal for chemical processing, oil & gas, and food-grade applications.

Key Features

Premium 316 Stainless Steel
- 18% chromium + 2-3% molybdenum composition resists pitting/crevice corrosion
- Saltwater/acid/alkali resistant - outperforms 304 SS in harsh environments
High-Temperature Performance
- Withstands continuous 800°C / intermittent 900°C
- No deformation or oxidation scaling
Precision Filtration
- Standard mesh counts: 10-500 (custom down to 1μm)
- Smooth surface finish (Ra≤0.6μm) prevents particle trapping
Mechanical Strength
- Tensile strength: ≥520MPa
- Elongation: ≥40% (maintains shape under pressure)
Easy Integration
- Available as rolls, discs, or custom-shaped filters
- Weld-ready edges for modular systems

Technical Specifications

Parameter	Specification
Material	316 Stainless Steel (AISI 316L optional)
Wire Diameter	0.025mm - 2.0mm
Mesh Count	10-500 (or 1-5000μm pore size)
Width	100mm - 2000mm (custom widths available)
Max Temp	800°C continuous / 900°C short-term
Surface Finish	Plain weave/Twill Dutch weave/Sintered
Certifications	ISO 9001, ASTM E2016

Applications

Oil & Gas: Wellhead screens, catalyst recovery
Chemical: Acid filtration, reactor protection
Pharma: Sterile air vents, fermentation
Food: Brewery sieves, edible oil refining
Energy: Nuclear coolant filters, exhaust systems

Manufacturing Process

Wire Drawing
- Cold-drawn to ±0.001mm precision
- Annealed for uniform ductility
Weaving
- Computer-controlled looms for consistent mesh
- Optional 5-layer sintered mesh for nano-filtration
Heat Treatment
- Stress-relieved at 400°C
- Bright annealed

Frequently Asked Questions

What is 316 stainless steel mesh good for?

It's perfect for harsh environments like seawater, chemicals, and high heat. Common uses include oil filters, food processing, and medical equipment.

Is this mesh stronger than regular steel wire mesh?

Yes, 316 stainless steel is much stronger and won't rust like normal steel, even in wet or salty conditions.

What sizes are available?

We offer fine to coarse mesh (10-500 holes per inch) and custom sizes if needed.

How long does it last?

With proper care, it can last 10+ years even in tough conditions.

Can I cut or shape it myself?

Yes, but for best results, we recommend professional laser or waterjet cutting to avoid fraying.

Is it safe for food or medical use?

Yes! It meets FDA standards for food and medical safety.

How do I clean it?

Use warm water, mild soap, or an ultrasonic cleaner for deep cleaning.
