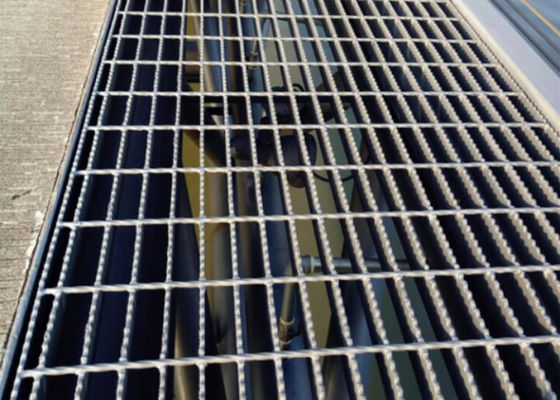

Hot Dip Galvanized Steel Grating for Industrial Drainage

Large Image : Hot Dip Galvanized Steel Grating for Industrial Drainage

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-G1

Payment & Shipping Terms:

Minimum Order Quantity:	50Pcs
Price:	USD5-26/pc
Packaging Details:	1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Delivery Time:	5-10days
Payment Terms:	T/T,L/C
Supply Ability:	5000Pcs Per Month

Contact Now

Detailed Product Description

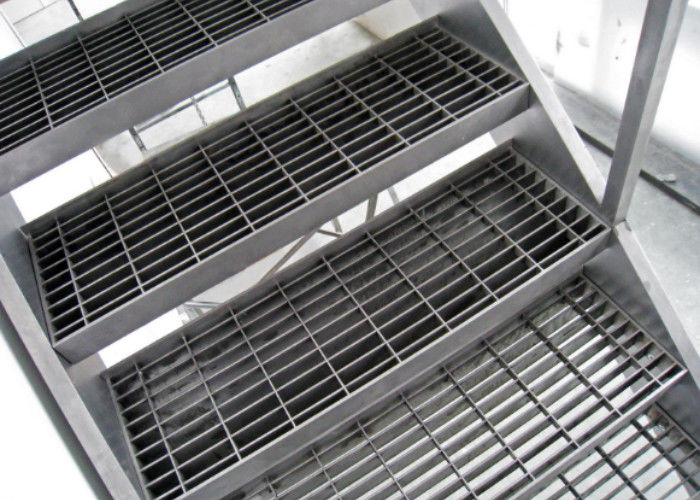

Application:	Floor,walkway Mesh,stair	Product Name:	Steel Grating,Galvanized,Safety Grating Walkway Mesh Concrete Steel Grating
Type:	Plain Bar Grating,Serrated Bar Grating	Standard:	ISO9001
Color:	On Your Request	Sample:	Free
Grating Size:	3'x20',1000x1000mm,1.8x6m Or Do As Client's Demand	Usage:	Public Drain Area,metal Building Material,Concrete Construction Support
Highlight:	Industrial Pavements Steel Drainage Grating , High Flow Steel Drainage Grating , Hot Dip Galvanized Steel Grating

Hot Dip Galvanized Steel Drainage Grating High Flow Capacity Industrial Pavements

Product Specifications

Attribute	Value
Application	Floor, walkway mesh, stair
Product name	Steel Grating, Galvanized, Safety grating walkway mesh concrete steel grating
Type	Plain Bar Grating, Serrated Bar Grating
Standard	ISO9001
Color	On your request
Sample	Free
Grating size	3'x20', 1000x1000mm, 1.8x6m or as per client's requirements
Usage	Public Drain Area, metal building material, Concrete Construction Support

Product Description

Designed for industrial drainage challenges, our Hot-Dip Galvanized Heavy-Duty Steel Drainage Grating combines rugged durability with exceptional water management. Constructed from 5mm-thick Q355B steel flat bars, the grating features 25mm-wide slots and an 83% open area, achieving a flow rate of 15 m³/h per m² - 3x faster than concrete drains.

Technical Specifications

Parameter	Details
Material	Q355B carbon steel, hot-dip galvanized
Flat Bar Size	50x5mm (standard), 60x6mm for extreme loads
Slot Width	25mm (optimized for debris retention while maximizing flow)
Load Capacity	Static load: 20 tons/m² (truck traffic); impact load: 10 tons (drop test)
Flow Rate	15 m³/h per m², suitable for 100-year storm events
Corrosion Resistance	Passed 2,000-hour salt spray test (ASTM B117), pH 2-12 chemical resistance
Panel Size	Standard: 2000x1000mm, 4000x1000mm (custom lengths up to 6000mm)

Key Advantages

Industrial-Grade Drainage Performance: 83% open area prevents water pooling with flow rates 3x faster than concrete drains
Unmatched Durability: 20+ year warranty with galvanized coating that withstands heavy machinery and harsh chemicals
Installation Efficiency: Lightweight modular panels (32kg/m²) speed installation by 40% vs concrete drains
Environmental Compliance: Suitable for capturing oil/chemical spills in compliance with EPA regulations

Applications

Ideal for industrial pavements, infrastructure drainage, wastewater facilities, and commercial sites including:

Truck yards and factory driveways
Highway medians and bridge decks
Wastewater treatment plant walkways
Parking garages and fuel station aprons

Frequently Asked Questions

Q: Can this grating handle acidic wastewater?

A: Yes. The optional epoxy coating provides pH 2-12 resistance, suitable for chemical plant drainage.

Q: What is the maximum vehicle weight it can support?

A: The 60x6mm flat bar model supports up to 40-ton trucks when installed on 200mm centers.

Q: How do I prevent debris from blocking the slots?

A: Use our optional debris baskets (sold separately) or specify 15mm slots for fine debris control.

Q: Can I get a sample with custom slot spacing?

A: Yes. Free 1m² samples with your specified slot width are available within 7 working days.

Request a Quote Today - Get a Free Sample for Your Project!
