Eco-Galvanized Steel Walkway Grating Modular Industrial Platforms

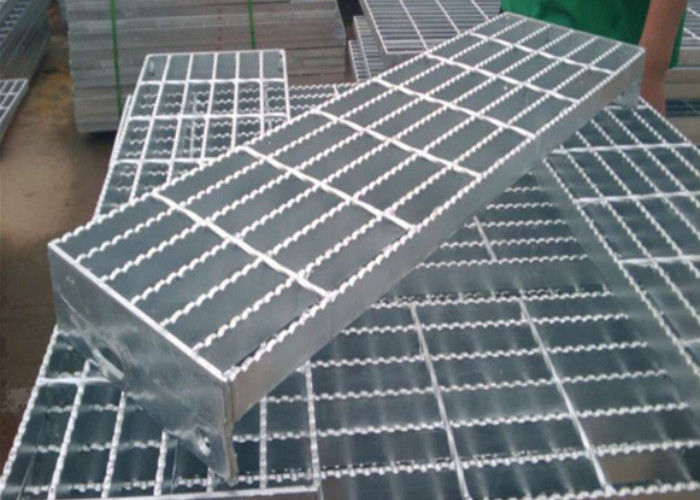

Large Image : Eco-Galvanized Steel Walkway Grating Modular Industrial Platforms

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-G1

Payment & Shipping Terms:

Minimum Order Quantity:	50Pcs
Price:	USD5-26/pc
Packaging Details:	1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Delivery Time:	5-10days
Payment Terms:	T/T,L/C
Supply Ability:	5000Pcs Per Month

Contact Now

Detailed Product Description

Material:	Steel,Galvanized Sheet,Aluminum Mesh,Q235	Application:	Floor,walkway Mesh,stair
Type:	Plain Bar Grating,Serrated Bar Grating,Plain	Standard:	ISO9001
Color:	Silver,black	Sample:	Free
Shape:	Square,customized	Grating Size:	3'x20',1000x1000mm
Highlight:	Modular Perforated Grating Platforms , Eco Galvanized Perforated Grating Platforms , Quick Connect Perforated Grating Platforms

Eco Galvanized Modular Perforated Grating Quick Connect Industrial Platforms

Product Attributes

Attribute	Value
Material	Steel, Galvanized Sheet, Aluminum Mesh, Q235
Application	Floor, walkway mesh, stair
Type	Plain Bar Grating, Serrated Bar Grating, Plain
Standard	ISO9001
Color	Silver, black
Sample	Free
Shape	Square, customized
Grating size	3'x20', 1000x1000mm

Product Description

Eco-Galvanized Modular Steel Walkway Grating Quick-Connect Industrial Platforms

Product Introduction

Our Eco-Galvanized Modular Steel Walkway Grating revolutionizes industrial flooring with its sustainable design and rapid installation system. Crafted from recycled steel with a chromium-free galvanized coating, the grating combines environmental responsibility with rugged performance. The modular panels feature a patented Quick-Connect locking system, enabling 60% faster installation than traditional welded gratings—ideal for factories, warehouses, and energy plants seeking green, efficient solutions.

Data Sheet

Parameter	Details
Material	Recycled Q235B steel, eco-galvanized (Zn coating ≥80μm, chromium-free passivation)
Bar Size	30x3mm, 40x5mm (standard: 40x5mm for medium loads)
Mesh Aperture	30x100mm, 50x100mm (customizable for light/food industry applications)
Panel Dimensions	Standard: 1200x3000mm, 600x3000mm (modular tiles for easy replacement)
Load Capacity	Uniform load: 3.8 kN/m²; point load: 1.2 kN (tested to EN 1090-1 standards)
Installation Time	100m² installed in 2 hours (2-person team, no welding required)

Production Process

Eco-Friendly Galvanization: Recycled Steel Base: 85% post-industrial recycled steel reduces carbon footprint by 35% vs. virgin steel.
Modular Engineering: Panels pre-cut with precision CNC machines, featuring interlocking edges and pre-drilled holes for Quick-Connect clips.
Quick-Connect System: Patented stainless steel clips (tested to 2kN pull force) snap onto panel edges, eliminating on-site welding and grinding.
Quality Control: Each panel undergoes eddy current testing for coating integrity and load simulation.

Key Advantages

Sustainability Meets Performance: EU Ecolabel ensures minimal environmental impact, ideal for LEED/BREEAM-certified projects. 100% recyclable at end-of-life, with 85% recycled content reducing raw material waste.
Rapid Modular Installation: Quick-Connect clips allow installation with basic hand tools, saving 60% labor costs vs. welded gratings. Damaged panels can be swapped out in minutes, minimizing downtime for industrial maintenance.
Industrial-Grade Durability: Eco-galvanized coating passes 1,000-hour salt spray test without red rust, suitable for food processing or pharmaceutical plants. Modular joints absorb machine vibrations, reducing noise and preventing loosening over time.
Cost-Effective Solution: 20% Lower Total Cost: Reduced labor + maintenance costs over 20-year lifecycle vs. traditional steel gratings.

Product Features

Anti-Static Treatment: Optional conductive coating for electronics factories.
Hygienic Design: Smooth edges and closed profiles meet FDA standards for food processing facilities.
Customizable Surface: Textured or serrated finish for slip resistance.

Applications

Green Industrial Projects: LEED-certified factory walkways, sustainable warehouse flooring, and renewable energy plant platforms.
Food & Pharma Sectors: Hygienic walkways in breweries, pharmaceutical manufacturing, and dairy facilities (easy-to-clean surface).
Maintenance-Intensive Environments: Modular access floors in data centers, where quick panel removal enables easy cable management.
Temporary Structures: Portable walkways for construction sites, outdoor events, or disaster relief operations.
