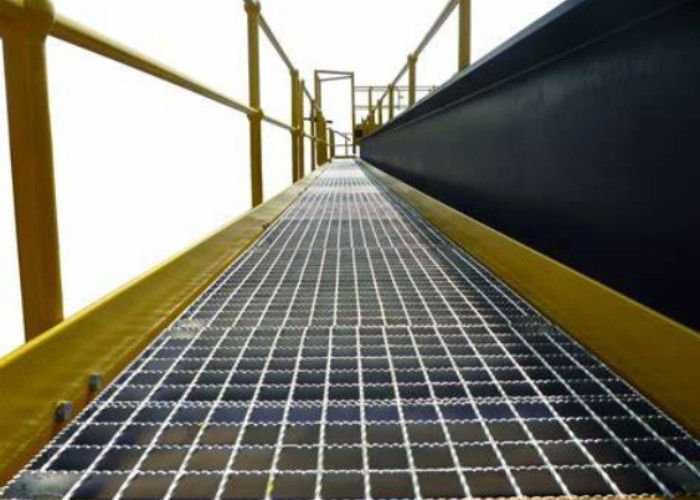

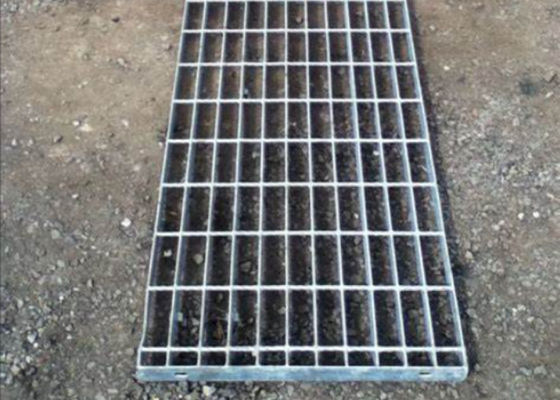

Eco Friendly Recycled Industrial Walkway Grating 600×3000mm

Eco-Friendly Steel Walkway Grating: 85% Recycled Material, ISO 14001-Certified

1. Product Introduction

3. Production Process

1. Recycled Steel Sourcing:
   • 85% of steel originates from post-industrial scrap (e.g., automotive parts, construction waste), sorted via magnetic separation and X-ray fluorescence to ensure purity.
2. Eco-Galvanization:
   • Chromium-free trivalent passivation (RoHS compliant) replaces hazardous hexavalent chromium, reducing wastewater toxicity by 90%.
   • Zinc coating thickness controlled via automated electroplating (85μm standard, 275g/m² for marine applications).
3. Modular Fabrication:
   • CNC punching and cutting for precise mesh apertures (30×100mm standard), with serrated edges formed by cold-rolling (3mm height, 60° angle).
4. Sustainability Controls:
   • Energy-efficient induction furnaces reduce electricity use by 22%; 90% of process water recycled through reverse osmosis systems.

4. Key Advantages

1. ESG Compliance at Scale:
2. Recycled content reduces raw material demand, aligning with circular economy targets (e.g., UK Waste Strategy 2025).
3. Performance Parity with Traditional Grating:
   • Load capacity matches virgin steel solutions.
   • Anti-slip rating exceeds OSHA 1910.29 requirements for industrial walkways.
4. Total Cost of Ownership (TCO) Savings:
   • 20% lower lifecycle cost vs. non-recycled grating (15-year warranty, minimal maintenance).
   • Higher scrap value at end-of-life (25% more than traditional steel due to certified recyclability).

5. Applications

• Renewable Energy:
  • Solar farm access roads, wind turbine maintenance platforms
• Marine & Ports:
  • Coastal dock walkways (275g/m² Zn-Al coating resists saltwater), cruise ship decks
• Industrial Facilities:
  • Food processing plants (FDA-compliant epoxy finish), chemical plant catwalks
• Urban Infrastructure:
  • LEED-certified commercial building mezzanines, railway station footbridges

6. FAQ
