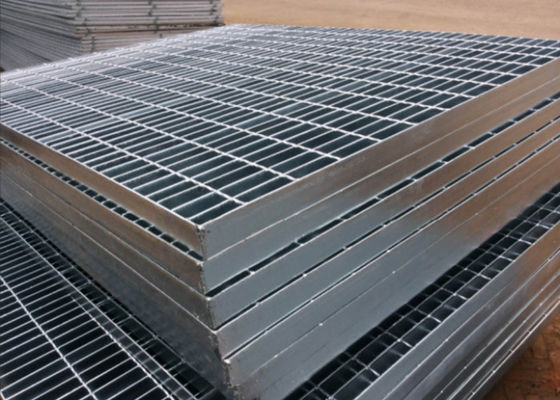

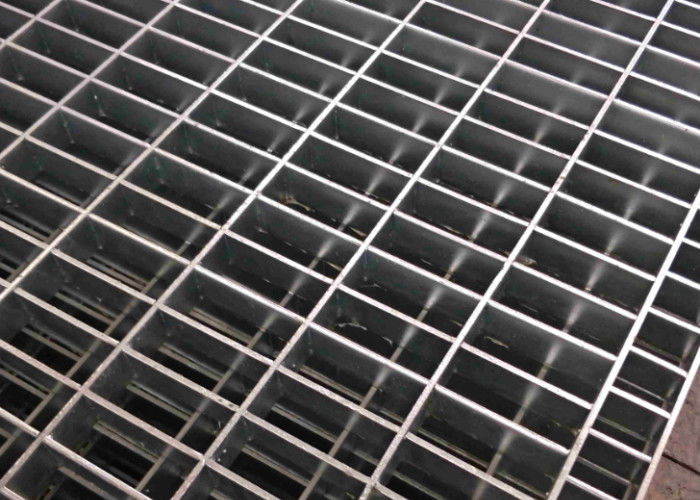

Modular Heavy Load Galvanized Bar Grating For Construction Site Flooring System

Modular Steel Walkway Grating - Heavy Load Construction Site Flooring System

Product Introduction

Engineered for extreme construction environments, our Modular Steel Walkway Grating delivers instant-access flooring that withstands 10-ton vehicle loads while providing slip-resistant safety. Featuring bolt-free clamping technology and hot-dip galvanized construction, this system assembles 3x faster than welded alternatives – ideal for high-traffic zones like crane paths, formwork decks, and temporary access bridges.

Technical Data Sheet

Construction Site Applications

Manufacturing Process

1. Laser Cutting

   • 6kW fiber laser (±0.2mm precision)

2. Robotic Bending

   • 1,200-ton CNC press brake (angle tolerance ±0.5°)

3. Galvanizing

   • 450°C zinc bath (300g/m² min. coating)

4. Anti-Slip Treatment

   • Grit blasting + electrostatic epoxy bonding

5. Quality Assurance

   • 3D scanning for flatness

   • 150% overload testing

   • Salt spray test >2,000hrs (ASTM B117)

FAQ

Q: How to handle curved surfaces?
A: Radially-cut panels available (min. radius 1.5m) with custom clamps.

Q: Can it withstand cement truck spillage?
A: Yes – epoxy-coated version cleans with high-pressure water.

Q: Weight per square meter?
A: 30kg/m² (standard) vs. 80kg/m² for concrete alternatives.

Q: Maintenance during use?
A: Weekly rinse with water – no brushing required.

Q: Reusability across projects?
A: 400+ relocations possible – we provide refurbishment kits.
