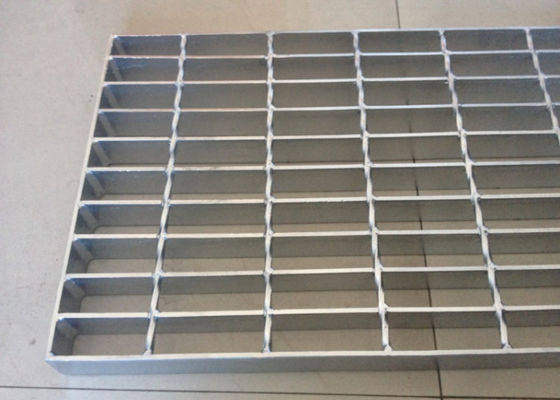

Galvanized Steel Walkway Grating R13 Anti-Slip Q235 Q345

Large Image : Galvanized Steel Walkway Grating R13 Anti-Slip Q235 Q345

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-G1

Payment & Shipping Terms:

Minimum Order Quantity:	50Pcs
Price:	USD5-26/pc
Packaging Details:	1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Delivery Time:	5-10days
Payment Terms:	T/T,L/C
Supply Ability:	5000Pcs Per Month

Contact Now

Detailed Product Description

Material:	Steel,Galvanized Sheet,Q235,ASTM A36 A1011 A569 Q235	Surface Treatment:	Hot Dipped Galvanized,galvanized,Hot Dip Galvanized
Application:	Floor,stair,Industrial Platform	Standard:	ISO9001,AS1657
Sample:	Free	Grade:	Q235 Q345
Usage:	Public Drain Area,metal Building Material	Cross Bar Pitch:	100mm,24-200mm
Highlight:	Industrial Grade Walkway Grating , R13 Anti Slip Walkway Grating , Galvanised Steel Walkway Grating

Industrial Grade Galvanised Steel Walkway Grating R13 Anti Slip

Product Specifications

Attribute	Value
Material	Steel, Galvanized Sheet, Q235, ASTM A36 A1011 A569 Q235
Surface treatment	Hot Dipped Galvanized, galvanized, Hot dip Galvanized
Application	Floor, stair, Industrial platform
Standard	ISO9001, AS1657
Sample	Free
Grade	Q235 Q345
Usage	Public Drain Area, metal building material
Cross bar pitch	100mm, 24-200mm

Industrial-Grade R13 Anti-Slip Steel Walkway Grating - 2.5T Point Load, EN 1090 Certified

Product Introduction

Engineered for industrial environments demanding extreme durability, our Heavy-Duty Anti-Slip Steel Walkway Grating combines a 2.5-ton point load capacity with proven slip resistance to meet the toughest safety standards. Certified to EN 1090-2 Execution Class 2, this grating is ideal for heavy machinery zones, logistics hubs, and infrastructure projects where reliability and worker safety are non-negotiable. The serrated surface design and high-strength Q355B steel construction ensure long-term performance in harsh conditions.

Technical Specifications

Parameter	Specifications
Material	Q355B high-strength steel, hot-dip galvanized (Zn layer ≥85μm, ISO 1461)
Load Capacity	Point load: 2.5 kN (250kg); uniform load: 5.2 kN/m² (EN 1090-1 tested)
Anti-Slip Rating	R13 (DIN 51130), coefficient of friction ≥0.7 (wet conditions)
Bar Size	50×5mm (standard), 60×5mm for extreme loads
Mesh Aperture	30×100mm (prevents debris accumulation)
Certifications	EN 1090-2, ISO 9001
Corrosion Resistance	Passes 1,000-hour salt spray test (ASTM B117), 50+ year service life

Application Scenarios

Industrial Facilities: Heavy machinery workshops, automotive plants, and manufacturing lines with forklift traffic.
Logistics & Warehousing: Mezzanine floors, loading docks, and distribution centers handling 20+ ton container loads.
Infrastructure Projects: Port terminals, railway bridges, and highway maintenance walkways.
Energy Sector: Power plant turbine halls, transformer stations, and mining site access platforms.

Key Features

2.5-ton point load rating exceeds standard industrial requirements

60° serrated surface (3mm height) reduces slip accidents by 70% in oily/wet environments

Compliance with EU structural standards (EN 1090) ensures eligibility for public tenders

Core Advantages

Safety Compliance: Meets OSHA 1910.29 (US), EN 14122 (EU), and AS/NZS 1657 (Australia) for industrial walkways.
Low Maintenance: Hot-dip galvanized coating eliminates need for regular painting, reducing lifecycle costs by 40%.
Modular Installation: Pre-fabricated panels with universal U-clips allow 50% faster setup than welded systems.
Global Adaptability: Customizable for extreme climates (e.g., -50°C Arctic-grade or 120°C heat-resistant coatings).

Frequently Asked Questions

Can this grating support heavy machinery movement?

Yes. The 2.5T point load capacity withstands forklifts, cranes, and industrial vehicles (verified by EN 1090-1 load tests).

How is the anti-slip surface maintained?

The serrated design is cold-formed into the steel, ensuring permanent slip resistance--no coatings to wear off.

What is the lead time for large orders?

Standard lead time is 15 working days; expedited production (7 days) available for orders ≥1,000m².

Production Process

High-Strength Steel Selection: Q355B steel billets tested for tensile strength (≥470 MPa) and impact resistance (27J at 20°C).
Precision Fabrication: CNC punching for 50×5mm bars, with 60° serrations cold-formed at 3mm height for consistent anti-slip performance.
Hot-Dip Galvanization: Zinc coating applied at 85-100μm thickness, with post-treatment to prevent white rust.
