Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction

Large Image : Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction

Product Details:

Place of Origin:	Anping,Hebei,China
Brand Name:	YUANHAI
Certification:	ISO 9001:2015
Model Number:	YH-08

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	US$2~10
Packaging Details:	steel pallet
Delivery Time:	according to your quantity
Payment Terms:	T/T
Supply Ability:	500 Ton/Tons per Month

Contact Now

Detailed Product Description

Production Name:	Perforated Wire Mesh	Key Word:	Perforated Sheet
Pass Design:	Round Hole And Long Strip Hole	Materials:	Aluminum,Stainless Steel
Margin:	1/2 Inch	Width:	36 Inch
Hole Diameter:	0.8mm - 25mm	Outline Size:	1.22*2.44m Or Can Be Customized
Normal Size:	1x1m ,1x2m ,1.2x2.4m ,1.22x2.44m ,ect .	Hole Pattern:	Slotted Hole
Weave Style:	CNC Punching	Corrosion Resistance:	High
Plate Thickness:	0.2-30mm	Colour:	Sliver,White,Green,Blue,Black,Etc
Highlight:	stainless steel perforated wire mesh , galvanized wire mesh for construction , durable perforated metal mesh

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction

Product Specifications

Attribute	Value
Production Name	Perforated Wire Mesh
Key Word	Perforated sheet
Pass Design	Round hole and long strip hole
Materials	Aluminum, Stainless Steel
Margin	1/2 inch
Width	36 inch
Hole Diameter	0.8mm - 25mm
Outline Size	1.22*2.44m or can be customized
Normal Size	1x1m, 1x2m, 1.2x2.4m, 1.22x2.44m, etc.
Hole Pattern	Slotted Hole
Weave Style	CNC Punching
Corrosion Resistance	High
Plate Thickness	0.2-30mm
Colour	Silver, White, Green, Blue, Black, etc.

Product Description

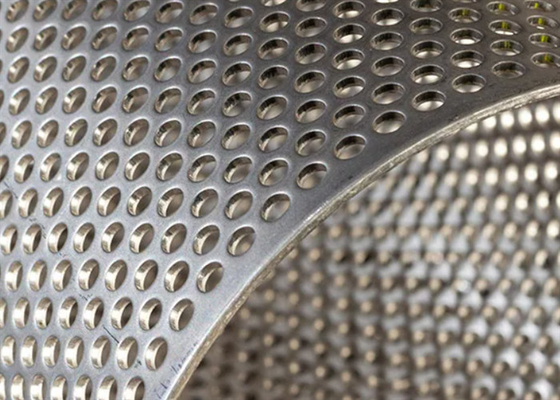

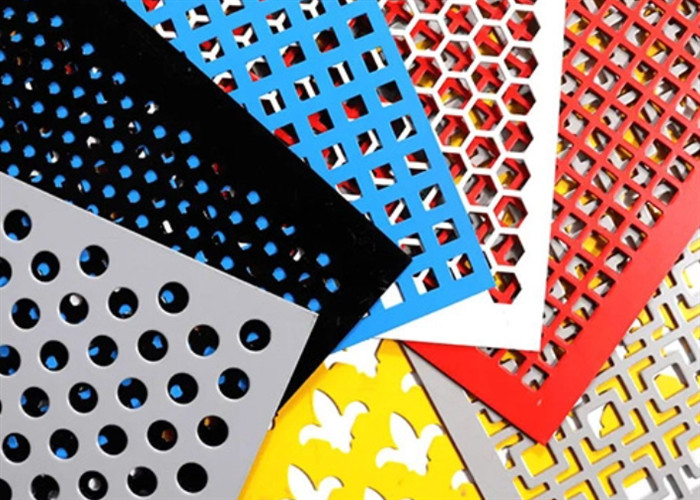

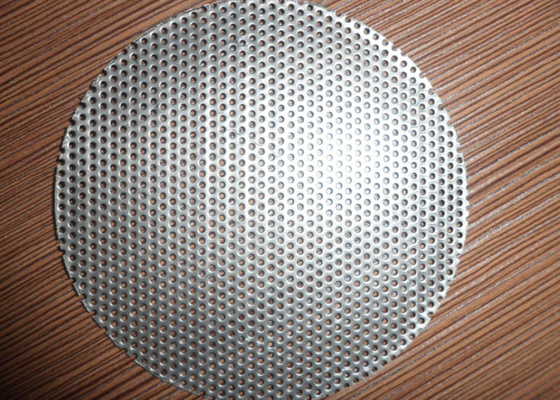

Perforated metal is sheet metal that has been mechanically stamped or punched to create a pattern of holes. These holes can be various shapes and sizes, and are spaced to allow for a wide range of open areas. This makes it a versatile material for numerous applications, including architectural design, filtration, ventilation, and sound dampening.

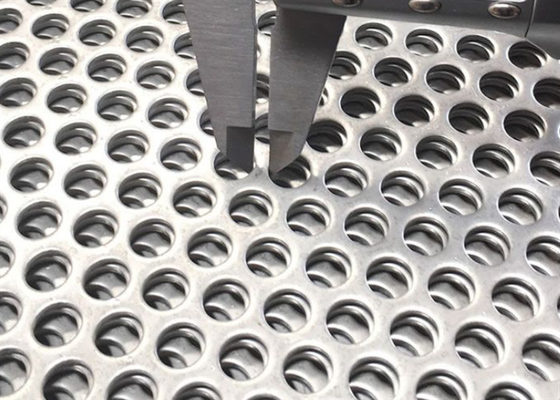

We supply perforated metal in sheet and coil forms with various hole sizes and can cut to size as per customers' specific requirements. The round hole perforation is the most popular type of perforated pattern. Perforated metal is described by the hole size and the pitch (the distance from the center of one hole to the center of the adjacent holes). All our perforated sheets are on a triangular pitch.

Technical Specifications

Plate material	Thickness of metal(mm)	Hole Dia.(mm)	Pitch(mm)	Sheet Width(mm)	Sheet Length(mm)	Porosity	Weight
Rolling plate	0.2	6	2	1	20	44	0.88
Rolling plate	0.35	5	4	1	20	24	2
Rolling plate	0.45	6	3	1	20	35	2.5
Rolling plate	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
Flat plate	0.55	1.1	1.2	1	2	22.67	3.411
Flat plate	0.55	1.5	2.8	1	2	26.03	3.268
Flat plate	0.8	1.5	1.5	1	2	19.6	5
Flat plate	0.8	2.0	3.4	1	2	30.78	4.465
Flat plate	1.5	2	2	1	2	19.6	9.4
Flat plate	1.5	5.0	8	1	2	35.39	7.843
Flat plate	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
Stainless steel plate	0.8	1.5	1.5	1	2	19.6	5
Stainless steel plate	1	2	2	1	2	19.6	6.28
Stainless steel plate	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
Aluminum plate	0.8	3	3	1	2	19.6	1.72
Aluminum plate	1.6	2	2	1	2	19.6	3.24
