Product Details:
Payment & Shipping Terms:
|
Product Name: | Razor Barbed Wire | Key Word: | Single Coil Concertina Razor Barbed Wire |
---|---|---|---|
Razor Blade Style: | BTO-22/BTO-11/BTO-30/CBT-60/CBT-65 | Outer Diameter: | 2*1*0.5 |
Core Wire Diameter: | 2.5mm-3.0mm | Blade Space: | 34±1mm |
Blade Width: | 13mm-20mm | Razor Barbed Type: | Cross Razor |
Depth: | 1.5-2.5mm,2.0mm,1.5mm,0.9,300-600mm | Wire Gauge: | 12-1/2x14 BWG |
Coil Outside Diameter: | 500mm | Colors: | Green Or Silver |
Port: | Tianjin | Packing: | Coil, Pallet, Or As Per Customer's Request |
Highlight: | stainless steel razor barbed wire,farm fencing barbed wire roll,BTO-22 barbed wire with warranty |
Attribute | Value |
---|---|
Product Name | Razor Barbed Wire |
Key Word | Single Coil Concertina Razor Barbed Wire |
Razor Blade Style | BTO-22/BTO-11/BTO-30/CBT-60/CBT-65 |
Outer Diameter | 2*1*0.5 |
Core Wire Diameter | 2.5mm-3.0mm |
Blade Space | 34±1mm |
Blade Width | 13mm-20mm |
Razor Barbed Type | Cross Razor |
Depth | 1.5-2.5mm,2.0mm,1.5mm,0.9,300-600mm |
Wire Gauge | 12-1/2x14 BWG |
Coil Outside Diameter | 500mm |
Colors | green or silver |
Port | Tianjin |
Packing | Coil, pallet, or as per customer's request |

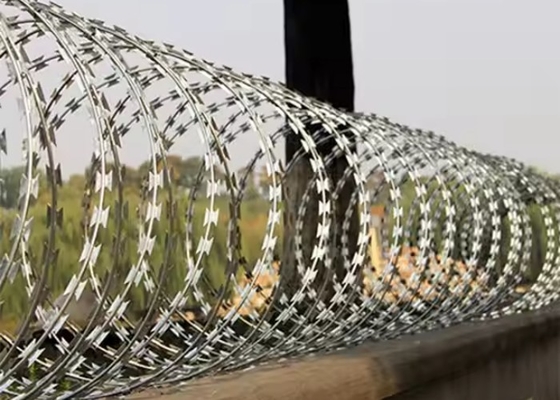

Barbed wire, also known as barbed tape or razor wire, is a type of metal wire used for boundary protection. The main feature of barbed wire is the sharp barbs evenly distributed along the wire, which are used to deter people or animals from crossing the boundary.

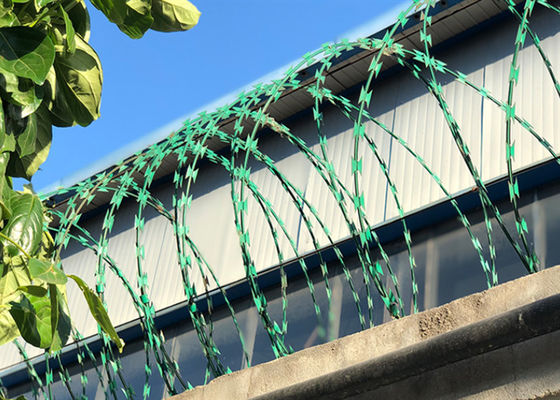

Flat wrap razor wire can use different blades. Razor Barbed Wire Application in Fence mainly serves in protecting of grass boundary, railway, highway and also widely used industry, agriculture, animal husbandry, dwelling house, plantation for fencing.

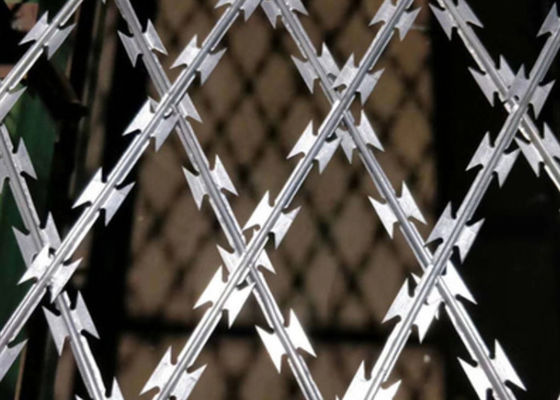

Flat warp razor wire is a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.
Reference Number | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
---|---|---|---|---|---|
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±1 |
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
---|---|---|---|---|
450 mm | 33 | 8m | CBT-65 | Single coil |
500 mm | 41 | 10m | CBT-65 | Single coil |
700 mm | 41 | 10m | CBT-65 | Single coil |
960 mm | 53 | 13m | CBT-65 | Single coil |
500 mm | 102 | 16m | BTO-10.15.22 | Cross type |
600 mm | 86 | 14m | BTO-10.15.22 | Cross type |
700 mm | 72 | 12m | BTO-10.15.22 | Cross type |
800 mm | 64 | 10m | BTO-10.15.22 | Cross type |
960 mm | 52 | 9m | BTO-10.15.22 | Cross type |
